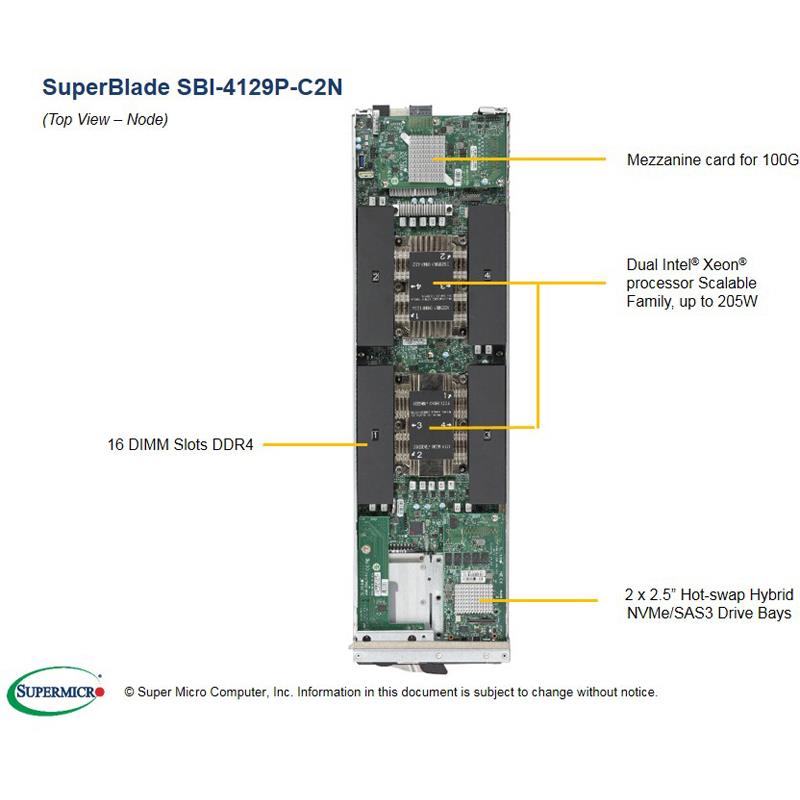

Supermicro SBI-4129P-C2N Blade Barebone Dual Processor Intel Xeon Scalable Processors 2nd Generation
Processor Blade Dual Socket 3647 for up to Dual Intel Xeon Scalable Processors 2nd Generation and Intel Xeon Scalable Processors, Skylake-SP with 3 SATA Drive or 2 SAS (8U/20 Blade)
This product is no longer available.
1. 200 CPUs per 42U Rack
2. Dual socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
3. Intel® C622 chipset
4. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
5. 2 Hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; up to 5 PCI-E x4 M.2
6. Dual 10G onboard
7. IPMI 2.0, KVM over IP, Virtual Media over LAN
8. Graphics: Aspeed AST2500 BMC
Extra Specifications for Supermicro SBI-4129P-C2N Blade Barebone Dual Processor Intel Xeon Scalable Processors 2nd Generation
| Motherboard | ||
| Motherboard | Super B11DPT-P | |
| Processor/Cache | ||
| CPU | Dual Socket P (LGA 3647) | |
| Support CPU TDP 70-205W | ||
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| System Memory | ||
| Memory Capacity | 16 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C622 chipset | |
| SAS | SAS3 mezz card | |
| Broadcom 3108 SAS3 (12Gbps) controller; HW RAID 0, 1 support; 2G Cache | ||
| Network Controllers | Dual 10G LAN with Intel® X722 | |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| Graphics | Aspeed AST2500 BMC | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| Dimensions | ||
| Height | 6.5" | |
| Width | 1.75" | |
| Depth | 23.5" | |
| Weight | 9.5 lbs (4.3 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| KVM button | ||
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| Connector | SUV (Serial/USB/Video) & KVM Connector | |
| Drive Bays | ||
| Hot-swap | 2 Hot-Plug 2.5" NVMe/SAS3/SATA3 drive bays | |
| M.2 | 1 PCI-E x4 M.2 and 4 PCI-E x4 M.2 via Mezzanine card | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| KVM | 1 Front Connector for SMCI KVM Card | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-B11DPT-P-O-P | 1 | Super B11DPT-P Motherboard | |
| Motherboard / Chassis | MCP-680-41001-0N | 1 | 4U 10 SuperBlade Processor Blade chassis | |
| Add-on Card / Module | AOM-B3108-H8-B11-P | 1 | SAS3108 mezz card for blade B11DPT | |
| Add-on Card / Module | AOM-SB410-01-P | 1 | Front Control Board with KVM connector for B11DPT, RoHS | |
| Hard Drive Tray | MCP-220-00145-0B | 2 | Black 2.5" NVMe Hard Drive Tray, orange button | |
| Air Shroud | MCP-310-41001-0N | 1 | Air shroud set for 4U 10-Blade |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 56.50 | 1 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 56.50 | 0 | TPM module (Vertical) TPM 1.2. | ||
| Heatsink / Retention | SNK-P0067PS | $ 52.00 | 1 | Heatsink for Intel CPU (up to 150W TDP) | ||
| Heatsink / Retention | SNK-P0067PSMB | $ 52.00 | 1 | Heatsink for Intel CPU (up to 150W TDP) | ||
| Heatsink / Retention | SNK-P0067PSW | $ 79.00 | 1 | Wide Heatsink for Intel CPU (up to 205W TDP) | ||
| Heatsink / Retention | SNK-P0067PSWM | $ 74.50 | 1 | Wide Heatsink for Intel CPU (up to 205W TDP) | ||
| AOC | AOC-VROCPREMOD | $ 344.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| AOC | AOC-VROCSTNMOD | $ 176.00 | 0 | Intel VROC HW key (RSTe) standard upgrade module | ||
| AOC | AOC-VROCINTMOD | 0 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Networking | AOC-IBH-X4ES-B | $ 895.00 | 1 | Mezzanine card, InfiniBand EDR Single Port based on ConnectX-4 | ||
| Networking | AOC-OPH-WFR-O | 0 | Omni-path mezzanine card, 100Gbps link speed | |||
| Networking | AOC-B25G-X4D-B | $ 200.00 | 0 | 2-port 25GbE Mezzanine Card (Mellanox ConnectX-4 Lx EN) | ||
| Battery Backup Kit | BTR-TFM8G-LSICVM02 | $ 275.00 | 1 | Broadcom Supercap w/ 8GB CV + 24'' cable (whole kit) | ||
| Battery Backup Kit | MCP-120-41001-0N | 1 | Broadcom Supercap bracket include screw, same size as 2.5" HDD | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Add-on Card / Module | AOM-B-4M | $ 70.50 | 1 | 4 x M.2 NVMe mezzanine card, 4x 110(80) |
