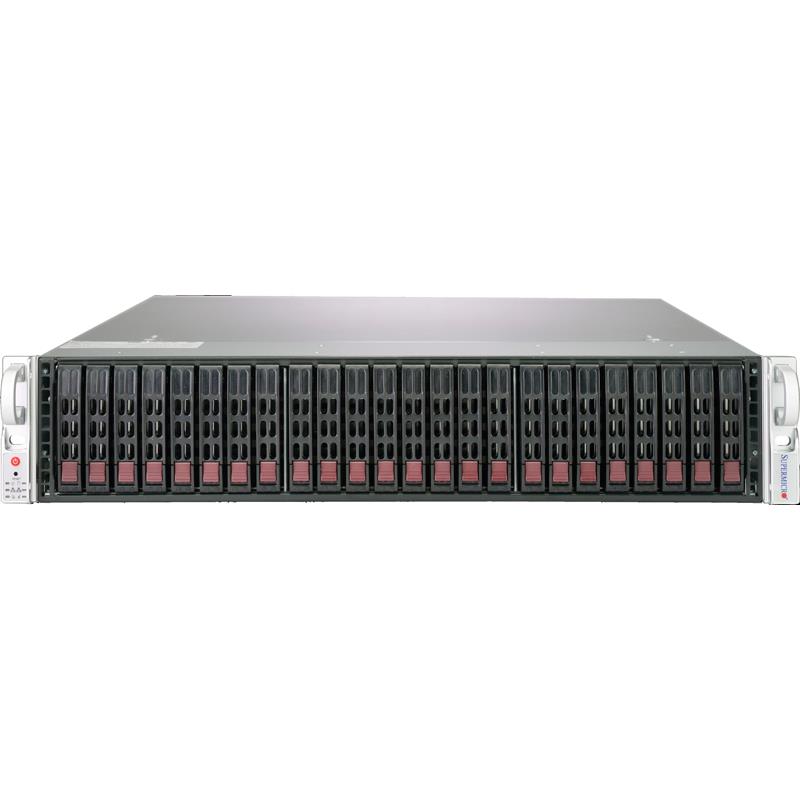

Supermicro SSG-2029P-E1CR24L 2U Storage Barebone Dual Processor
• Corporate Database
• Database Processing & Storage
• Enterprise Server
• HPC, Data Center
• iSCSI SAN
Barebone 2U Rackmount SuperServer, Dual Intel Xeon Scalable Processors Gen. 2, Intel C624 chipset, Up to 4TB DDR4 ECC 2933MHz memory, Broadcom 3008 SAS3 AOC, 24 Hot-swap 2.5in drive bays, Dual 10GBase-T LAN ports, Redundant 1200W Power Supply (CSE-216BE1C4-R1K23LPB + MBD-X11DPH-T)
This product is no longer available.
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port)
4. 24 Hot-swap 2.5" SAS3/SATA3 drive bays including 4 optional NVMe drives; 2 Hot-swap 2.5" SATA3 drive bays (rear), 2x M.2 NVMe. Expander based backplane.
5. Broadcom 3008 SAS3 AOC
6. 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 3 Hot-swap 8cm redundant PWM fans
9. 1200W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SSG-2029P-E1CR24L 2U Storage Barebone Dual Processor
| Motherboard | ||
| Motherboard | Super X11DPH-T | |
| System Memory | ||
| Memory Capacity | 16 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C622 chipset | |
| SAS | SAS3 (12Gbps) via Broadcom 3008 AOC | |
| Broadcom 3008 controller | ||
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Network Controllers | Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |
| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| USB | 4 USB 3.0 ports (rear) | |
| 1 Type A | ||
| Video | 1 VGA port | |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header | |
| System BIOS | ||
| BIOS Type | 256Mb AMI UEFI | |
| Management | ||
| Software | NMI | |
| Watchdog | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-216BE1C4-R1K23LPB | |
| Dimensions | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 24.8" (630mm) | |
| Gross Weight | 61 lbs (27.7 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | System Information LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Power status LED | ||
| Power fail LED | ||
| Expansion Slots | ||
| PCI-Express | 3 PCI-E 3.0 x16 slot | |
| 4 PCI-E 3.0 x8 slots | ||
| Slot 2 & 3 occupied by controller and JBOD Expansion Port | ||
| Drive Bays | ||
| Hot-swap | 24 Hot-swap 2.5" SAS3/SATA3 drive bays | |
| 2 Hot-swap 2.5" SATA3 drive bays (rear) | ||
| Optional | 2 Optional Onboard NVMe M.2 | |
| Backplane | ||
| Backplane | Expander based backplane | |
| System Cooling | ||
| Fans | 3 Hot-swap 8cm redundant PWM cooling fans | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W/1200W | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 100-127Vac / 15-12A / 50-60Hz | |
| 200-240Vac / 8.5-7A / 50-60Hz | ||
| 200-240Vdc / 8.5-7A (for CCC only) | ||
| +12V | Max: 83A / Min: 0A (100-127Vac) | |
| Max: 100A / Min: 0A (200-240Vac) | ||
| Max: 100A / Min: 0A (200-240Vdc) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | 19 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Support CPU TDP 70-205W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| Product SKUs | ||
| Product SKUs | SuperStorage 2029P-E1CR24L (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPH-T | 1 | Super X11DPH-T Motherboard | |
| Motherboard / Chassis | CSE-216BE1C4-R1K23LPB | 1 | 2U Chassis | |
| Add-on Card / Module | AOM-SAS3-8I8E-LP | 1 | 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket,HF,RoHS/REACH | |
| Backplane | BPN-SAS3-216EL1-N4 | 1 | 24-port 2U SAS3 12Gbps single-expander backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices | |
| Cable 1 | CBL-0099 | 1 | Power extension cable; one HDD to two HDD and two FDD. 35/25/12cm. 22AWG | |
| Cable 2 | CBL-SAST-0532 | 4 | MINI SAS HD,12G,INT,50CM,30AWG | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Parts | MCP-220-82616-0N | 1 | 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B) | |
| Heatsink / Retention | SNK-P0068PS | 1 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Heatsink / Retention | SNK-P0068PSC | 1 | 2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| * Power Supply | PWS-1K23A-1R | 2 | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH | |
| * Power Distributor | PDB-PT216-2824 | 1 | PDB with 23pairs input connectors for SC216B | |
| * Cable 3 | CBL-0071L | 1 | CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG | |
| * Cable 4 | CBL-0088 | 3 | 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM) | |
| * Cable 5 | CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) | |
| * Cable 6 | CBL-0182L | 1 | 4 pin to 4 pin power extension .HDD to RA,40cm. 20AWG | |
| * Cable 7 | CBL-0217L | 1 | CBL,CNTL PANEL CONVERTER,FOR SC826/846,FFC,16PIN,22CM | |
| * FAN 1 | FAN-0158L4 | 3 | 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH | |
| * Front Panel | FPB-FP826-D | 1 | Front control board Dual color LED(FP826-D)forSC826,213,216,219 | |
| * Drive Tray(s) | MCP-220-00047-0B | 24 | Black gen 3rd hot-swap 2.5inch HDD tray | |
| * Rear Window | MCP-240-82608-0N | 1 | 216B/826B LP rear window,RoHS/REACH,PBF | |
| * Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2";W | |
| * Drive Tray(s) | MCP-290-82607-0N | 1 | 826B/216B rear dummy cover for 2 X 2.5 | |
| * Air Shroud | MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 | |
| * Rail Set | MCP-410-00007-0N | 1 | Rail screw bag | |
| * Front Panel | TB826 | 1 | Front panel adaptor board (TB826) forSC826,213,216,219 |
