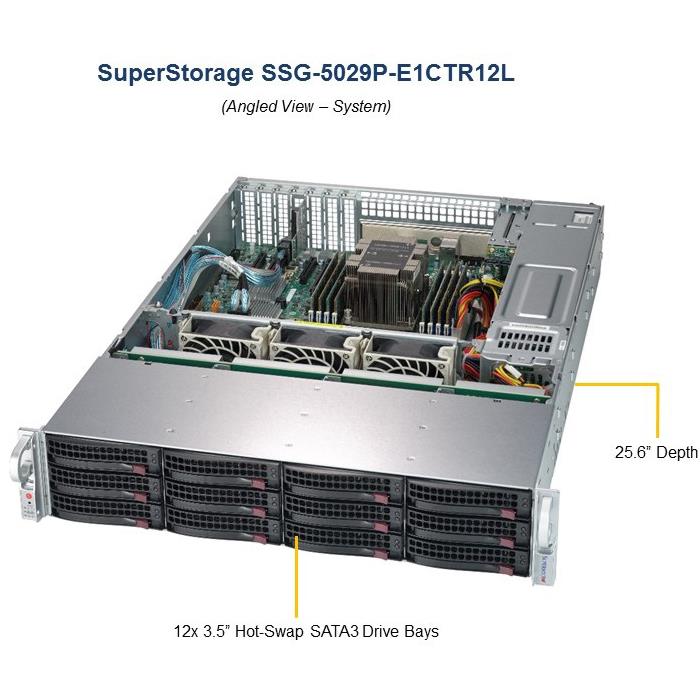

Supermicro SSG-5029P-E1CTR12L 2U Storage Barebone Single Processor
• Application and data serving
• Connectivity/Storage Compute Nodes
• High Availability Storage Appliance Platform
Barebone 2U Rackmount SuperServer, Single Intel Xeon Scalable Processors Gen. 2, Intel C622 chipset, Up to 2TB DDR4 ECC 2933MHz memory, SAS3 via Broadcom 3008 controller, 12 Hot-swap 3.5in drive bays, Dual 10GBase-T LAN ports, Redundant 800W Power Supply (CSE-826BE1C-R802LPB + MBD-X11SPH-nCTF)
1. Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake) ‡
2. 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
4. 2x 10GBase-T with Intel® X557
5. 12 Hot-swap 3.5" SAS/SATA drive bays with SES3; 2 Hot-swap 2.5" NVMe/SATA (rear, optional)
6. SAS3 via Broadcom 3008 controller
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 3 High-performance 80mm PWM fans
9. 800W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SSG-5029P-E1CTR12L 2U Storage Barebone Single Processor
| Motherboard | ||
| Motherboard | Super X11SPH-nCTF | |
| System Memory | ||
| Memory Capacity | 8 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 2TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C622 chipset | |
| SATA | RAID 0, 1, 5, 10 support | |
| SATA3 (6Gbps) via C622 controller | ||
| SAS | SAS3 (12Gbps) via Broadcom 3008 | |
| SW RAID 0, 1, 10 | ||
| Network Controllers | Dual LAN with 10GBase-T with Intel® X722 + X557 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| USB | 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) | |
| 8 USB 2.0 ports (2 rear + 6 headers) | ||
| VGA | 1 VGA port | |
| Serial Port / Header | 2 COM Ports (1 rear, 1 header) | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SPM , SUM | ||
| Power Configurations | ACPI Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-826BE1C-R802LPB | |
| Dimensions | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 25.6" (648mm) | |
| Package | 11.5" (H) x 26.5" (W) x 34" (D) | |
| Weight | Gross Weight: 58 lbs (26.3 kg) | |
| Net Weight: 34 lbs (15.4 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | System Information LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Power status LED | ||
| Power fail LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x16 | |
| 1 PCI-E 3.0 x8 | ||
| 1 PCI-E 2.0 x4 (in x8) | ||
| M.2 | Form Factor: 2280 | |
| Key: M-Key | ||
| Double Height Connector | ||
| 1x M.2 Interface: PCI-E 3.0 x4 and SATA | ||
| Drive Bays / Storage | ||
| Hot-swap | 12 Hot-swap 3.5" SAS/SATA drive bays with SES3 | |
| Optional | 2 Hot-swap 2.5" NVMe/SATA drive bays (rear) | |
| Backplane | ||
| Backplane | SAS3 Backplane: SAS3 12Gbps single expander backplane, w/ LSISAS3x28 expander, support 12x 3.5" drives, with 4x mini-SAS HD connectors, 2 for uplink and another 2 for downlink | |
| System Cooling | ||
| Fans | 3 High-performance 80mm PWM fans | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 800W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 240Vac | |
| 800W: 200 – 240Vdc | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 800W: 100-240Vac / 50-60Hz | |
| 800W: 200-240Vdc | ||
| +12V | Max: 66A / Min: 0A (100-240Vac) | |
| Max: 66A / Min: 0A (200-240Vdc) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | Gold Finger | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Processor | ||
| CPU | Single Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ | ||
| Support CPU TDP 70-205W * | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| * Certain high frequency optimized CPU are not supported, such as Intel Gold 6250 and 6256. Please contact Supermicro Technical Support for additional information. | ||
| Product SKUs | ||
| Product SKUs | SuperStorage 5029P-E1CTR12L (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SPH-nCTF | 1 | Super X11SPH-nCTF Motherboard | |
| Motherboard / Chassis | CSE-826BE1C-R802LPB | 1 | 2U Chassis | |
| Add-on Card / Module | AOM-SAS3-8I8E-LP | 1 | 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket,HF,RoHS/REACH | |
| Backplane | BPN-SAS3-826EL1 | 1 | 12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-SAST-0532 | 2 | MINI SAS HD,12G,INT,50CM,30AWG | |
| Cable 2 | CBL-SAST-0568 | 2 | MINI SAS HD,12G,INT,35CM,30AWG | |
| Parts | MCP-260-00109-0N | 1 | Standard I/O Shield for X11SPM-TF with EMI Gasket | |
| Manual | MNL-1991-QRG | 1 | 5029P-E1CR12L Quick Reference Guide | |
| Heatsink / Retention | SNK-P0068PS | 1 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Power Supply | PWS-802A-1R | 2 | 1U 800W 100-240Vac/47-63Hz, and DC240 input | |
| FAN 1 | FAN-0158L4 | 3 | 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH | |
| Drive Tray(s) | MCP-220-00075-0B | 12 | Black 3.5" HDD tray |
