| Motherboard |
| Motherboard | Super X11DPH-T |
| System Memory |
| Memory Capacity | 16 DIMM slots |
| Supports Intel® Optane™ DCPMM †† |
| Up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM |
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. |
| On-Board Devices |
| Chipset | Intel® C622 chipset |
| SAS | RAID 0, 1, 5, 6, 10, 50, 60 |
| SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Controllers | Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | ASPEED AST2500 BMC |
| Input / Output |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2 RJ45 10GBase-T LAN ports |
| USB | 4 USB 3.0 ports (rear) |
| 1 Type A |
| Video | 1 VGA port |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header |
| System BIOS |
| BIOS Type | 256Mb AMI UEFI |
| Management |
| Software | NMI |
| Watchdog |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SPM , SUM |
| PC Health Monitoring |
| CPU | 4+1 Phase-switching voltage regulator |
| Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-826BE1C4-R1K23LPB |
| Dimensions |
| Width | 17.2" (437mm) |
| Height | 3.5" (89mm) |
| Depth | 24.8" (630mm) |
| Gross Weight | 61 lbs (27.7 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | System Information LED |
| Network activity LEDs |
| Hard drive activity LED |
| Power status LED |
| Power fail LED |
| Expansion Slots |
| PCI-Express | 3 PCI-E 3.0 x16 slot |
| 4 PCI-E 3.0 x8 slots |
| Slot 3 occupied by controller |
| Drive Bays |
| Hot-swap | 2 Hot-swap 2.5" SATA3 drive bays (rear) |
| 12 Hot-swap 3.5" SAS3/SATA3 drive bays |
| Optional | 4x U.2 NVMe |
| 2x M.2 NVMe |
| Backplane |
| Backplane | Expander based backplane |
| System Cooling |
| Fans | 3 Hot-swap 8cm redundant PWM cooling fans |
| Power Supply (76mm Width) |
| Power Supply (76mm Width) | 1200W Redundant Power Supplies with PMBus |
| Total Output Power | 1000W/1200W |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| Input | 100-127Vac / 15-12A / 50-60Hz |
| 200-240Vac / 8.5-7A / 50-60Hz |
| 200-240Vdc / 8.5-7A (for CCC only) |
| +12V | Max: 83A / Min: 0A (100-127Vac) |
| Max: 100A / Min: 0A (200-240Vac) |
| Max: 100A / Min: 0A (200-240Vdc) |
| +5Vsb | Max: 4A / Min: 0A |
| Output Type | 19 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Processor |
| CPU | Dual Socket P (LGA 3647) |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s |
| Support CPU TDP 70-205W |
| Cores | Up to 28 Cores |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
| Product SKUs |

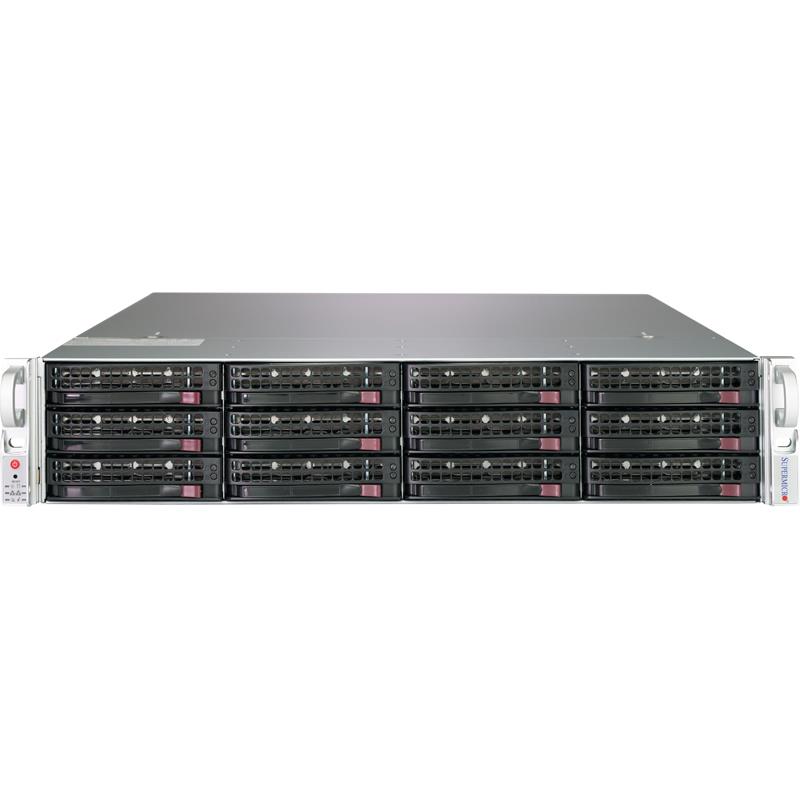

| Product SKUs | SuperStorage 6029P-E1CR12T (Black) |
