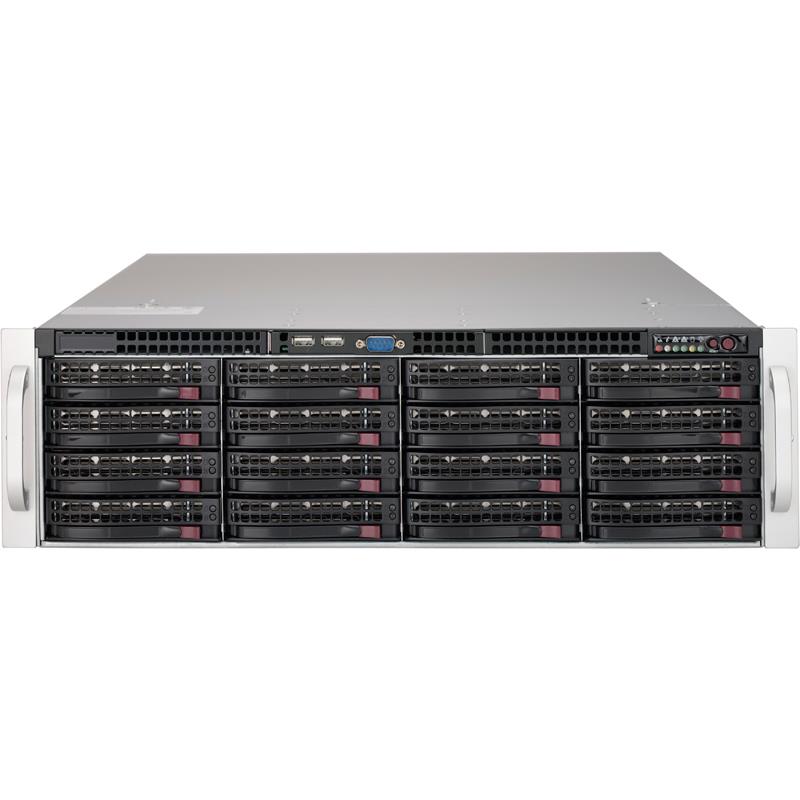

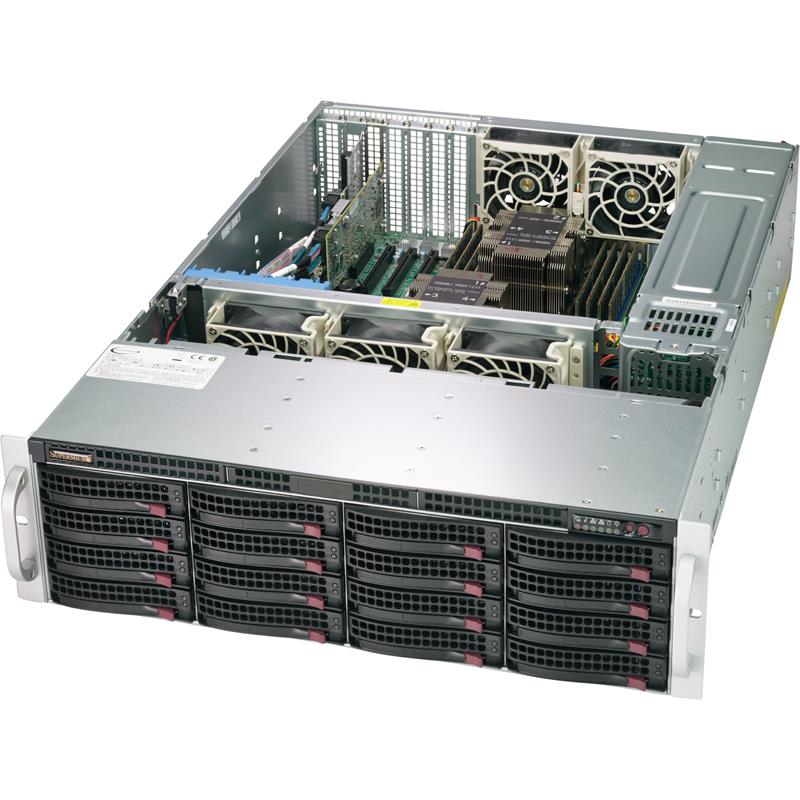

Supermicro SSG-6039P-E1CR16L 3U Storage Barebone Dual Processor

• SAS3 (12Gbps) Broadcom 3008 controller
• Up to 4TB DDR4-2933MHz; 16 DIMM slots
• Database Processing & Storage Applications
• 16 Hot-swap 3.5 SAS3/SATA3 direct attached drive

Barebone 3U Rackmount SuperServer, Dual Intel Xeon Scalable Processors Gen. 2, Intel C624 chipset, Up to 4TB DDR4 ECC 2933MHz memory, Broadcom 3008 SAS3 AOC, 16 Hot-swap 3.5in drive bays, Dual 10GBase-T LAN ports, Redundant 1200W Power Supply (CSE-836BE1C-R1K23B + MBD-X11DPH-T)


    2,282.00 2,282.00 2282.0 USD

    2,282.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • Broadcom 3008 SAS3 AOC
    • 1200W Redundant Power Supplies Titanium Level (96%)
    • 16 Hot-swap 3.5 SAS3/SATA3 direct attached drive bays
    • 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
    • Server remote management: IPMI 2.0/ KVM over LAN / Media over LAN
    • 3 Hot-swap 8cm redundant PWM cooling fans, 2 hot-swap 8cm rear exhaust PWM fans PWM fans
    • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port)
    • 16 DIMMs, up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane DCPMM
    • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)

    Extra Specifications for Supermicro SSG-6039P-E1CR16L 3U Storage Barebone Dual Processor

    Main Specifications
    Built-in Devices Super X11DPH-T
    Device Type SuperServer
    Dimensions (WxDxH) Width 17.2" (437mm) x Height 5.2" (132mm) x Depth 25.5" (648mm)
    Enclosure Color Black
    Form Factor 3U Rackmount - CSE-836BE1C-R1K23B
    Weight Gross Weight: 79 lbs (35.8 kg) - Net Weight: 48 lbs (21.8 kg)
    Processor / Memory
    Cores Up to 28 Cores
    Processors / Memory
    Cache Up to 28 Cores
    Compatible processors 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake), 3 UPI up to 10.4GT/s
    Compatible Socket Dual Socket P (LGA 3647)
    System Memory
    Memory Capacity 16 DIMM slots
      Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
      Supports Intel Optane DCPMM
    Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    On-Board Devices
    Chipset Intel C624 chipset
    Graphics ASPEED AST2500 BMC
    IPMI Support for Intelligent Platform Management Interface v.2.0
      IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Network Controllers Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
    SAS SAS3 (12Gbps) via Broadcom 3008 AOC
      Broadcom 3008 controller
    SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10
    Input / Output
    LAN 2 RJ45 10GBase-T LAN ports
      1 RJ45 Dedicated IPMI LAN port
    Serial Port / Header 1 Fast UART 16550 port / 1 Header
    USB 4 USB 3.0 ports (rear)
      1 Type A
    VGA 1 VGA port
    System BIOS
    BIOS Type 256Mb AMI UEFI
    Management
    Software Intel Node Manager, IPMI 2.0, NMI, SPM, SUM, SuperDoctor 5, Watchdog
    PC Health Monitoring
    CPU Monitors for CPU Cores, Chipset Voltages, Memory.
      4+1 Phase-switching voltage regulator
    FAN Fans with tachometer monitoring
      Status monitor for speed control
      Pulse Width Modulated (PWM) fan connectors
    Temperature Monitoring for CPU and chassis environment
      Thermal Control for fan connectors
    Front Panel
    Buttons Power On/Off button, System Reset button
    LEDs Power status LED, Hard drive activity LED, Network activity LEDs, System Overheat LED, Power fail LED
    Expansion / Connectivity
    Expansion Slots Total (Free) 3 PCI-E 3.0 x16 slot
      4 PCI-E 3.0 x8 slots
      Slot 2 & 3 occupied by controller and JBOD Expansion Port
    Drive Bays
    Hot-swap 16 Hot-swap 3.5" SAS3/SATA3 drive bays
    Optional 2 Optional Onboard NVMe M.2
    System Cooling
    Fans 3 Hot-swap 8cm redundant PWM cooling fans
      2 Hot-swap 8cm rear exhaust PWM fans
      Redundant cooling
    Power Supply
    Certification 80PLUS Titanium Level
    Power Supply 1200W Redundant Power Supplies with PMBus
    SAS / SATA Backplane
    SAS / SATA Backplane SAS3 12Gbps single expander backplane, w/ 16x SAS3 3.5" drive slots and 2x mini-SAS HD connectors for JBOD expansion
    Operating Environment / Compliance
    Operating Temperature Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
      Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
      Operating Relative Humidity: 8% to 90% (non-condensing)
      Non-operating Relative Humidity: 5% to 95% (non-condensing)
    RoHS RoHS Compliant
    Parts List - (Items Included)
    Add-On Card 1x AOM-SAS3-8I8E
    Backplane 1x BPN-SAS3-836EL1
    Cables 4x CBL-SAST-0531
    Fans 2x FAN-0125L4, 3x FAN-0158L4
    Heatsink / Retention 2x SNK-P0068PS
    Motherboard / Chassis 1x MBD-X11DPH-T / 1x CSE-836BE1C-R1K23B
    Parts 1x MCP-220-83608-0N, 1x MCP-260-00042-0N
    Power Supply 2x PWS-1K23A-1R
