- Supermicro SSG-6048R-E1CR45H 4U Storage Barebone Dual Processor

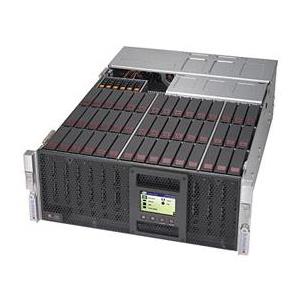

Supermicro SSG-6048R-E1CR45H 4U Storage Barebone Dual Processor
Barebone 4U Rackmount SuperServer, Dual E5-2600v3/v4 Intel Xeon Processors, Intel C612 chipset, Up to 3TB DDR4 ECC 2400Mhz memory, Broadcom 3108 SAS3, HW RAID, 45 Hot-swap 3.5in drive bays, SIOM support for flexible networking options, Redundant 1600W Power Supply (CSE-946LTS-R1K66P + MBD-X10DSC+)
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 12 HDDs and 1 NIC or SIOM card).
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family (up to 160W TDP)
2.Up to 3TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 24 DIMM slots
3. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
4. SIOM for flexible networking options
5. 45 Hot-swap 3.5" SAS3/SATA3 drive bays; 2 rear Hot-swap 2.5" SATA drive bays; optional 6 NVMe bays
6. Broadcom 3108 SAS3, HW RAID
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 5 hot-swap 8cm redundant PWM fans PWM fans
9. 1600W Redundant Power Supplies Platinum Level (94%+) Certified
10. Front 3.5" LCD display
Extra Specifications for Supermicro SSG-6048R-E1CR45H 4U Storage Barebone Dual Processor
| Motherboard | ||
| Motherboard | Super X10DSC+ | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 24x 288-pin DDR4 DIMM slots | |
| Up to 3TB † ECC 3DS LRDIMM, 768 ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SAS | Broadcom 3108 SAS3, HW RAID | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | SIOM support for flexible networking options | |
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| VGA | 1 VGA port | |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header | |
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-946LTS-R1K66P | |
| Dimensions and Weight | ||
| Width | 17.2" (437mm) | |
| Height | 7" (178mm) | |
| Depth | 26" (660mm) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | System Information LED | |
| Hard drive activity LED | ||
| 2 Network activity LEDs | ||
| Power status LED | ||
| Power fail LED | ||
| LCD | 3.5" TFT LCD panel | |
| Full-Color display with 320x480 pixels | ||
| Real-time system status from IPMI | ||
| Easy read graphical User Interface | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 slots | |
| 1 PCI-E 3.0 x8 slot | ||
| Drive Bays | ||
| Hot-swap | 45 Hot-swap 3.5" SAS3/SATA3 drive bays | |
| 2 Rear Hot-swap 2.5" SATA drive bays | ||
| Optional | 6 NVMe bays (optional) | |
| Backplane | ||
| Backplane | SAS3/SATA3 single expander per backplane | |
| System Cooling | ||
| Fans | Redundant cooling | |
| 5 Hot-swap 80mm rear exhaust cooling fans | ||
| Power Supply | ||
| Power Supply | 1600W 1U Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 127Vac | |
| 1600W: 200 – 240Vac | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| Input | 100-127Vac / 12.9A Max / 50-60Hz | |
| 200-240Vac / 9.5A Max / 50-60Hz | ||
| +12V | Max: 82A / Min: 0.1A (100-127Vac) | |
| Max: 132A / Min: 0.1A (200-240Vac) | ||
| 12V SB | Max: 2A / Min: 0.2A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Platinum Level | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperStorage 6048R-E1CR45H (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DSC+ | 1 | Super X10DSC+ Motherboard | |
| Motherboard / Chassis | CSE-946LTS-R1K66P | 1 | 4U Chassis | |
| Rear Window | MCP-240-94601-0N | 0 | SC946S rear window w/ 3x LP slots for X10DSC+ | |
| Rear Window | MCP-290-00132-0N | 0 | SIOM dummy cover for 226S/826S/946S | |
| Add-on Card / Module | AOM-S3108M-H8L-P | 1 | sas3 roc mez for X10dsc | |
| Backplane | BPN-SAS3-826TQ-B2B | 1 | 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Backplane | BPN-SAS3-946LEL1 | 1 | 45-port 4U SC946L Top-load SAS3 12Gbps expander backplane, support up to 45x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-0481L | 2 | SATA,INT,ROUND,ST-ST,81CM,30AWG | |
| Cable 2 | CBL-CDAT-0728 | 1 | 4 Pin to 4 Pin I2C cable, 65cm, 26AWG, 4 wires, pinout 1-1, for vpp header(jnvi2c1),RoHS/REACH | |
| Cable 3 | CBL-PWCD-0578 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG | |
| Cable 4 | CBL-PWEX-0862 | 1 | Powerlug to 5.7 Radsok, black 12AWG, 53cm for SC946S | |
| Cable 5 | CBL-PWEX-0863 | 1 | Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S | |
| Cable 6 | CBL-PWEX-1024 | 1 | Powerlug to 5.7 Radsok, black 12AWG, 45cm,RoHS | |
| Cable 7 | CBL-SAST-1006-1 | 2 | SLIMLINE SAS3, INT, 50CM 32AWG,RoHS | |
| Heatsink / Retention | SNK-P0048PS | 2 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB | |
| * Power Supply | PWS-1K66P-1R | 2 | 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF | |
| * Power Distributor | PDB-PT946S-824 | 1 | standard 24pin output | |
| * Cable 8 | CBL-0087 | 1 | CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM | |
| * Cable 9 | CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) | |
| * Cable 10 | CBL-0303L | 1 | 4 pin to 4 pin power cable, S-RA, 40CM. 20AWG | |
| * Cable 11 | CBL-0459L | 2 | LATCH CLAMP,AC POWER CORD | |
| * Cable 12 | CBL-0481L | 2 | SATA,INT,ROUND,ST-ST,81CM,30AWG | |
| * Cable 13 | CBL-CDAT-0841 | 1 | 8 pin to 8 pin round SGPIO cable, 81cm, 28AWG, pinout 1-1 | |
| * FAN 1 | FAN-0184L4 | 5 | 80x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Chassis (60-bay) | |
| * Front Panel | FPB-FP829H | 1 | Front Control Board for SC829H chassis | |
| * Drive Tray(s) | MCP-220-00117-0B | 2 | Black gen-3 hot-swap tool-less 2.5- inch HDD tray | |
| * Drive Tray(s) | MCP-220-94601-0N | 45 | SC946ED 3.5\" / 2.5\" tool-less HDD tray | |
| * Rail Set | MCP-290-00150-0N | 1 | Rail set, Auto-latch, quick/quick, default 4U 17.2 |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3108 Cache Protection | BTR-CV3108-U1 | $ 330.50 | 0 | Broadcom 3108 CacheVault kit (ROHS, Reach) | ||
| NVME kit (Full kit needed) | AOC-SLG3-2E4RMCP-220-94607-0NCBL-SAST-0818CBL-SAST-0850 | 1142 | NVMe AOC | |||
| NVME kit (Full kit needed) | - | 0 | SC946S NVMe kits w/ cage, tray, cable, BPN (no NVMe cable)OCuLink v.91,INT,PCIe NVMe SSD, 55CM,34AWG | |||
| NVME kit (Full kit needed) | - | 0 | OCuLink to MiniSAS HD V.91, INT, PCIe NVMe SSD, 37CM, 15D15F7D, 34AWG | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| SIOM Network Card(s) | AOC-MGP-I2 | $ 75.00 | 0 | SIOM 2-port GbE, Intel i350-AM2 | ||
| SIOM Network Card(s) | AOC-MGP-I4 | $ 98.50 | 0 | SIOM 4-port GbE, Intel i350-AM4 | ||
| SIOM Network Card(s) | AOC-MTG-I2T | $ 236.00 | 0 | SIOM 2-port 10GBase-T, Intel X550 | ||
| SIOM Network Card(s) | AOC-MTG-I4T | $ 406.50 | 0 | SIOM 4-port 10GBase-T, Intel X550 | ||
| SIOM Network Card(s) | AOC-MTGN-I2S | $ 226.00 | 0 | SIOM 2-port 10G SFP+, Intel 82599ES | ||
| SIOM Network Card(s) | AOC-MTG-I4S | $ 226.50 | 0 | SIOM 4-port 10G SFP+, Intel XL710 |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
