Supermicro SSG-927R-E2CJB Server Chassis 2U Rackmount
Efficient Power: 1200W Titanium Power Supply with PMbus
High-Speed Connectivity: 12Gb SAS3 HDD support, Redundancy dual ported SAS architecture
High-Density Storage: 24 Hot-swap 2.5" Drive Bays shared between JBOD nodes SAS drives recommended
Chassis 2U Rackmount SuperStorage, 2 Hot-pluggable nodes, 24 Hot-swap 2.5in drive bays, IPMI 2.0 with dedicated LAN, Redundant 1200W Power Supply (CSE-927ETS-R0JNDBP-X10)
Two hot-pluggable systems (nodes) in a 2U form factor.
1. High Availability Storage Appliance Platform

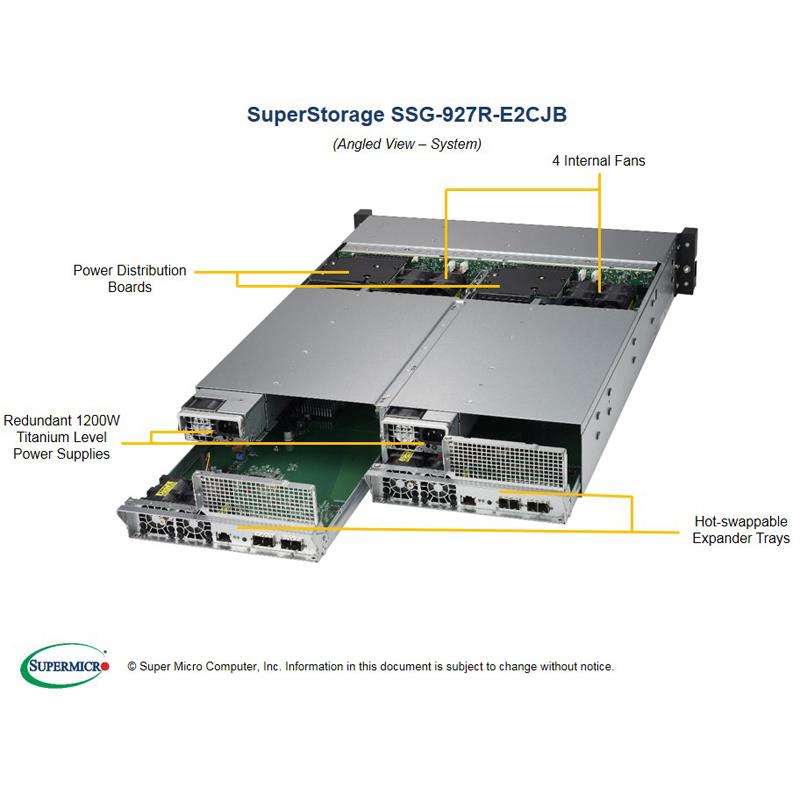

2. Redundant Hot-swap expander trays

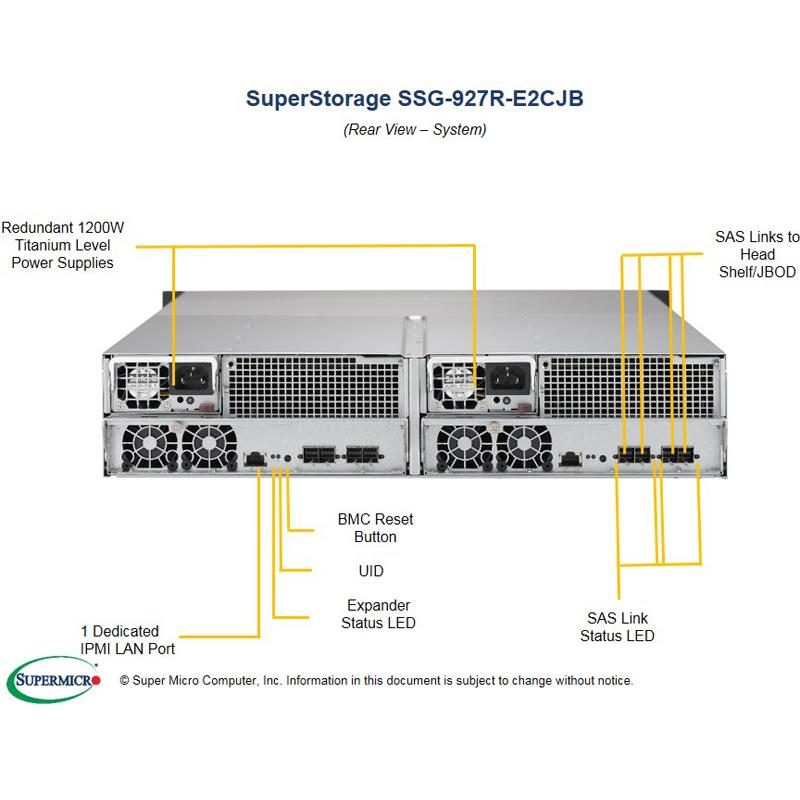

3. 4 SAS3.0 IO ports

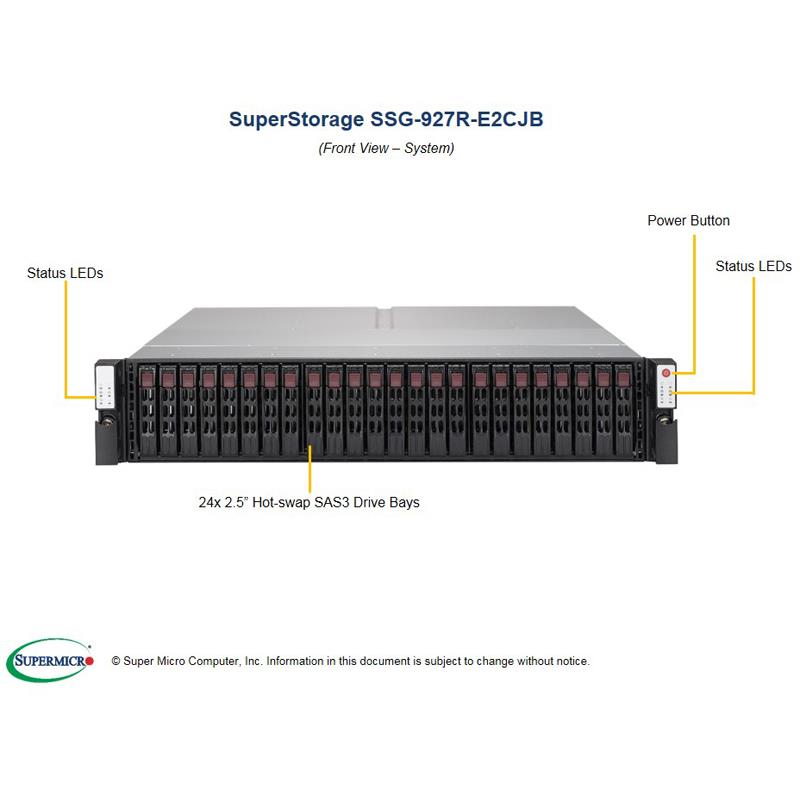

4. 24 Hot-swap 2.5" Drive Bays
5. IPMI 2.0 with dedicated LAN
6. 8x 40mm cooling fans
7. 1200W Redundant Power Supplies Titanium Level Certified
Extra Specifications for Supermicro SSG-927R-E2CJB Server Chassis 2U Rackmount
| Add-on Module | ||
| Add-on Module | 2x AOM-SAS3-927EL-JB | |
| Drive Bays | ||
| Hot-swap | 24 Hot-swap 2.5" Drive Bays shared between JBOD nodes | |
| SAS drives recommended | ||
| Expander | ||

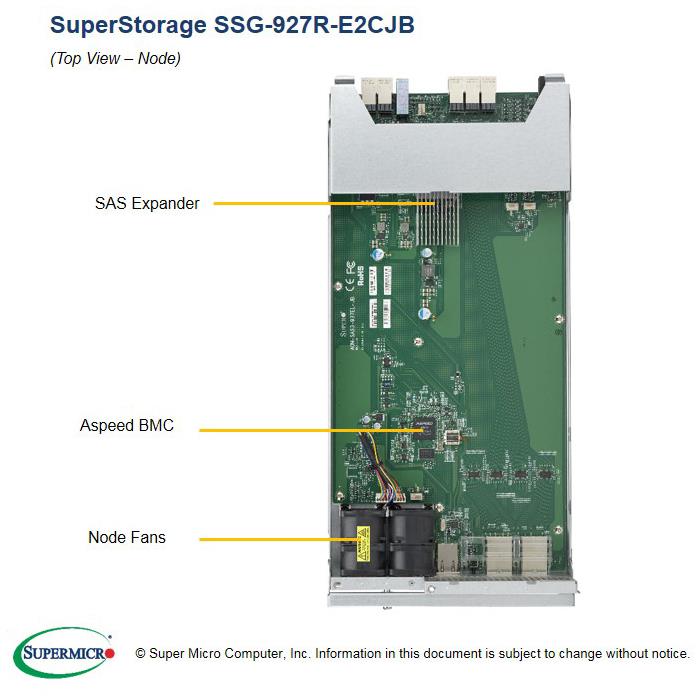

| Expander | AOM-SAS3-937EL-JB, features: 12Gb SAS3 HDD support Redundancy dual ported SAS architecture Robust AirMax server node connections (SBB specification) | |
| On-Board Devices | ||
| SAS | SAS3 (12Gbps) via AOM-SAS3-937EL-JB | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED | |
| Hard Drive Activity LED | ||
| System Information LED | ||
| Power Fail LED | ||
| 2 SAS link Activity LED | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-927ETS-R0JNDBP-X10 | |
| Dimensions | ||
| Height | 3.5" (88mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.5" (648mm) | |
| System Cooling | ||
| Fans | 8x 40mm cooling fans | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W/1200W | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 100-127Vac / 15-12A / 50-60Hz | |
| 200-240Vac / 8.5-7A / 50-60Hz | ||
| 200-240Vdc / 8.5-7A (for CCC only) | ||
| +12V | Max: 83A / Min: 0A (100-127Vac) | |
| Max: 100A / Min: 0A (200-240Vac) | ||
| Max: 100A / Min: 0A (200-240Vdc) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | 19 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperStorage 927R-E2CJB (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Add-on-module / Chassis | AOM-SAS3-927EL-JB | 1 | Super AOM-SAS3-927EL-JB | |
| Add-on-module / Chassis | CSE-927ETS-R0JNDBP-X10 | 1 | 2U Chassis | |
| Add-on Card / Module | AOM-SAS3-927EL-JB-P | 2 | SAS3 Expander card support SBB 2U JBOD system, for 24x 2.5-inch SAS3/SAS2/SATA3 drives | |
| Backplane | BPN-SAS3-927-N4 | 1 | 24-port 2U SBB SAS3 12Gbps midplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices | |
| Cable 1 | CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) | |
| Cable 2 | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Fan | FAN-0157L4 | 8 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH | |
| Tray(s) | MCP-220-92701-0N | 24 | Drive trays support 2.5" SAS HDD/SSD | |
| Power Supply | PWS-1K23A-1R | 2 | 1200W Redundant Titanium Power Supplies |
