- Supermicro SSG-947R-E2CJB Server Chassis 4U Rackmount
Supermicro SSG-947R-E2CJB Server Chassis 4U Rackmount
Equipped with 1200W Redundant Power Supply
Can be placed in a rack for secure storage and use
Features SAS3 (12Gbps) via AOM-SAS3-937EL-JB
4U Rackmount SuperServer, 2 Hot-pluggable nodes, 24 Hot-swap 3.5in drive Bays, IPMI 2.0 with dedicated LAN, Redundant 1200W Power Supply (CSE-947ETS-R0NDBP)
Two hot-pluggable systems (nodes) in a 4U form factor.
1. High Availability Storage Appliance Platform

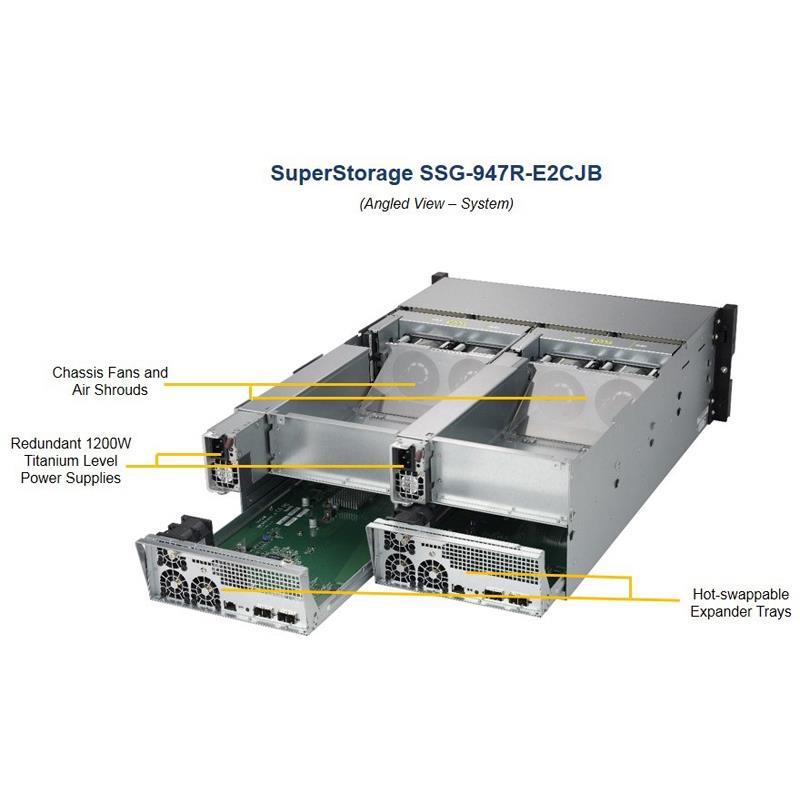

2. Redundant Hot-swap expander trays
3. 4 SAS3.0 IO ports

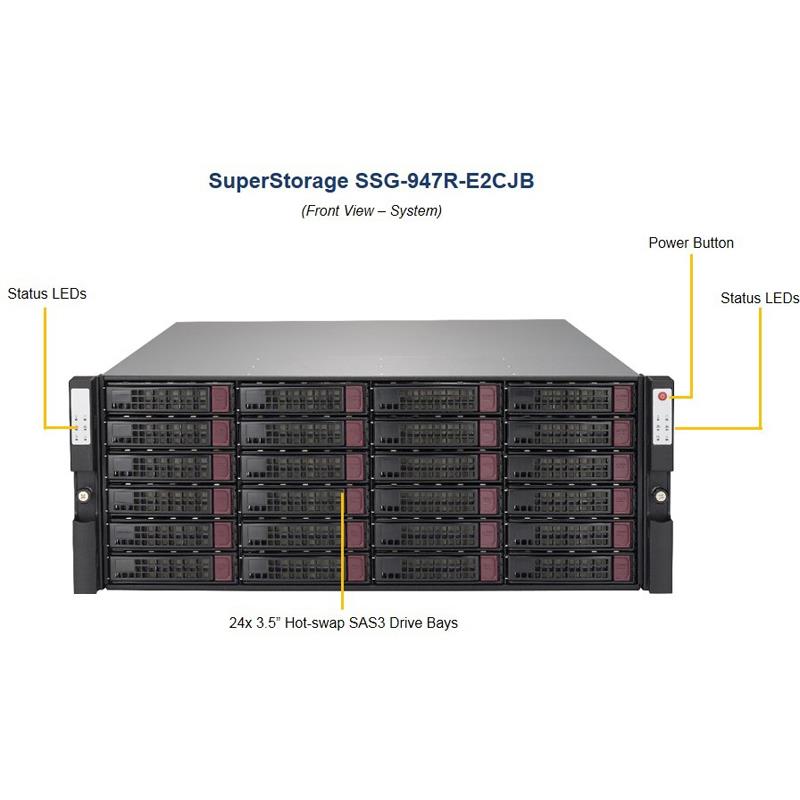

4. 24 Hot-swap 3.5" Drive Bays
5. IPMI 2.0 with dedicated LAN
6. 4x 40mm and 4x 80mm cooling fans
7. 1200W Redundant Power Supplies Titanium Level Certified
Extra Specifications for Supermicro SSG-947R-E2CJB Server Chassis 4U Rackmount
| Add-on Module | ||
| Add-on Module | 2x AOM-SAS3-947EL-JB | |
| Drive Bays | ||
| Hot-swap | 24x 3.5" Hot-swap SAS drive bays with SES2 | |
| Expander | ||
| Expander | AOM-SAS3-937EL-JB, features: 12Gb SAS3 HDD support Redundancy dual ported SAS architecture Robust AirMax server node connections (SBB specification) | |
| On-Board Devices | ||
| SAS | SAS3 (12Gbps) via AOM-SAS3-937EL-JB | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED | |
| Power Fail LED | ||
| Heartbeat LED | ||
| Overheat/Fan Fail LED | ||
| 2 SAS link activity LEDs | ||
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-947ETS-R0NDBP | |
| Dimensions | ||
| Width | 17.2" (437mm) | |
| Height | 7" (178mm) | |
| Depth | 27" (686mm) | |
| Weight | Gross Weight: 81 lbs (36.7 kg) | |
| Net Weight: 60.5 lbs (27.4 kg) | ||
| System Cooling | ||
| Fans | 4x 80mm and 4x 40mm PWM cooling fans | |
| Redundant cooling | ||
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W/1200W | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 100-127Vac / 15-12A / 50-60Hz | |
| 200-240Vac / 8.5-7A / 50-60Hz | ||
| 200-240Vdc / 8.5-7A (for CCC only) | ||
| +12V | Max: 83A / Min: 0A (100-127Vac) | |
| Max: 100A / Min: 0A (200-240Vac) | ||
| Max: 100A / Min: 0A (200-240Vdc) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | 19 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 947R-E2CJB (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | AOM-SAS3-947EL-JB | 1 | Super AOM-SAS3-947EL-JB | |
| Motherboard / Chassis | CSE-947ETS-R0NDBP | 1 | 4U Chassis | |
| Add-on Card / Module | AOM-SAS3-947EL-JB-P | 2 | SAS3 Expander card support SBB 4U JBOD system, for 24x 3.5-inch SAS3/SAS2/SATA3 drives | |
| Backplane | BPN-SAS3-947 | 1 | 24-port 4U SBB SAS3 12Gbps midplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) | |
| Cable 2 | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Rear Window | MCP-240-93709-0N | 2 | SC937 X10 JBOD Rear Window for AOM-SAS3-937EL-JB | |
| Rear Window | MCP-240-94704-0N | 2 | SC947 X10 Standard JBOD Rear Window Light Pipe for AOM-SAS3-937EL-JB | |
| Air Shroud | MCP-310-94701-0N | 1 | Two set plastic air shroud for SC947 | |
| Drive Tray | MCP-220-93703-0B | 24 | Drive trays support 3.5" SAS HDD/SSD | |
| Fan | FAN-0157L4 | 4 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH | |
| Fan | FAN-0164L4 | 4 | 80x80x38 mm, 11K RPM, Middle Cooling Fan for SC947 SBB Chassis | |
| Power Supply | PWS-1K23A-1R | 2 | 1200W Redundant Titanium Power Supplies |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Converter Tray | MCP-220-93707-0B | $ 31.00 | 0 | Hot-swap 3.5" to 2.5" converter drive tray | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
