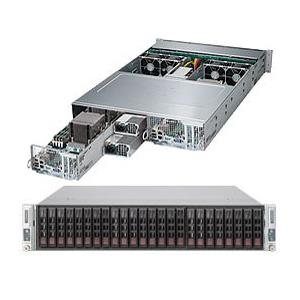

- Supermicro SYS-2027PR-DC1FR Twin Barebone Dual CPU Two Hot-pluggable Nodes
Supermicro SYS-2027PR-DC1FR Twin Barebone Dual CPU Two Hot-pluggable Nodes
Two hot-pluggable systems (nodes) in a 2U form factor
Up to 1TB ECC LRDIMM, up to 1866MHz; 16x DIMM sockets
Supports Intel Xeon processor E5-2600 and E5-2600 v2 family
1x PCI-E 3.0 x16 Low-profile slot, 1x PCI-E 3.0 x8 Low-profile slot
Barebone 2U Rackmount SuperServer, Dual Intel Xeon Scalable Processors, Intel C602 chipset, Up to 1TB DDR3 ECC 1866Mhz memory, LSI 3108 SAS3 controller, 10 Hot-swap 2.5in drive Bays, 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output, Intel i350 Dual Port Gigabit Ethernet Redundant 1280W Power Supply (CSE-217HD+-R1K28B + MBD-X9DRT-PIBF)
This product is no longer available.
Key Features
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
Dual socket R (LGA 2011) supports Intel Xeon processor E5-2600 and E5-2600 v2 family
Up to 1TB ECC LRDIMM, 512GB ECC RDIMM, up to 1866MHz; 16x DIMM sockets
1x PCI-E 3.0 x16 Low-profile slot, 1x PCI-E 3.0 x8 Low-profile slot
Intel i350 Dual port GbE LAN
Integrated IPMI 2.0 with KVM and Dedicated LAN
Single port IB (FDR, 56 Gbps) with QSFP connector
12x Hot-swap 2.5" SAS/SATA HDD Bays
LSI 3108 SAS3 controller (8 ports) + 2 SATA3 + 2 SATA2; RAID 0, 1, 5, 6, 10, 50, 60
1280W Redundant Power Supplies Platinum Level (94%)
Extra Specifications for Supermicro SYS-2027PR-DC1FR Twin Barebone Dual CPU Two Hot-pluggable Nodes
| Main Specifications | ||
| Device Type | SuperServer 2027PR-DC1FR | |

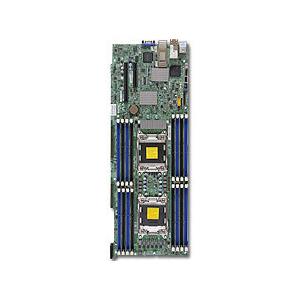

| Built-in Devices | Super X9DRT-PIBF | |
| Form Factor | 2U Rackmount - CSE-217HD+-R1K28B | |
| Dimensions (WxDxH) | Width 17.25" (438mm) x Height 3.47" (88mm) x Depth 28.75" (730mm) | |
| Weight | 66 lbs (29.9kg) | |
| Enclosure Color | Black | |
| Processor | ||
| Compatible Processors (per Node) | Intel Xeon processor E5-2600 and E5-2600 v2 family (up to 135W TDP) | |
| Compatible Socket (per Node) | Dual Socket R (LGA 2011) | |
| Cache/Core (per Node) | Up to 30MB | |
| System Memory | ||
| Memory Capacity (per Node) | 16x 240-pin DDR3 DIMM slots, Up to 1TB DDR3 ECC LRDIMM, Up to 512GB DDR3 ECC Registered memory (RDIMM) | |
| Memory Type (per Node) | 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs | |
| DIMM Sizes (per node) | 32GB, 16GB, 8GB, 4GB, 2GB, 1GB | |
| Memory Voltage (per Node) | 1.5 V, 1.35 V | |
| Error Detection (per Node) | Corrects single-bit errors, Detects double-bit errors (using ECC memory) | |
| On-Board Devices | ||
| Chipset (per Node) | Intel C602 Chipset | |
| Infiniband (per Node) | Mellanox ConnectX-3 FDR Infiniband 56Gb/s Controller | |
| SATA/SAS (per node) | LSI 3108 SAS3 (12Gbps) controller, RAID 0, 1, 5, 6, 10, 50 support | |
| Note: In order to support the Broadcom RAID Controllers, both CPU socket must be populated | ||
| SATA w/ RAID 0, 1, 5, 10 support, maximum speed of the drive will go with port interface | ||
| IPMI (per Node) | Support for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, Nuvoton WPCM450 BMC | |
| Network Controllers (per Node) | Intel i350 Dual Port Gigabit Ethernet, Virtual Machine Device Queues reduce I/O overhead, Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output, 1x Realtek RTL8201N PHY (dedicated IPMI) | |
| Graphics (per Node) | Matrox G200eW | |
| Input / Output | ||
| SATA (per Node) | 2x SATA3 (6Gbps) ports, 2x SATA2 (3Gbps) ports, 8x SAS3 (12Gbps) ports | |
| LAN (per Node) | 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port | |
| USB (per Node) | 2x USB 2.0 ports total (2x rear) | |
| VGA (per Node) | 1x VGA port | |
| Serial Port / Header (per node) | 1x Fast UART 16550 port / 1 Header (internal) | |
| Others (per Node) | 1x mSATA (full size) and one SATADOM support on the daughter card, 1x SATADOM support on the motherboard | |
| Front Panel | ||
| Buttons | Power On/Off button, UID button | |
| LEDs | Power status LED, HDD activity LED, 2x Network activity LEDs, Universal Information (UID) LED | |
| Expansion Slots | ||
| PCI-Express (per node) | 1x PCI-E 3.0 (x16) Low-profile slot | |
| 1x PCI-E 3.0 (x8) Low-profile slot | ||
| Drive Bays | ||
| Internal Drive Bays (per Node) | 12x 2.5" Hot-swap SAS/SATA HDD trays | |
| System Cooling | ||
| Fans/Air Shroud | 4x 8cm heavy duty PWM fans with optimal fan speed control | |
| Power Supply | ||
| Power Supply | 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2 | |
| Certification | 80PLUS Platinum Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | Plug and Play (PnP), APM 1.2, PCI 2.2, ACPI 1.0 / 2.0, USB Keyboard support, SMBIOS 2.3, UEFI | |
| Environmental Parameters | ||
| Operating Temperature | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Parts List - (Items Included) | ||
| Motherboard / Chassis | 2x MBD-X9DRT-PIBF / 1x CSE-217HD+-R1K28B | |
| Cable(s) | 2x CBL-PWCD-0578 | |
| Heatsink / Retention | 4x SNK-P0048PS | |
| Backplane | ||
| HDD Backplane | 2x BPN-ADP-S3108H-H8IRP, 1x BPN-SAS3-217HD | |
