Supermicro SYS-5019GP-TT 1U Barebone Single Intel Processor
• Edge Computing
• Micro Data Center
• AI/ML, Deep Learning Training and Inference
• Virtualization
• Cloud Computing
Barebone 1U Rackmount SuperServer, Single Intel Xeon Scalable Processors Gen. 2, Intel C621 chipset, Up to 1.5TB DDR4 ECC 2933MHz memory, 3 Hot-Swap 3.5in drive bays, Dual 10GBase-T LAN ports, Redundant 1400W Power Supply (CSE-818GTS-1K43BP+ MBD-X11SPG-TF)
1. Supports up to 2 Active/Passive Cooling NVIDIA® GPUs in 1U
2. Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake) ‡
3. 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
4. 2 PCI-E 3.0 x16 slots (support double-width GPU), 1 PCI-E 3.0 x16 low-profile slot (center left)

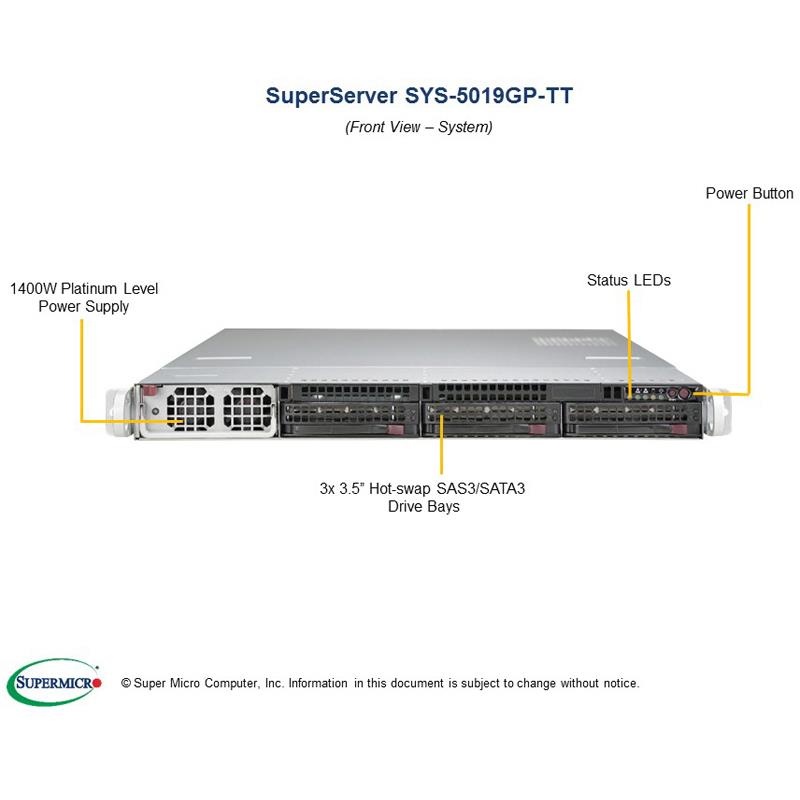

5. 3 Hot-swap 3.5" SAS/SATA drive bays, 1 slim DVD-ROM drive bay
6. 2x 10GBase-T LAN ports via Intel X550
7. 2 M.2 form factor 2280, supports both M.2 NVMe and SATA SSD
8. 8 Heavy duty 4cm counter-rotating 4cm fans with air shroud & optimal fan speed control
9. 1400W High-efficiency Power Supply Platinum Level (94%+)
Extra Specifications for Supermicro SYS-5019GP-TT 1U Barebone Single Intel Processor
| Motherboard | ||
| Motherboard | Super X11SPG-TF | |
| Processor | ||
| CPU | Single Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ | ||
| Support CPU TDP 70-205W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| GPU | ||
| Supported GPUs | Supports both active and passive cooled GPUs | |
| Compatible GPU list | ||
| 2 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) | ||
| NVIDIA V100, M10, T4, Quadro RTX | ||
| CPU-GPU Interconnect | PCI-E Gen 3 x16 Switch CPU-GPU Interconnect | |
| System Memory | ||
| Memory Capacity | 6 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 1.5TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| Network Connectivity | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Intel® X550 Dual Port 10GBase-T | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 ports (rear) | |
| 2 USB 2.0 ports (rear) | ||
| Video | 1 VGA port | |
| Serial Port | 1 Fast UART 16550 header | |
| DOM | 2 DOM (Disk on Module) power connectors | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SPM , SUM | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-818GTS-1K43BP2 | |
| Dimensions | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 28.2" (716mm) | |
| Weight | Net Weight: 28 lbs (12.70 kg) | |
| Gross Weight: 36 lbs (16.33 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 (FHFL) slots - supporting up to 2 GPUs | |
| 1 PCI-E 3.0 x16 slot (left riser) | ||
| Drive Bays / Storage | ||
| Hot-swap | 3 Hot-swap 3.5" SAS/SATA drive bays | |
| M.2 | Supports 2 M.2 form factor 2280 | |
| Supports both M.2 NVMe and SATA SSD | ||
| Peripheral Bay(s) | 1 slim DVD-ROM drive bay or 1 USB + COM port tray | |
| System Cooling | ||
| Fans | 8 heavy duty counter-rotating 4cm fans with air shroud and optimal fan speed control | |
| Power Supply | ||
| Power Supply | 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 | |
| AC Voltage | 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz | |
| 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz | ||
| +5V standby | 6 Amp | |
| +12V | 100 Amp/115 Vac | |
| 117 Amp/230 Vac | ||
| With Power Distributor | +5V: 14 Amp | |
| Certification | Platinum Certified | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 5019GP-TT | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SPG-TF | 1 | Super X11SPG-TF Motherboard | |
| Motherboard / Chassis | CSE-818GTS-1K43BP2 | 1 | 1U SC818G Chassis | |
| Backplane | BPN-SAS-818TQ | 1 | 3-port 818 TQ (W/ AMI 9071) backplane, support up to 3x 3.5-inch SAS/SATA HDD | |
| Cable 1 | CBL-0484L | 2 | SATA,INT,ROUND,ST-ST,55CM,30AWG | |
| Cable 2 | CBL-0489L | 1 | SATA,INT,ROUND,ST-RA,70CM,30AWG | |
| Cable 3 | CBL-CDAT-0661 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG | |
| Cable 4 | CBL-PWEX-0663 | 1 | PCIe 8 pin male(black) to CPU 8 pin female(white) power adapter, 5cm, 18AWG, 9A/pin, 0~80C, RoHS/REACH | |
| Cable 5 | CBL-PWEX-1028 | 1 | Tesla family GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C | |
| Riser Card | RSC-R1U-E16R | 1 | RSC-R1U-E16R | |
| Riser Card | RSC-R1UG-E16-UP | 1 | 1U LHS Riser Card with one PCI-E x16 for UP GPU MBs | |
| Riser Card | RSC-R1UG-E16R-UP | 1 | 1U RHS Riser Card with 1 PCI-E x16 for UP GPU MB | |
| Heatsink / Retention | SNK-P0067PS | 1 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Power Supply | PWS-1K43F-1R | 1 | 1400W redundant digital power supply |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Other GPUs Cables | CBL-PWEX-1059 | $ 31.50 | 1 | Quadro family GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG,8A/pin(17AWG), 6A/pin(20AWG), -25~80C, RoHS | ||
| AOC-S3008L-L8i (SAS3) | CBL-SAST-0699 | $ 29.00 | 1 | Mini SAS HD-4 SATA, 12G | ||
| AOC-S3108L-H8IR-16DD (SAS3) | CBL-SAST-0699 | $ 29.00 | 1 | Mini SAS HD-4 SATA, 12G | ||
| AOC-S3108L-H8IR (SAS3) | CBL-SAST-0699 | $ 29.00 | 1 | Mini SAS HD-4 SATA, 12G | ||
| Super Cap for LSI 3108 | BKT-BBU-BRACKET-05 | $ 84.00 | 1 | Mounting Bracket for LSI BBUs | ||
| Super Cap for LSI 3108 | BTR-TFM8G-LSICVM02 | $ 279.00 | 1 | LSI Super Cap | ||
| Network Cards | AOC-S100G-m2C | 0 | Standard low-profile 2-port QSFP28 100GbE PCI-E 3.0 x16, | |||
| Network Cards | - | 0 | based on Mellanox ConnectX-4 EN chipset | |||
| Network Cards | AOC-MCX516A-CCAT | $ 931.00 | 0 | Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3x16 CX-5 EN. RoHS | ||
| Network Cards | AOC-S40G-i2Q | 0 | Standard Low-Profile Dual-port 40GbE controller with 2x QSFP ports | |||
| Network Cards | AOC-MCX512A-ACAT | $ 407.50 | 0 | Mellanox MCX512A-ACAT PCIe 2-port 25GbE SFP28 Gen3x8 CX-5 EN. RoHS | ||
| Network Cards | AOC-MCX4121A-ACAT | 0 | Mellanox MCX4121A-ACAT 25GbE dual-port SFP28, PCIe3.0 x8, tall bracket Lx EN, HF, RoHS | |||
| Network Cards | AOC-S25G-b2S | 0 | Standard Low-Profile Dual-port 25GbE controller with 2 SFP28 ports, | |||
| Network Cards | - | 0 | based on Broadcom BCM57414 | |||
| Network Cards | AOC-S25G-m2S | 0 | Standard low-profile 2-port 25GbE with SFP+, based on Mellanox ConnectX-4 LX EN chipset | |||
| Network Cards | AOC-STG-b4S | 0 | Standard Low-profile Quad-port 10GbE controller with 4x SFP+ ports | |||
| Network Cards | AOC-STG-i4S | 0 | Standard Low-Profile Quad-port 10GbE controller with 4x SFP+ ports | |||
| Network Cards | AOC-STGN-i2S | 0 | Standard Low-Profile Dual-port 10GbE controller with 2x SFP+ ports | |||
| Network Cards | AOC-STGN-i1S | 0 | Standard Low-Profile Single-port 10GbE controller with 1x SFP+ port | |||
| Network Cards | AOC-STG-i2T | 0 | Standard Low-Profile Dual-port 10GbE controller with 2x RJ45 (10GBase-T) ports | |||
| Network Cards | AOC-SGP-i4 | 0 | Standard Low-Profile Quad-port GbE controller with 4x RJ45 ports | |||
| Network Cards | AOC-SGP-i2 | 0 | Standard Low-Profile Dual-port GbE controller with 2x RJ45 ports | |||
| GPUs Air Shroud Kit | MCP-310-81806-0B | $ 20.50 | 0 | Nvidia Fermi GPU Air shroud for 818G/118G | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
