| Motherboard |
| Motherboard | Super A2SAV |
| Processor/Cache |
| CPU | System-on-Chip |
| FCBGA 1296 |
| Intel® Atom™ Processor E3940 |
| System Memory |
| Memory Capacity | 1x 204-pin DDR3 SO-DIMM socket |
| Memory Type | 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3, 204-pin gold-plated DIMMs |
| DIMM Sizes | 8GB, 4GB, 2GB |
| Memory Voltage | 1.5 V, 1.35 V |
| On-Board Devices |
| SATA | SoC controller for 2 SATA3 (6Gbps) ports |
| Marvel 88SE9230 controller for 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10 |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Dual GbE LAN with Intel i210-AT controller |
| Video | Intel HD Graphics |
| Input / Output |
| SATA | 6 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 2 USB 3.0 (2 rear) |
| 4 USB 2.0 (2 rear, 2 front) |
| 1 USB 2.0 (Type A) |
| COM Port | 2 serial ports |
| DOM | 1 SATA DOM (Disk on Module) power connector |
| Video | 1 VGA, 1 DP (Display Port), 1 HDMI, 1 eDP (Embedded Display Port), 1 Intel HD Graphics |
| TPM | 1 TPM 1.2 onboard Header |
| Management |
| Software | Watch Dog |
| SuperDoctor® 5 |
| Power Configurations | ACPI Power Management |
| Control of power-on for recovery from AC power loss |
| ATX Power connector |
| CPU thermal trip support for processor protection |
| Chassis |
| Form Factor | Mini Tower |
| Model | CSE-721TQ-250B |
| Dimensions and Weight |
| Height | 9.45" (240mm) / 13.78" (350mm) pkg. |
| Width | 8.27" (210mm) / 12.4" (315mm) pkg. |
| Depth | 11" (279mm) / 16.14" (410mm) pkg. |
| Weight | Net Weight: 15 lbs (6.8 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Power LED |
| System Information LED |
| Network activity LEDs |
| Hard drive activity LED |
| Expansion Slots |
| PCI-E | 1 PCI-E 2.0 x2 (in x8) slot |
| 1 M.2 PCIe 2.0 x2, M Key 2242/80 |
| 1 Mini-PCIe with mSATA |
| Drive Bays |
| HDD | 4 Hot-swap 3.5" drive bays |
| 2 Internal 2.5" fixed drive bays |
| Peripheral | 1 slim DVD-ROM drive bay (shared with 1 internal 2.5" fixed drive bay) |
| Power Supply |
| Power Supply | 250W Flex ATX Multi-output Bronze Power Supply |
| AC Voltage | 100 - 240V, 50 - 60Hz |
| +5V | Max:14 Amp; Min:0.5 Amp |
| +12V | Max:18 Amp; Min:1 Amp @100V-240V |
| -12V | Max: 0.3 Amp |
| +3.3V | Max: 12 Amp Min: 0.3Amp |
| 5VSB | Max: 2.5 Amp |
| Certification | Bronze Certified |
| System BIOS |
| BIOS Type | 64Mb SPI Flash EEPROM with AMI UEFI BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| ACPI 5.0 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| UEFI |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

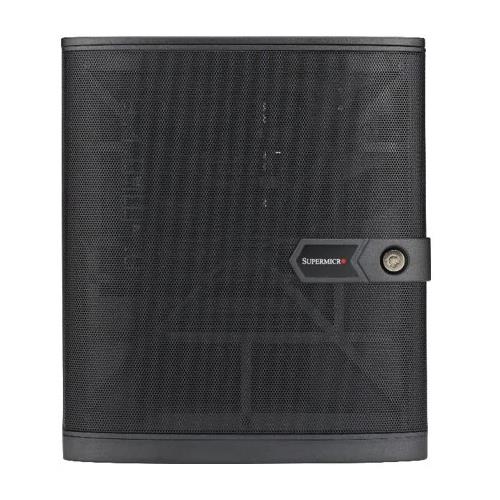

| Product SKUs | SuperServer 5029AP-TN2 (Black) |
