- Supermicro SYS-5029P-WTR 2U Barebone Single Intel Processor

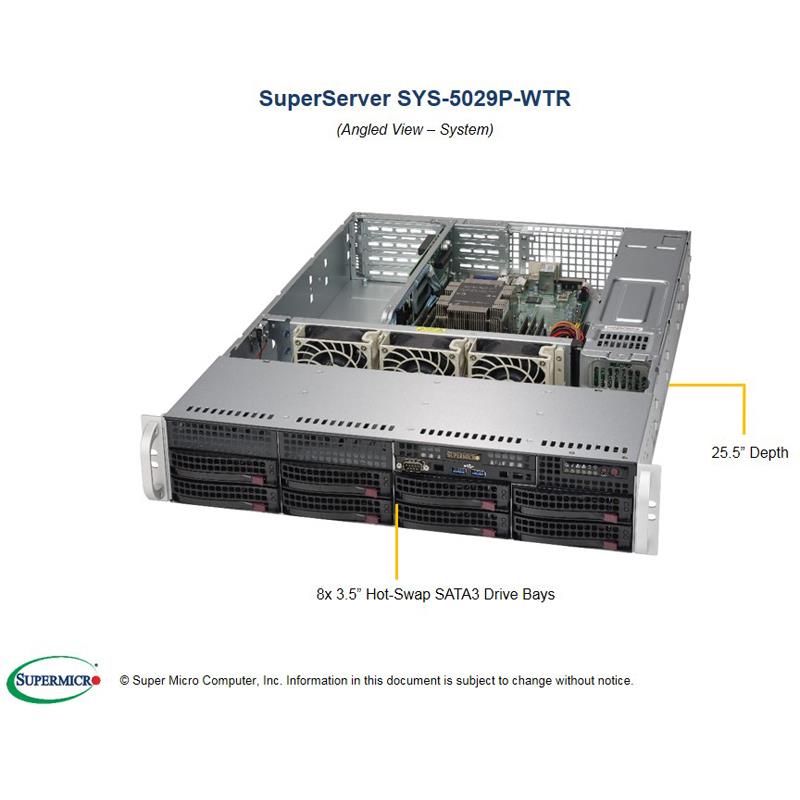

Supermicro SYS-5029P-WTR 2U Barebone Single Intel Processor
• DB Processing & Storage
• Connectivity/Storage Computer Nodes
• Data Warehouse
Barebone 2U Rackmount SuperServer, Single Intel Xeon Scalable Processors Gen. 2, Intel C622 chipset, Up to 1.5TB DDR4 ECC 2933MHz memory, 8 Hot-Swap 3.5in drive bays, Dual 10GBase-T LAN ports, Redundant 500W Power Supply (CSE-825TQC-R500WB + MBD-X11SPW-TF)
1. Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake) ‡
2. 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM
3. 4 PCI-E 3.0 x8 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
4. 8 Hot-swap 3.5" SATA3 drive bays
5. 2x 10GBase-T ports with Intel X722 + X557
6. 1 VGA, 2 COM, 4 USB 3.0, 2 USB 2.0
7. 2 SuperDOM (Disk on Module) ports
8. 600W/650W Redundant Platinum Level power supplies (Updated for 2022 Version)
Extra Specifications for Supermicro SYS-5029P-WTR 2U Barebone Single Intel Processor
| Motherboard | ||
| Motherboard | Super X11SPW-TF | |
| System Memory | ||
| Memory Capacity | 6 DIMM slots | |
| Up to 1.5TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C622 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Network Controllers | Dual 10GBase-T LAN with Intel® X722 + X557 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 10GBase-T LAN ports | |
| 1 RJ45 dedicated IPMI LAN port | ||
| USB | 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) | |
| 7 USB 2.0 ports (2 rear + 5 headers) | ||
| Video | 1 VGA port | |
| Serial Port / Header | 2 COM ports (1 rear, 1 front) | |
| SuperDOM | 2 SuperDOM (Disk on Module) ports with built-in power | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SPM , SUM | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-825TQC-R609WB | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.5" (647mm) | |
| Package | 26.5" (W) x 11" (H) x 34" (L) | |
| Weight | Net Weight: 34 lbs (15.42 kg) | |
| Gross Weight: 59 lbs (26.76 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Network activity LEDs | ||
| Information LED (temp., status) | ||
| Hard drive activity LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x8 (LP) slot | |
| 4 PCI-E 3.0 x8 (FHFL) slots | ||
| M.2 | Key: M-Key | |
| Double Height Connector | ||
| 1x M.2 Interface: PCI-E 3.0 x4 and SATA | ||
| Form Factor: 2280, 22110 | ||
| Drive Bays | ||
| Hot-swap | 8 Hot-swap 3.5" SATA3 drive bays | |
| Peripheral Drives | ||
| DVD-ROM | 1 Slim DVD-ROM drive bay | |
| System Cooling | ||
| Fans | 3 Hot-swap 8cm PWM cooling fans | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Processor | ||
| CPU | Single Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ | ||
| Support CPU TDP 70-205W * | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| * Certain high frequency optimized CPU are not supported, such as Intel Gold 6250 and 6256. Please contact Supermicro Technical Support for additional information. | ||
| Power Supply | ||
| Power Supply | 600W/650W high-efficiency redundant power supplies with PMBus | |
| AC Input | 100-127 Vac (600W) | |
| 200-240 Vac (650W) | ||
| DC Output | 200-240 Vdc (650W) | |
| +12V | 50 Amp (600W) | |
| 54.16 Amp (650W) | ||
| 12V Standby | 4A | |
| Certification | Platinum Certified [ Test Report ] | |
| Product SKUs | ||
| Product SKUs | SuperServer 5029P-WTR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SPW-TF | 1 | Super X11SPW-TF Motherboard | |
| Motherboard / Chassis | CSE-825TQC-R500WB | 1 | 1U Chassis | |
| Backplane | BPN-SAS3-825TQ | 1 | 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-0228L | 3 | SATA,INT,ROUND,ST-RA,55CM,26AWG | |
| Cable 2 | CBL-0230L | 1 | SATA,INT,ROUND,ST-RA,65CM,26AWG | |
| Cable 3 | CBL-0388L-01 | 1 | MINI SAS-4 SATA (RA),INT,75/75/90/90CM,75CM SB,30AWG | |
| Cable 4 | CBL-CDAT-0660 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG | |
| Drive Tray(s) | MCP-220-00114-0N | 1 | Black 2x USB3.0/COM port tray in slim DVD bay,RoHS/REACH | |
| Manual | MNL-1922-QRG | 1 | QRG,HF,RoHS/REACH | |
| Riser Card | RSC-R2UW-4E8 | 1 | 2U LHS WIO Riser card with four PCI-E x8 slots | |
| Riser Card | RSC-R2UW-E8R-UP | 1 | 2U RHS WIO Riser Card with a PCI-E x8 for UP MBs | |
| Heatsink / Retention | SNK-P0068PS | 1 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Power Supply | PWS-609P-1R2 | 2 | 1U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac. | |
| FAN 1 | FAN-0126L4 | 3 | 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3.5" to 2.5" Converter Tray | MCP-220-00043-0N | $ 20.00 | 0 | Black Hot-swap Gen-4 2.5" to 3.5" HDD tray | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT5 | $ 70.50 | 1 | BLACK TEAC SLIM DVD SATA DRIVE | ||
| DVD-ROM / DVD-RW | DVM-PLDS-DVDRW-SBT5 | $ 47.50 | 1 | PHILIPS SLIM BLACK DVD-RW SATA DRIVE | ||
| DVD-ROM Accessory | MCP-220-81502-0N | $ 23.00 | 1 | Slim SATA DVD mounting kit | ||
| Cable for internal HDD | CBL-0484L | $ 11.50 | 2 | 55cm 30AWG SATA straight to straigh cable | ||
| Cable for internal HDD | CBl-0289L | 1 | Y split, big 4 pin to two RA SATA power estenstion 30cm | |||
| Storage Controller card & cable | AOC-S3108L-H8iR& 2x CBL-SAST-0699 | 0 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Controller card & cable | AOC-S3108L-H8iR-16DD& 2x CBL-SAST-0699 | 0 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Controller card & cable | AOC-S3008L-L8i& 2x CBL-SAST-0699 | 0 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,63HDD, RAID 0, 1, 10 | |||
| Storage Controller card & cable | AOC-S3008L-L8e& 2x CBL-SAST-0699 | 0 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,122HDD HBA | |||
| CacheVault | BTR-TFM8G-LSICVM02 &BKT-BBU-BRACKET-05 | 0 | CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location | |||
| CacheVault | BTR-TFM8G-LSICVM02 &MCP-240-00127-0N | 0 | CacheVault for Broadcom 3108 with SuperCap mounting bracket for internal fixed bay | |||
| Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 | |||
| Network Card(s) | AOC-STGN-i2S | $ 312.50 | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | ||
| Network Card(s) | AOC-STGF-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 | |||
| Network Card(s) | AOC-STG-B4S | 0 | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | |||
| Network Card(s) | AOC-STGS-i2T | $ 344.50 | 0 | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 | ||
| Network Card(s) | AOC-S25G-b2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 | |||
| Network Card(s) | AOC-S25G-m2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX | |||
| Front Bezels | MCP-210-82503-0B | $ 28.50 | 1 | Black front bezels | ||
| TPM security module | AOM-TPM-9670V | $ 52.00 | 1 | TPM 2.0, vertical form factor | ||
| TPM security module | AOM-TPM-9671V | $ 52.00 | 1 | TPM 1.2, vertical form factor | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
