- Supermicro SYS-6019U-TR4T 1U Barebone Dual Intel Processor

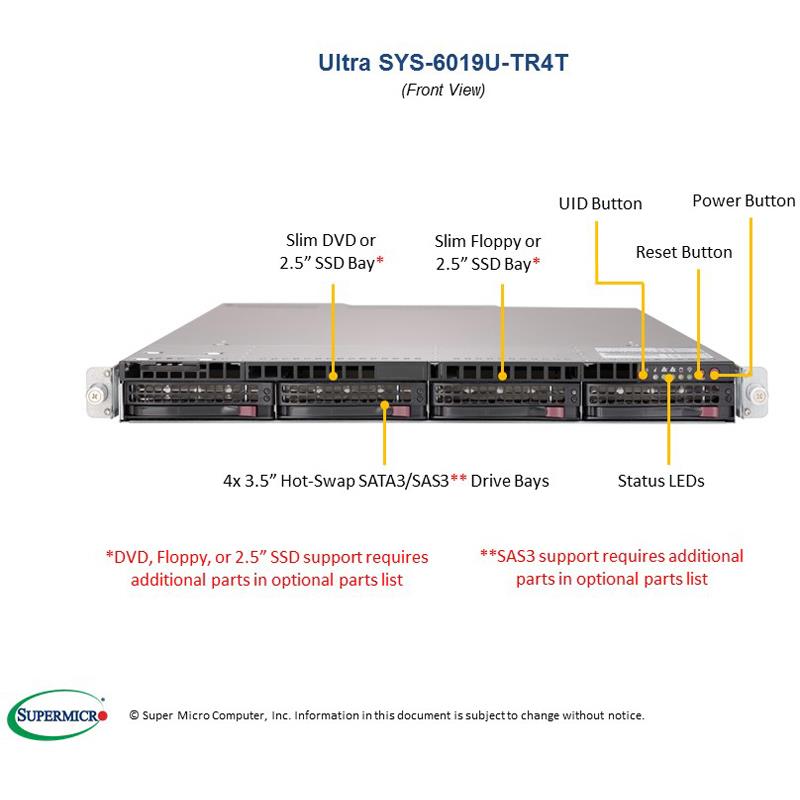

Supermicro SYS-6019U-TR4T 1U Barebone Dual Intel Processor
• Virtualization
• Cloud Computing
• High End Enterprise Server
Barebone 1U Rackmount SuperServer, Dual Intel Xeon Scalable Processors Gen. 2, Intel C621 chipset, Up to 6TB DDR4 ECC 2933MHz memory, 4 Hot-swap 3.5in drive bays, 4x 10GBase-T ports, Redundant 750W Power Supply (CSE-819UTQ-R751-T + MBD-X11DPU)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs and 4 DIMMs).
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
4. 4 10GBase-T Ethernet ports
5. 4 Hot-swap 3.5" Drive Bays; Optional M.2 NVMe and SATA3 ports
6. 8 Heavy duty fans w/ optimal fan speed control
7. 750W Redundant Power Supplies Platinum Level (94%+)
Extra Specifications for Supermicro SYS-6019U-TR4T 1U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X11DPU | |
| Processor/Cache | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s | ||
| Support CPU TDP 70-205W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information. | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Supports Intel® Optane™ DCPMM †† | ||
| Memory Type | 2666 ECC DDR4 NVDIMM | |
| 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | ||
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Network Connectivity | 4x 10GBase-T ports via AOC-UR-i4XT (Intel® X540 10GBase-T) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 4 RJ45 10GBase-T Ethernet ports | ||
| USB | 3 USB 3.0 ports (2 rear, 1 Type A) | |
| Video | 2 VGA ports (1 rear, 1 onboard) | |
| Serial Port | 1 Serial header | |
| DOM | 2 SATA DOM (Disk on Module) support with embedded power | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-819UTS-R751P-T | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29.7" (754mm) | |
| Weight | Net Weight: 26 lbs (11.8 kg) | |
| Gross Weight: 41 lbs (18.6 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 (Full-height, 10.5" L) | |
| 2 PCI-E 3.0 x8 (1 LP, 1 internal LP) | ||
| Drive Bays / Storage | ||
| Hot-swap | 4 Hot-swap 3.5" drive bays | |
| 4 SATA3 (optional SAS3 via AOC) | ||
| M.2 | 1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list) | |
| 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2 | ||
| System Cooling | ||
| Fans | 8 Heavy duty fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud | |
| Power Supply | ||
| Power Supply | 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output | |
| AC Input | 100-127Vac, 50-60Hz | |
| 200-240Vac, 50-60Hz | ||
| +12V | Max: 62.5A & Min: 0A (100Vac-127Vac) | |
| Max: 62.5A & Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 2.1A | |
| Min: 0A | ||
| Certification | Platinum Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 6019U-TR4T (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPU | 1 | Super X11DPU Motherboard | |
| Motherboard / Chassis | CSE-819UTS-R751P-T | 1 | 1U Chassis | |
| Add-on Card / Module | AOC-UR-I4XT-P | 1 | 1U Ultra Riser based on Intel X540 controller with 4-port 10GBase-T and 1 internal PCI-E 3.0 x8 slot | |
| Backplane | BPN-SAS3-815TQ | 1 | 1U 4-Port 12Gbps Backplane Support 4x3.5 | |
| Cable 1 | CBL-PWEX-0702 | 1 | PWEX,2X4F/P4.2 TO 1X4F/P5.08/RA,32CM,18AWG,YEL,BLK*2,RED | |
| Cable 2 | CBL-SAST-0654 | 1 | MINI SAS(RA-RS EXIT)-4 SATA,INT,52/42/41/51CM,52CM SB,30AWG | |
| FAN 1 | FAN-0101L4 | 8 | 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808 | |
| Air Shroud | MCP-310-81910-0N | 1 | Plastic air shroud for SC819U, 119U (X11 24DIMM, left side) | |
| Air Shroud | MCP-310-81911-0N | 1 | Plastic air shroud for SC819U, 119U (X11 24DIMM, right side) | |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots | |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot | |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| * Power Supply | PWS-751P-1R | 2 | 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH |
