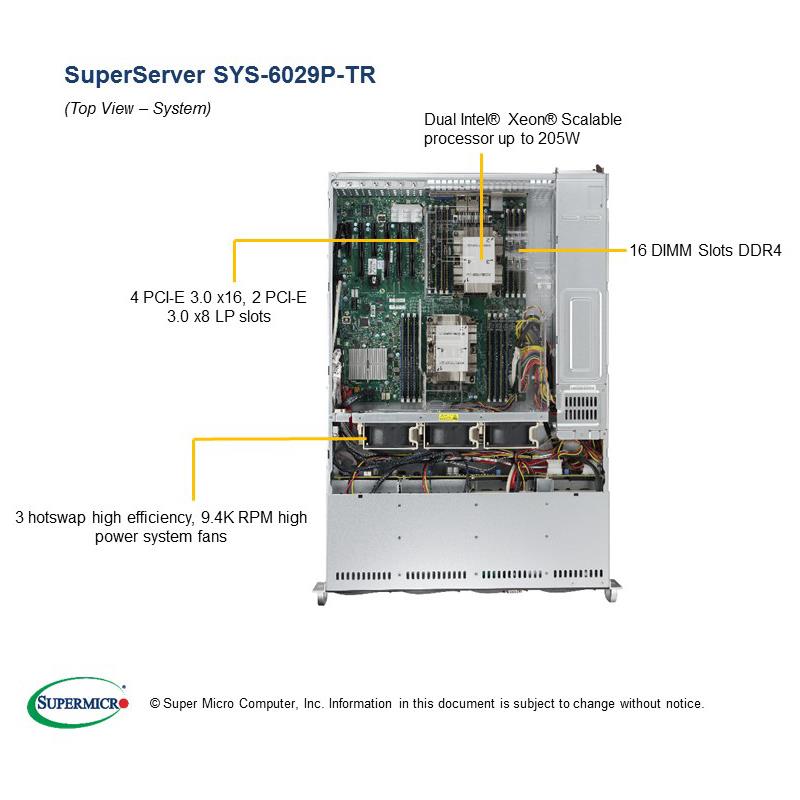

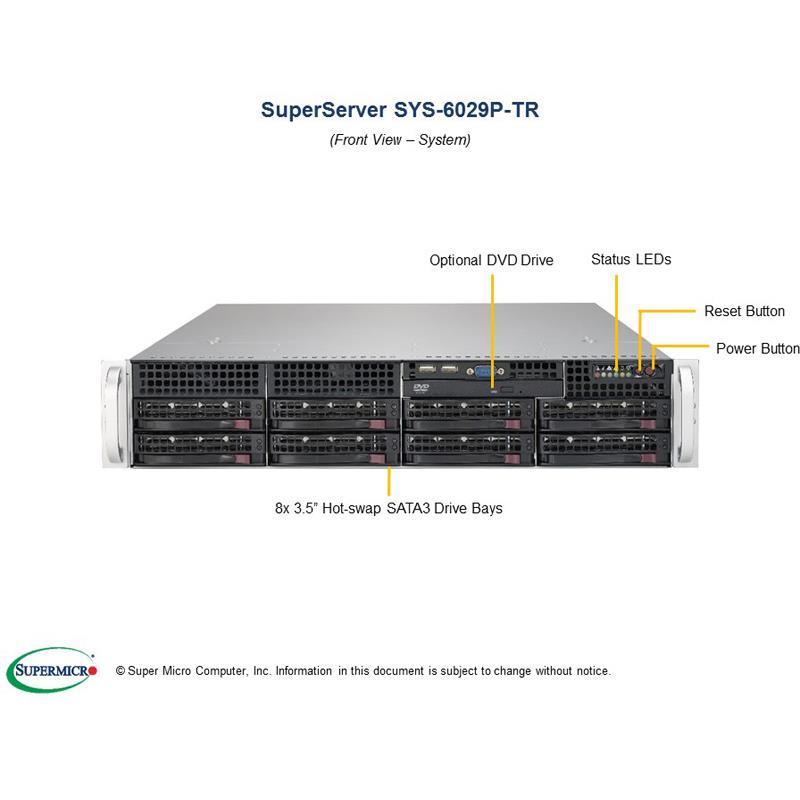

Supermicro SYS-6029P-TR 2U Barebone Dual Intel Processor
• Cloud and Virtualization needs
• Compute Intensive Application
• Database Processing and Storage
• High Availability Storage
• Hosting & Application Delivery
• 1. Dual Socket P (LGA 3647) support
• 2nd Gen Intel® Xeon® Scalable
• processors (Cascade Lake/Skylake)
• ‡
• 2. 16 DIMMs; up to 4TB 3DS ECC
• DDR4-2933MHz
• †
• RDIMM/LRDIMM,
• Supports Intel® Optane™ DCPMM
• ††
• 3. 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots
• 4. 8 Hot-swap 3.5" SATA3 drive bays;
• RAID 0, 1, 5, 10
• 5. Optional DVD-ROM drive, optional
• support: 2 fixed 2.5" NVMe/SSD/HDD,
• 1 M.2 support
• 6.
• M.2 Interface:
• PCI-E 3.0 x4
• M.2 Form Factor:
• 2260, 2280, 22110
• M.2 Key:
• M-Key
• 7. 2x 1GbE LAN ports with Intel® X722
• 8. 1000W Redundant Power Supplies
• Titanium Level
• (96% efficiency)
Barebone 2U Rackmount SuperServer, Dual Intel Xeon Scalable Processors Gen. 2, Intel C621 chipset, Up to 4TB DDR4 ECC 2933MHz memory 8 Hot-swap 3.5in drive bays, Dual 1GbE LAN ports, Redundant 1000W Power Supply (CSE-825TQC-R1K03LPB + MBD-X11DPi-N)
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots
4. 8 Hot-swap 3.5" SATA3 drive bays; RAID 0, 1, 5, 10
5. Optional DVD-ROM drive, optional support: 2 fixed 2.5" NVMe/SSD/HDD, 1 M.2 support
6. M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key
7. 2x 1GbE LAN ports with Intel® X722
8. 1000W Redundant Power Supplies Titanium Level (96% efficiency)
Extra Specifications for Supermicro SYS-6029P-TR 2U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X11DPi-N | |
| System Memory | ||
| Memory Capacity | 16 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Network Controllers | Dual 1GbE LAN with Intel® X722 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 8 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | Rear USB: 2 USB 3.0 + 2 USB 2.0 | |
| Front USB: 2 USB 2.0 | ||
| USB Header: 1 Type A | ||
| VGA | 1 VGA port | |
| Serial Port / Header | 2 COM Ports (1 rear, 1 header) | |
| 2 Fast UART 16550 serial | ||
| DOM | 2 Super DOM (Disk on Module) ports | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | Watch Dog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-825TQC-R1K03LPB | |
| Dimensions and Weight | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 25.5" (647mm) | |
| Package | 26.7" (H) x 11.4" (W) x 34.5" (D) | |
| Weight | Gross Weight: 69 lbs (31.2 kg) | |
| Net Weight: 35.5 lbs (16.1 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| UID button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| System information (overheat/UID) LED | ||
| Expansion Slots | ||
| PCI-Express | 4 PCI-E 3.0 x16 (Low-profile) | |
| 2 PCI-E 3.0 x8 (Low-profile) | ||
| Drive Bays | ||
| Hot-swap | 8 Hot-swap 3.5" SATA drive bays | |
| Backplane | ||
| Backplane | 2U SAS/SATA backplane | |
| System Cooling | ||
| Fans | 3 Heavy duty 80mm fans with PWM fan speed control | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W/1000W | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 100-127Vac / 12-9A / 50-60Hz | |
| 200-240Vac / 7.2-6A / 50-60Hz | ||
| 200-240Vdc / 7.2-6A (for CCC only) | ||
| +12V | Max: 66.7A / Min. 0A (100-127Vac) | |
| Max: 83A / Min. 0A (200-240Vac) | ||
| Max: 83A / Min. 0A (200-240Vdc) | ||
| 5Vsb | Max: 4A / Min: 0A | |
| Output Type | 19 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| Support CPU TDP 70-205W | ||
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) * CPU SKUs not supported: Gold 6256 and Gold 6250(L) (L = increased memory capacity per socket), Gold 6233W and Gold 5216W | |
| Product SKUs | ||
| Product SKUs | SuperServer 6029P-TR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPi-N | 1 | Super X11DPi-N Motherboard | |
| Motherboard / Chassis | CSE-825TQC-R1K03LPB | 1 | 2U Chassis | |
| Backplane | BPN-SAS3-825TQ | 1 | 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-0343L-01 | 2 | MINI SAS-4 SATA,INT,76/66/54/45CM,66CM SB,30AWG | |
| Drive Tray(s) | MCP-220-00007-01 | 1 | Black USB/COM port tray for SC825, 836 | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Manual | MNL-1918-QRG | 1 | 6029P-TR/TRT Quick Reference Guide | |
| Heatsink / Retention | SNK-P0068PS | 1 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Heatsink / Retention | SNK-P0068PSC | 1 | 2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Power Supply | PWS-1K03A-1R | 2 | 1U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH | |
| FAN 1 | FAN-0181L4 | 3 | 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Storage ControllerCard(s) & Cables(s) | AOC-S3008L-L8i &2x CBL-SAST-0699 | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;RAID 0, 1, 10 | |||
| Storage ControllerCard(s) & Cables(s) | AOC-S3008L-L8e &2x CBL-SAST-0699 | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;HBA | |||
| Storage ControllerCard(s) & Cables(s) | AOC-S3108L-H8IR &2x CBL-SAST-0699 | 0 | Standard LP, 8 internal ports (12Gb/s) 8x Gen3;RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage ControllerCard(s) & Cables(s) | AOC-S3108L-H8IR-16DD &2x CBL-SAST-0699 | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Cable Management Arm | MCP-290-00073-0N | $ 81.50 | 0 | Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm) | ||
| Adaptor Bracket | MCP-120-82503-0N | $ 34.00 | 0 | Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF | ||
| SATA DVD Kit | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 | ||
| 2.5" NVMe fixed drive support | MCP-110-82501-0N | $ 17.50 | 0 | NVMe Drive kit for SC825 FDD bay | ||
| 2.5" NVMe fixed drive support | CBL-SAST-0956 | $ 30.50 | 0 | Oculink to 1 NVMe drive w/ power, each NVMe drive needs | ||
| 2.5" NVMe fixed drive support | - | 0 | 1x cable, system can support total 2x NVMe fixed drives | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
