| Motherboard (Four per System) |
| Motherboard (Four per System) | Super X11DPT-PS |
| System Memory (per Node) |
| Memory Capacity | 16 DIMM slots |
| Up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM |
| Supports Intel® Optane™ DCPMM †† |
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. |
| On-Board Devices (per Node) |
| Chipset | Intel® C621 chipset |
| SAS | Broadcom 3108 SAS3 (12Gbps) controller; RAID 0, 1, 5 support |
| Network Controllers | Barebones and Complete System must have at least one SIOM or network card installed per node |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Input / Output (per Node) |
| SAS | 3 SAS3 (12Gbps) ports |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports total (rear) |
| VGA | 1 VGA port |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header (internal) |
| Others | 2 SuperDOM support on the motherboard. SuperDOM is for OS boot. |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash ROM |
| Management |
| Software | NMI |
| Watchdog |
| KVM with dedicated LAN |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SSM , SPM , SUM |
| Power Configurations | ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. |
| 5+1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Omni-Path Fabric CPUs | Do not support |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-827HQ+-R2K20BP2 |
| Dimensions and Weight |
| Width | 17.25" (438mm) |
| Height | 3.47" (88mm) |
| Depth | 30.5" (774mm) |
| Weight | Gross Weight: 90 lbs (40.9kg) |
| Net Weight: 72 lbs (32.7 kg) |
| Available Colors | Black |

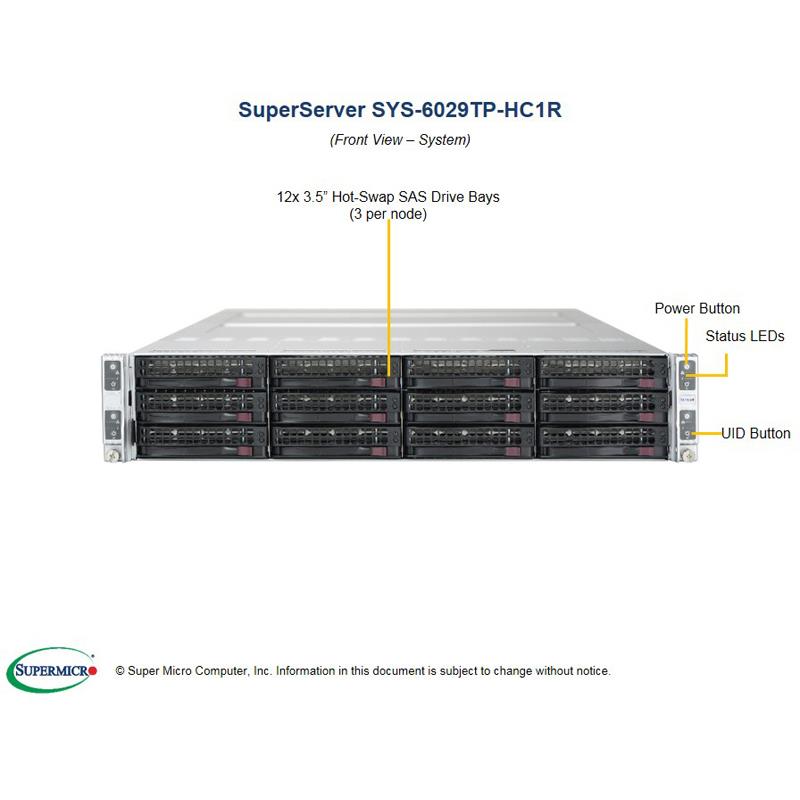

| Front Panel |
| Buttons | Power On/Off button |
| UID button |
| LEDs | Network activity LEDs |
| Power status LED |
| HDD activity LED |
| Universal Information (UID) LED |
| Expansion Slots (per Node) |
| PCI-Express | 2 PCI-E 3.0 x16 Low-profile slots |
| 1 SIOM card support Note: Barebones and Complete System must bundle with Network Card |
| Drive Bays (per Node) |
| Hot-swap | 3 Hot-swap 3.5" SAS/SATA HDD trays |
| System Cooling |
| Fans | 4 Heavy duty 8cm PWM fans with optimal fan speed control |
| Power Supply |
| Power Supply | 2200W Redundant Power Supplies with PMBus |
| Total Output Power and Input | 1200W with Input 100-127Vac |
| 1800W with Input 200-220Vac |
| 1980W with Input 220-230Vac |
| 2090W with Input 230-240Vac |
| 2200W with Input 220-240Vac (for UL/cUL use only) |
| 2090W with Input 230-240Vdc (for CCC only) |
| AC Input Frequency | 50-60Hz |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| +12V | Max: 150A / Min: 0A (200-220Vac) |
| Max: 165A / Min: 0A (220-230Vac) |
| Max: 100A / Min: 0A (100-127Vac) |
| Max: 174.17A / Min: 0A (230-240Vac) |
| Max: 183.3A / Min: 0A (220-240Vac) |
| 5VSB | Max: 1A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Processor (per Node) |
| CPU | Dual Socket P (LGA 3647) |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s |
| Support CPU TDP 70-165W * |
| Cores | Up to 28 Cores |
| Note | * Processors ending N or S are optimized for networking and storage applications. Customer need POC their application and observe any thermal throttling before large deployment. |
| ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
| * Please contact Supermicro Technical Support for supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors. |
| Product SKUs |
| Product SKUs | SuperServer 6029TP-HC1R (Black) |
