- Supermicro SYS-6029U-TR4 2U Barebone Dual Intel Processor
Supermicro SYS-6029U-TR4 2U Barebone Dual Intel Processor
• Virtualization
• Hyperconverge Storage
• Cloud Computing
• High End Enterprise Server
• Flexible Networking Options

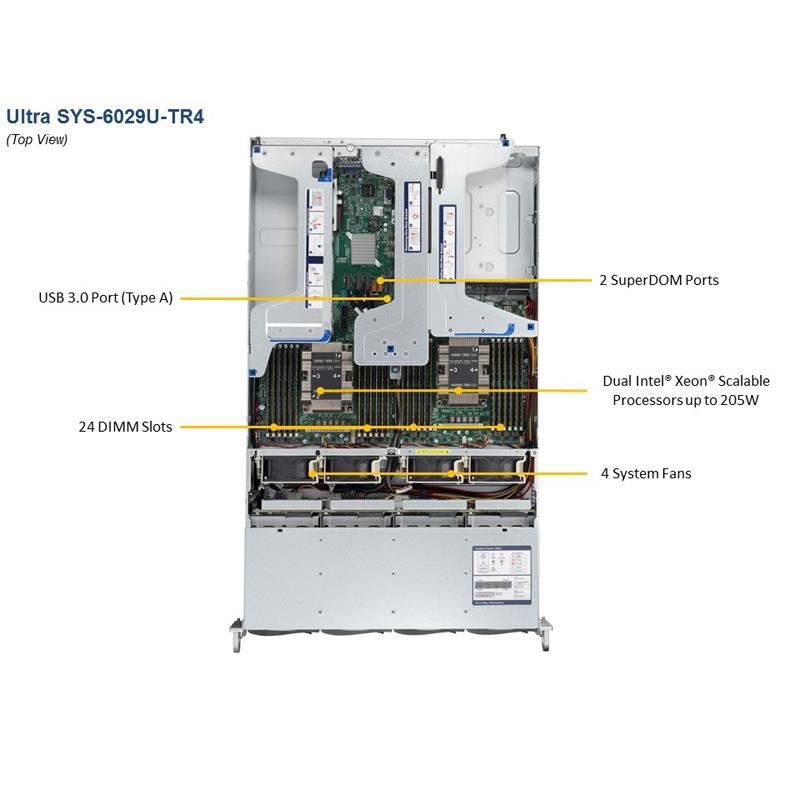

Barebone 2U Rackmount SuperServer, Dual Intel Xeon Scalable Processors Gen. 2, Intel C621 chipset, Up to 6TB DDR4 ECC 2933Mhz memory, 8 SAS3 + 4 SAS3/NVMe, 12 Hot-swap 3.5in drive bays, 4 GbE ports via, Redundant 1000W Power Supply (CSE-829U2AC4-R1K02-T + MBD-X11DPU)
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs and 4 DIMMs).
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 1 PCI-E 3.0 x16 slot (FH, 10.5" L), 5 PCI-E 3.0 x8 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP), 1 PCI-E 3.0 x8 slot (internal LP)
4. 4 1GbE LAN ports via Intel i350AM4

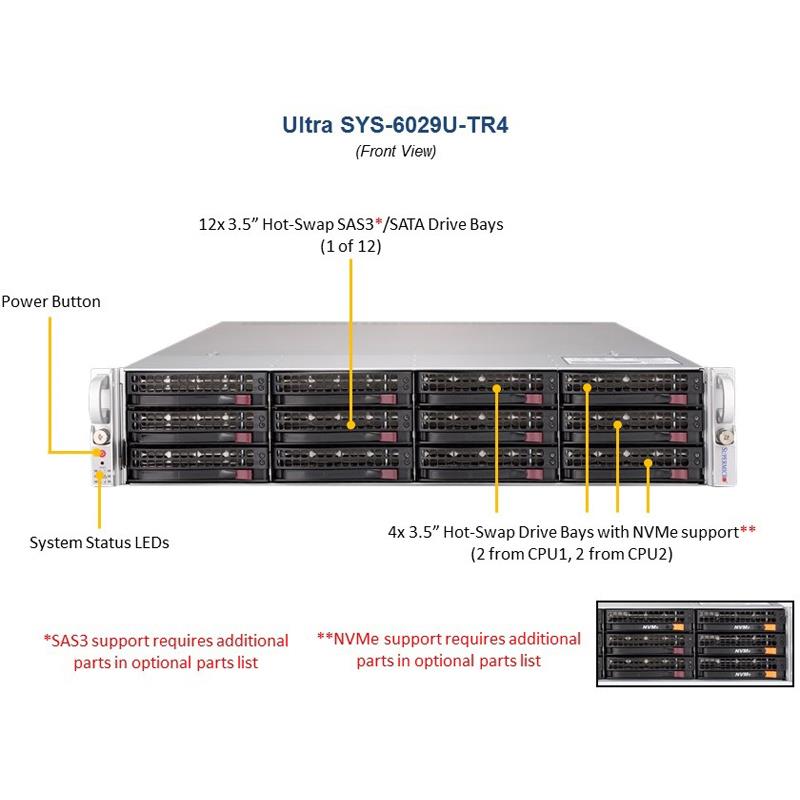

5. 12 Hot-swap 3.5" drive bays: 12 SATA (opt. 8 SAS3 + 4 NVMe/SAS3), Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
6. 4 Heavy duty 8cm fans
7. 1000W High efficiency (96%) Redundant PSU; Titanium Level
Extra Specifications for Supermicro SYS-6029U-TR4 2U Barebone Dual Intel Processor
| Motherboard | ||

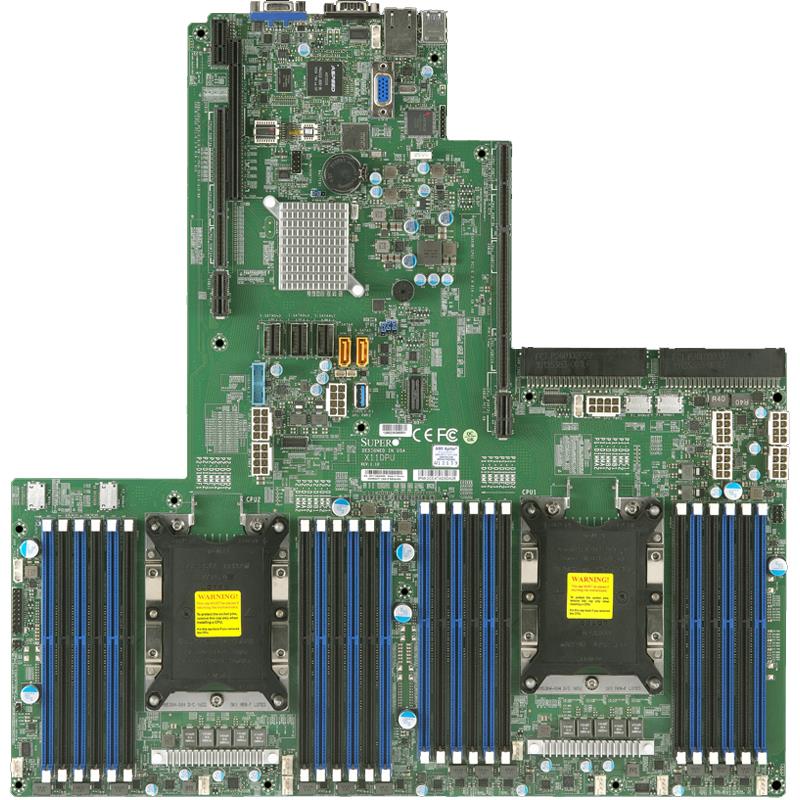

| Motherboard | Super X11DPU | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Supports Intel® Optane™ DCPMM †† | ||
| Memory Type | 2666 ECC DDR4 NVDIMM | |
| 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | ||
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| Network Connectivity | 4 GbE ports via AOC-2UR68-I4G-P (Intel i350AM4) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 12 SATA3 (6Gbps) ports | |
| SAS | 8 SAS3 + 4 SAS3/NVMe support optional | |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 3 USB 3.0 ports (2 rear, 1 Type A) | |
| Video | 2 VGA ports (1 rear, 1 onboard) | |
| Serial Port / Header | 1 Serial header | |
| DOM | 2 Super DOM (Disk on Module) ports | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-829U2TS-R1K02P-T | |
| Dimensions and Weight | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |

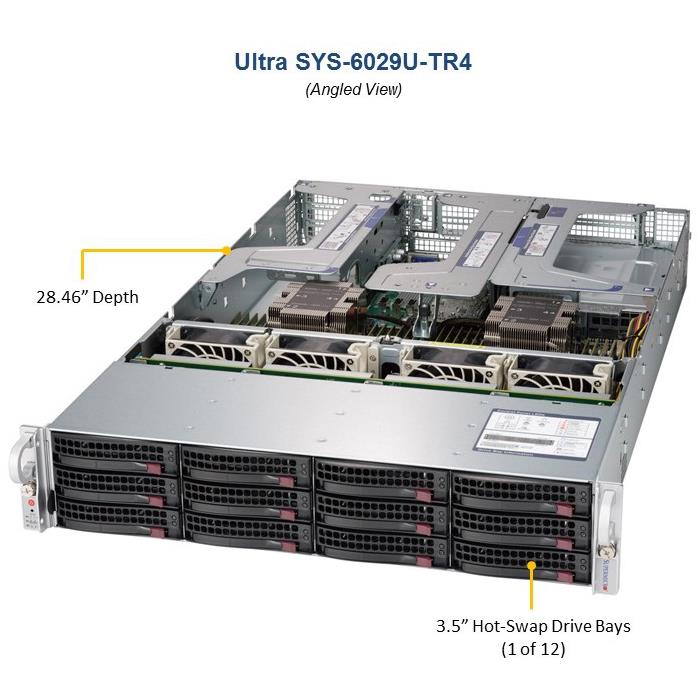

| Depth | 28.46" (723mm) | |
| Weight | Net Weight: 36 lbs (16.4 kg) | |
| Gross Weight: 72 lbs (32.7 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| System information (overheat/UID) LED | ||

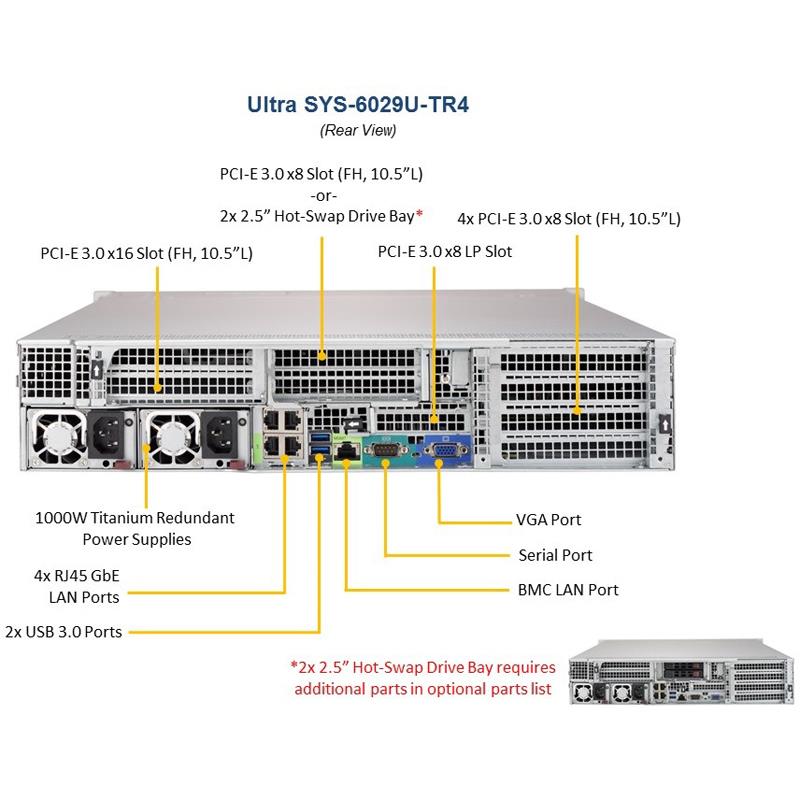

| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x8 (LP) | |
| 1 PCI-E 3.0 x8 (internal LP) | ||
| 1 PCI-E 3.0 x16 (FH, 10.5" L) | ||
| 5 PCI-E 3.0 x8 (FH, 10.5" L) | ||
| Drive Bays / Storage | ||
| Hot-swap | 12 Hot-swap 3.5" drive bays | |
| 12 SATA3 ports by default; Optional 8 SAS3 + 4 NVMe/SAS3 | ||
| M.2 | 1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list) | |
| 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2 | ||
| Backplane | ||
| Backplane | 2U SAS/SATA backplane | |
| System Cooling | ||
| Fans | 4 Heavy duty 8cm PWM fans | |
| Power Supply | ||
| Power Supply | 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 127Vac | |
| 1000W: 200 – 240Vac | ||
| 1000W: 200 – 240Vdc (for CCC only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz | |
| 200-240Vac / 7 - 5A / 50-60Hz | ||
| 200-240Vdc / 7 - 5A (for CCC only) | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | ||
| Max: 83A / Min: 0A (200-240Vdc) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| Support CPU TDP 70-205W | ||
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| Product SKUs | ||
| Product SKUs | SuperServer 6029U-TR4 (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPU | 1 | Super X11DPU Motherboard | |
| Motherboard / Chassis | CSE-829U2TS-R1K02P-T | 1 | 2U Chassis | |
| Add-on Card / Module | AOC-2UR68-I4G-P | 1 | 2U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports, 1 internal PCI-E x8 3.0 slot, 1 PCI-E x16 3.0, and I PCI-E x8 3.0 (in x16 slot) | |
| Backplane | BPN-SAS3-826A-N4 | 1 | 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices | |
| Cable 1 | CBL-PWEX-0652 | 1 | 8 pin female to 2x RA(Right Angle) big 4 pin female power, 60/65CM, 18AWG,RoHS/REACH | |
| Cable 2 | CBL-PWEX-0673 | 1 | 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH | |
| Cable 3 | CBL-SAST-0655 | 1 | MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG | |
| Cable 4 | CBL-SAST-0656 | 1 | MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,39CM,SB,30AWG | |
| Cable 5 | CBL-SAST-0657 | 1 | MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG | |
| Air Shroud | MCP-310-82921-0N | 1 | Plastic air shroud for SC829U, 219U (X11 24DIMM, left side) | |
| Air Shroud | MCP-310-82922-0N | 1 | Plastic air shroud for SC829U, 219U (X11 24DIMM, right side) | |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot | |
| Riser Card | RSC-R2UW-4E8 | 1 | 2U LHS WIO Riser card with four PCI-E x8 slots | |
| Heatsink / Retention | SNK-P0068PS | 2 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Power Supply | PWS-1K02A-1R | 2 | 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH | |
| FAN 1 | FAN-0118L4 | 4 | 80 x 80 x 38 mm, 9.5K RPM, 4-pin PWM Fan, Hot |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Add-on card for internal M.2 NVMe | AOC-SLG3-2M2 | $ 54.00 | 1 | Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules | ||
| 2U Cable Management Arm | MCP-290-00128-0N &MCP-290-00127-0N | 1 | 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth) | |||
| Internal Drive Tray for Two 2.5" Drives | MCP-120-82916-0N | $ 90.00 | 1 | Internal drive plate Supports Two 2.5" Drive, PCI slots | ||
| Internal Drive Tray for Two 2.5" Drives | CBL-PWEX-0650CBL-0080L | 12 | Power cable for Two internal 2.5" drives | |||
| Internal Drive Tray for Two 2.5" Drives | CBL-0484L OrCBL-SAST-0654 OrCBL-SAST-0948 | 211 | SATA3 S-S CableminiSAS(iPass) to 4 SATA CableminiSAS HD to 4 SATA Cable | |||
| Cable for 4 NVMe Hybrid Drive Bays | 2 CBL-SAST-0929 &2 CBL-SAST-0972 | 1 | OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG | |||
| Hot-swap 3.5" to 2.5" NVMe Drive Tray | MCP-220-00138-0B | $ 43.00 | 1~4 | Tool-less black hot-swap 3.5-to-2.5 converter NVMe drive tray (Orange tab) | ||
| Hot-swap 3.5" to 2.5" SATA/SAS Drive Trays | MCP-220-00118-0B | $ 31.50 | 1~12 | Tool-less black hot-swap 3.5-to-2.5 converter HDD drive tray (Red tab) | ||
| Hot-swap 3.5" to 2.5" SATA/SAS Drive Trays | MCP-220-00043-0N | $ 26.00 | 0 | Black hot-swap 3.5-to-2.5 converter HDD drive tray (Red tab) | ||
| 2 Internal M.2 slots (1 SATA, 1 NVMe) | RSC-UMR-8 &CBL-SAST-0538 &MCP-120-82924-0N &MCP-310-21902-0N | 1 | 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE X8 | |||
| 2 Rear 2.5" Hot-swap SATA Drive Bays (Complete System Only) | MCP-240-82922-0N-OEM | $ 147.00 | 0 | Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U, tool-less | ||
| Storage Control Card and Cable(s) | AOC-S3008L-L8e &2x CBL-SAST-0593 | 1~2 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD,12G,INT,60CM,30AWG | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i &2x CBL-SAST-0593 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR &2x CBL-SAST-0593 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR-16DD & 2x CBL-SAST-0593 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG | |||
| Network Card(s) | AOC-SGP-i2/4 | 0 | Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350 | |||
| Network Card(s) | AOC-STGN-i1S/i2S | 0 | Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN | |||
| Network Card(s) | AOC-STGF-i2S | 0 | Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2 | |||
| Network Card(s) | AOC-STG-i4S | 0 | Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710 | |||
| Network Card(s) | AOC-STG-b4S | 0 | Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | |||
| Network Card(s) | AOC-STG-i2T | 0 | Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 | |||
| Network Card(s) | AOC-STGS-i1/2T | 0 | Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550 | |||
| Network Card(s) | AOC-STG-i4T | 0 | Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710 | |||
| Network Card(s) | AOC-STG-i2 | 0 | Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB | |||
| Network Card(s) | AOC-S25G-m2S | 0 | Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN | |||
| Network Card(s) | AOC-S40G-i2Q | 0 | Standard LP 2-port 40GbE controller, Intel Fortville XL710 | |||
| Network Card(s) | More | 0 | AOC Compatibility Matrix | |||
| CacheVault(s) | BTR-CV3108-U1 | $ 330.50 | 0 | CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra | ||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00043-0N | $ 26.00 | 0 | Black hot-swap 3.5" to 2.5" HDD tray | ||
| TPM security module | AOM-TPM-9670H-SAOM-TPM-9671H-S | 11 | TCG 2.0 compliant trusted platform module (TPM), Horizontal FFTCG 1.2 compliant trusted platform module (TPM), Horizontal FF | |||
| Intel VROC RAID Key | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Intel VROC RAID Key | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 | ||
| Intel VROC RAID Key | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
