| Motherboard |
| Motherboard | Super X11DAi-N |
| Processor/Cache |
| CPU | Dual Socket P (LGA 3647) |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s |
| Support CPU TDP 70-205W * |
| Cores | Up to 28 Cores |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
| * 200W/205W CPUs are supported under certain configurations. Special Low Tcase CPU SKUs are not supported. Please contact Supermicro Technical Support for additional information and specialized system optimization. |
| Must add Heatsink SNK-P0070APS4 when purchasing complete system from Supermicro. |
| System Memory |
| Memory Capacity | 16 DIMM slots |
| Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM |
| Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| DIMM Sizes | 3DS LRDIMM: 128GB |
| RDIMM: 64GB |
| LRDIMM: 64GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Note | DIMM capacities larger than 32GB are supported under certain configurations. Please contact Supermicro Technical Support for additional information and specialized system optimization. |
| On-Board Devices |
| Chipset | Intel® C621 chipset |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Controllers | Dual LAN with GbE from C621 |
| IPMI | ASPEED AST2500 |
| Audio | RealTek ALC888 7.1 High Definition Audio with S/PDIF header |
| Input / Output |
| SATA | 10 SATA3 (6Gbps) ports |
| NVMe | 2 NVMe support with optional cables |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 2 USB 3.1 ports (rear) |
| 6 USB 3.0 ports (4 rear, 2 front) |
| Audio | 7.1 HD Audio with optical S/PDIF |
| Video | 1 VGA port |
| Serial Port / Header | 1 COM port (header) |
| DOM | 2 SuperDOM (Disk on Module) ports |
| TPM | 1 TPM 2.0 Header |
| System BIOS |
| BIOS Type | UEFI 128M |
| Management |
| Software | Watchdog |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SSM , SPM , SUM |
| PC Health Monitoring |
| CPU | 4+1 Phase-switching voltage regulator |
| Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | Mid-Tower |
| Model | CSE-732D3-1K26B |
| Dimensions and Weight |
| Height | 16.7" (424mm) |
| Width | 7.6" (193mm) |
| Depth | 20.68" (525.3mm) |
| Gross Weight | 40 lbs (18.1 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED |
| System Information LED |
| Hard drive activity LED |
| Network activity LED |
| Ports | 2 front USB 3.0 Ports |
| 2 front HD/AC97 Audio Ports |
| Expansion Slots |
| PCI-Express | 4 PCI-E 3.0 x16 slots |
| 2 PCI-E 3.0 x8 slots |
| M.2 | Key: M-Key |
| Form Factor: 2260, 2280, 22110 |
| M.2 Interface: PCI-E 3.0 x4 |
| Drive Bays |
| Internal | Enterprise SATA HDD only recommended |
| 4 Fixed 3.5" drive bays (90° rotatable drive cage) |
| Peripheral Bay | 2x 5.25" standard drive bays |
| 4x 2.5" fixed drive bays (optional) |
| System Cooling |
| Fans | 1x 12cm rear exhaust fan |
| 1x 12cm front cooling fan |
| Optimized cooling technology for Whisper-Quiet Operation |
| Power Supply |
| Power Supply | 1200W PS2 Multi-output Power Supply |
| Power Efficiency | 94% |
| Total Output Power and Input | 1000W with Input 100 - 120Vac |
| 1200W with Input 120 - 240Vac |
| AC Input Frequency | 50-60 Hz |
| Dimensions (L x W x H) | 185 x 150 x 86 mm |
| Output Type | 24pin ATX |
| -12V | Max: 0.3A / Min: 0A |
| +12V | Max: 83A (100Vac - 120Vac) |
| Max: 99A (120Vac - 240Vac) |
| +5V | Max: 20A / Min: 0A |
| +3.3V | Max: 20A / Min: 0A |
| +5Vsb | Max: 3A / Min: 0A |
| Certification | Platinum Certified |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

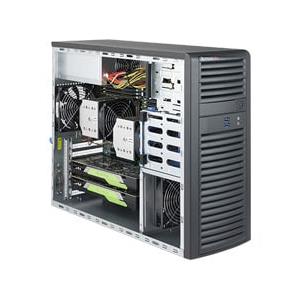

| Product SKUs | SYS-7039A-i (Black) |
