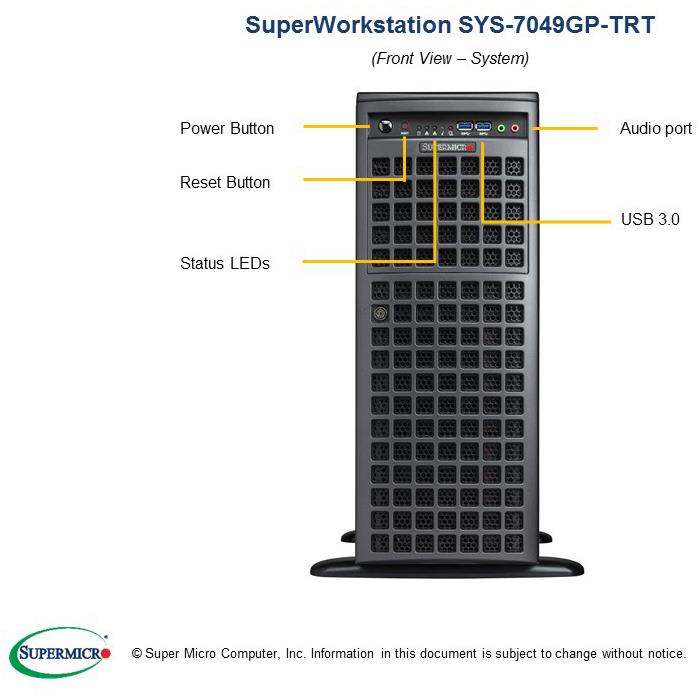

Supermicro SYS-7049GP-TRT Tower Barebone Dual Intel Processor
Barebone 4U Rackmountable Tower SuperServer, Dual Intel Xeon Scalable Processors Gen. 2, Intel C621 chipset, Up to 4TB DDR4 ECC 2933MHz memory, 8 Hot-swap 3.5in drive bays, Dual 10GBase-T LAN ports, Redundant 2200W Power Supply (CSE-747BTS-R2K20BP + MBD-X11DPG-QT)
This product is no longer available.
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 4 PCI-E 3.0 x16 (double-width) slots, 2 PCI-E 3.0 x16 (single-width) slots, 1 PCI-E 3.0 x4 (in x8) slot
4. 8 Hot-swap 3.5" drive bays
5. 2x 10GBase-T LAN ports
6. 1 VGA, 2 COM, 5 USB 3.0
7. 4 Heavy duty fans, 4 exhaust fans, and 2 active heatsink with optimal fan speed control
8. 2200W Redundant Power Supplies Titanium Level (96%)
9. GPU Kit for passive GPU support (MCP-320-74702-0N-KIT)
Extra Specifications for Supermicro SYS-7049GP-TRT Tower Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X11DPG-QT | |
| Processor/Cache | ||
| CPU | Dual Socket P (LGA 3647) | |
| Support CPU TDP 70-205W | ||
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| System Memory | ||
| Memory Capacity | 16 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Intel® X550 Dual Port 10GBase-T | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) | |
| 4 USB 2.0 ports (2 rear, 2 via headers) | ||
| Video | 1 VGA port | |
| Audio | 7.1 HD Jacks | |
| Serial Port/Header | 2 COM ports (1 rear, 1 Header) | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | SuperDoctor® 5 | |
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmountable / Tower | |
| Optional Rackmount Kit | ||
| Model | CSE-747BTS-R2K20BP | |
| Dimensions and Weight | ||
| Height | 18.2" (462mm) | |
| Width | 7.0" (178mm) | |
| Depth | 26.5" (673mm) | |
| Package | 27" (H) x 13" (W) x 38" (D) | |
| Weight | Net Weight: 46 lbs (20.9 kg) | |
| Gross Weight: 62 lbs (28.1 kg) | ||
| Available Colors | Dark Gray | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Network activity LEDs | |
| Hard drive activity LED | ||
| Power status LED | ||
| System Overheat & Power Fail LED | ||
| Ports | 2 Front USB 3.0 Ports | |
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x4 (in x8 slot) | |
| 4 PCI-E 3.0 x16 (double-width) slots | ||
| 2 PCI-E 3.0 x16 (single-width) slots | ||
| Drive Bays / Storage | ||
| Hot-swap | 8 Hot-swap 3.5" drive bays | |
| Optional 4x 2.5" NVMe supported | ||
| M.2 | 1 NVMe based M.2 SSD | |
| Form Factors: 2280, 22110 | ||
| System Cooling | ||
| Fans | 4 Heavy duty fans | |
| 2 Rear exhaust fans | ||
| 2 Optional Rear fans (required for Passive GPUs) | ||
| Heatsink | 2 Active heatsink with optimal fan speed control | |
| Power Supply | ||
| Power Supply | 2200W Redundant Power Supplies with PMBus | |
| Total Output Power and Input | 1200W with Input 100-127Vac | |
| 1800W with Input 200-220Vac | ||
| 1980W with Input 220-230Vac | ||
| 2090W with Input 230-240Vac | ||
| 2200W with Input 220-240Vac (for UL/cUL use only) | ||
| 2090W with Input 230-240Vdc (for CCC only) | ||
| AC Input Frequency | 50-60Hz | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| +12V | Max: 150A / Min: 0A (200-220Vac) | |
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 100A / Min: 0A (100-127Vac) | ||
| Max: 174.17A / Min: 0A (230-240Vac) | ||
| Max: 183.3A / Min: 0A (220-240Vac) | ||
| 5VSB | Max: 1A / Min: 0A | |
| Output Type | Backplanes (gold finger) | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 7049GP-TRT (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPG-QT | 1 | Super X11DPG-QT Motherboard | |
| Motherboard / Chassis | CSE-747BTS-R2K20BP | 1 | 4U Chassis | |
| Backplane | BPN-SAS3-747TQ-N4 | 1 | 8-port 4U/Tower SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices | |
| Cable 1 | CBL-0188L-02 | 2 | MINI SAS-4 SATA,INT,64/54/44/34CM,64CM SB,30AWG | |
| Parts | MCP-260-00042-2N | 1 | STD I/O shield for X9/X10/X11 server MB with EMI Gasket & Mylar | |
| Manual | MNL-2045-QRG | 1 | 7049GP-TRT Quick Reference Guide | |
| Heatsink / Retention | SNK-P0070APS4 | 2 | 4U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform | |
| * Power Supply | PWS-2K20A-1R | 2 | 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm | |
| * Power Distributor | PDB-PT747-6824 | 1 | Power Distributor Board is for 4U GPU solution using regular | |
| * Cable 2 | CBL-0071L | 1 | CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG | |
| * Cable 3 | CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) | |
| * Cable 4 | CBL-0216L | 4 | 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM) | |
| * Cable 5 | CBL-0286L | 2 | 4 to 4 pin rear fan pwr ext w/ square header, 30cm (PWM). 24AWG | |
| * Cable 6 | CBL-PWEX-1040 | 4 | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |
| * FAN 1 | FAN-0082L4 | 2 | 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745 | |
| * FAN 2 | Fan-0114L4 | 2 | 92x38mm 4-PIN PWM FAN W/ HUS for SC747 | |
| * FAN 3 | FAN-0138L4 | 2 | 92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU | |
| * Front Bezel | MCP-210-74701-0B | 1 | SC747 plastic front bezel | |
| * Drive Tray(s) | MCP-220-00073-0B | 3 | Black 5.25 drive tray w/o rail (SC747) | |
| * Drive Tray(s) | MCP-220-00094-0B | 8 | Black gen 6.5 hot-swap 3.5 inch HDD Tray | |
| * Front Panel | MCP-280-74702-0N | 1 | SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio) | |
| * Parts | MCP-290-74701-0B | 1 | Black plastic top cover for SC747 | |
| * Parts | MCP-290-74702-0N | 1 | GPU Card Holder (11 slots) for SC747TQ, SC842 | |
| * Parts | MCP-290-74703-0B | 1 | fixed 3.5" dummy cover for SC747 | |
| * Parts | MCP-290-74709-0B | 1 | Plastic feet (2 pcs/set) for 4U tower chassis, black color |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Passive GPU Kit | MCP-320-74702-0N-KIT | $ 114.50 | 1 | X11 GPU Kit for passive GPU/Coprocessor support | ||
| GPU Dummy Assembly | MCP-240-00096-0N | $ 33.50 | 0 | SC747B GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack | ||
| HDD Converter | MCP-220-93801-0B | $ 31.00 | 0 | Black Hotswap Gen 6 3.5 to 2.5 HDD Tray (SC747, 936, 938 and Blade) | ||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i &2x CBL-SAST-0699 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD SATA/SAS drives | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR &2x CBL-SAST-0699 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60;MINI SAS HD,12G,INT,30AWG | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR-16DD& 2x CBL-SAST-0699 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60;MINI SAS HD,12G,INT,30AWG | |||
| Super Cap for LSI 3108 | 1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05 | 0 | LSI Supercap w 8GB CV 24 cable (whole kit) & Supercap mounting bracket for PCI-E location | |||
| NVMe Kit | AOC-SLG3-4E4T-O | 1 | 4 Port NVMe PCIE X16 Retimer,HF | |||
| NVMe Kit | CBL-SAST-0847 | $ 55.50 | 4 | OCuLink v.1.0 ,INT,PCIe NVMe SSD, 76CM, 11D38F27D,34AWG,RoHS | ||
| NVMe Kit | MCP-220-00150-0B | $ 33.50 | 4 | NVMe version of 3.5" HDD Tray (Convert 3.5" to 2.5" for 747/936/938) | ||
| Intel VROC RAID Key | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Intel VROC RAID Key | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 | ||
| Intel VROC RAID Key | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| Network Card(s) | AOC-S100G-m2C | 0 | Standard low-profile 2-port QSFP28 100GbE PCI-E 3.0 x16, based on Mellanox ConnectX-4 EN chipset | |||
| Network Card(s) | AOC-S40G-i2Q | 0 | Standard Low-Profile Dual-port 40GbE controller with 2x QSFP ports | |||
| Network Card(s) | AOC-S25G-b2S | 0 | Standard Low-Profile Dual-port 25GbE controller with 2 SFP28 ports, based on Broadcom BCM57414 | |||
| Network Card(s) | AOC-S25G-m2S | 0 | Standard low-profile 2-port 25GbE with SFP+, based on Mellanox ConnectX-4 LX EN chipset | |||
| Network Card(s) | AOC-STG-b4S | 0 | Standard Low-profile Quad-port 10GbE controller with 4x SFP+ ports | |||
| Network Card(s) | AOC-STG-i4S | 0 | Standard Low-Profile Quad-port 10GbE controller with 4x SFP+ ports | |||
| Network Card(s) | AOC-STGN-i2S | 0 | Standard Low-Profile Dual-port 10GbE controller with 2x SFP+ ports | |||
| Network Card(s) | AOC-STGN-i1S | 0 | Standard Low-Profile Single-port 10GbE controller with 1x SFP+ port | |||
| Network Card(s) | AOC-STG-i2T | 0 | Standard Low-Profile Dual-port 10GbE controller with 2x RJ45 (10GBase-T) ports | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard Low-Profile Quad-port GbE controller with 4x RJ45 ports | |||
| Network Card(s) | AOC-SGP-i2 | 0 | Standard Low-Profile Dual-port GbE controller with 2x RJ45 ports | |||
| Mounting Rails | MCP-290-00059-0B | $ 106.50 | 1 | Rail set+handles, quick/quick, optional for 4U 17.2"W tower | ||
| Front Bezel | MCP-210-74703-0B | $ 26.00 | 1 | Front bezel cover (for 5.25" bay) for rackmount | ||
| DVD Kit | DVM-LITE-DVDRW24-HBT1 | $ 44.00 | 1 | BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF | ||
| DVD Kit | CBL-0082L | $ 17.00 | 1 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG | ||
| DVD Kit | CBL-0044L | $ 17.00 | 1 | SATA CABLE 57.5CM FLAT S-S PBF.26AWG flat | ||
| TPM Security Module | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable vertical TPM 2.0 provisioned for client,RoHS | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
