- Supermicro SYS-7089P-TR4T 7U Barebone Octa Intel Processor

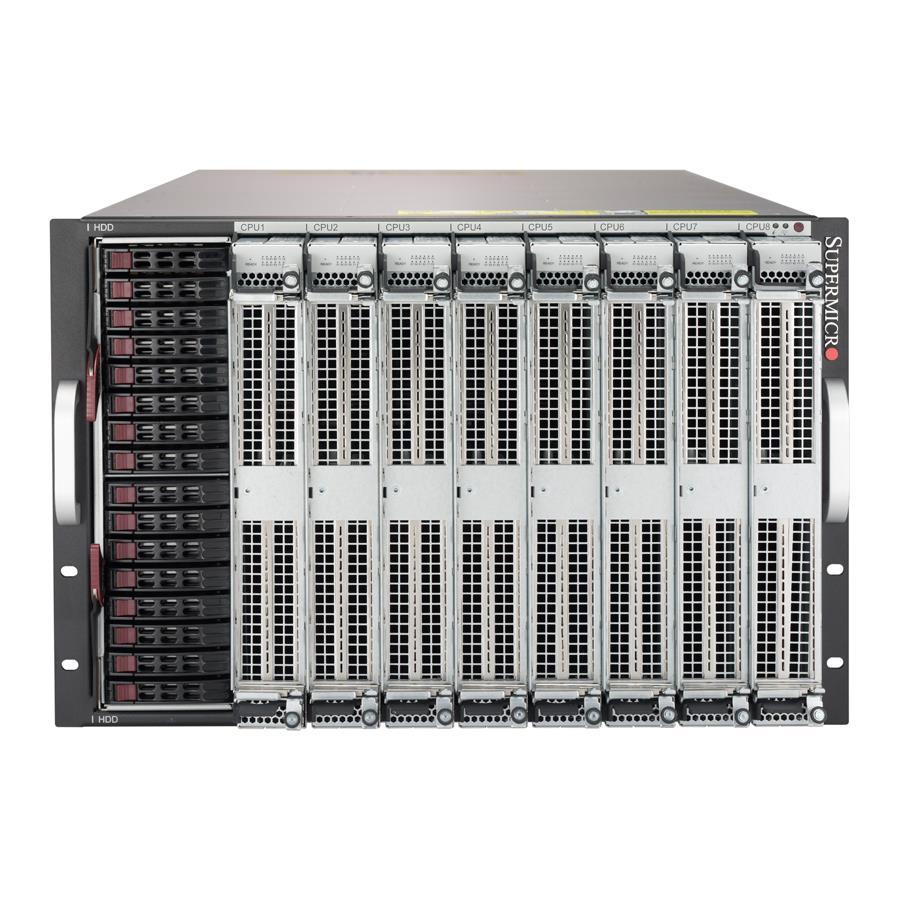

Supermicro SYS-7089P-TR4T 7U Barebone Octa Intel Processor
• 8-Way MP, 224 Cores
• Virtualization, ERP, CRM
• In-Memory Database Application
• Research lab/National Lab
• Scale-up HPC
Barebone 7U Rackmountable SuperServer, Octa Intel Xeon Scalable Processors Gen. 2, Intel C621 chipset, Up to 24TB DDR4 ECC 2933MHz memory, 16 Hot-swap 3.5in drive bays, 4 10Gb LAN (SIOM), Redundant 1600W Power Supply (CSE-718SAC-R4800 + MBD-X11OPi)
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (8 CPU with 96/48 DIMMs are the recommended configurations for the best performance.) Please contact your Supermicro sales rep for special 4 CPU with 48/24 DIMMs requirements with fees.96/48 DIMMs are the recommended memory population configurations for the best performance.
1. Octa Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 96 DIMMs; up to 24TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 23 or 39 (OEM) PCI-E 3.0 slots include: 8 FH x16 PCI-E cards or 8 GPUs or 16 U.2 NVMe + 8 FHFL x16 PCI-E cards or 16 U.2 NVMe + 8 FHFL x16 PCI-E cards or 16 U.2 NVMe + 2 LP x8 (in x16) PCI-E internal cards (storage module) + 5 FHHL x16 PCI-E cards (rear)(Up to 39 PCI-E 3.0 slots for OEM)
4. 4 10Gb LAN (SIOM), 1 dedicated LAN for IPMI Remote Management, 1 VGA, 2 USB 2.0, 1 COM via KVM
5. 16 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards); 8x 2.5" or 6x 3.5" internal drive bays (w/ RAID cards)
6. 8x 9cm Hot-swap counter-rotating rear fans
7. 5x 1600W (N+2) Redundant Power Supplies, Titanium Level (96%)
Extra Specifications for Supermicro SYS-7089P-TR4T 7U Barebone Octa Intel Processor
| Motherboard | ||
| Motherboard | Super X11OPi-CPU | |
| Processor/Cache | ||
| CPU | Support CPU TDP 70-205W | |
| Octa Socket P (LGA 3647) | ||
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 8S-3 UPI up to 10.4GT/s | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.0 or above is required to support 2nd Gen Intel® Xeon® Scalable processors | |
| System Memory | ||
| Memory Capacity | 96 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 24TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| Storage | Intel C621 including 2 SATA3 (SATA DOM), 2 M.2 (SATA3/PCIe), 8 HDD (SATA3), 1 TPM header | |
| Network Controllers (via AOM) | 4-port 10GBase-T Ethernet SIOM (Intel® X550 controller) | |
| IPMI (via AOM) | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| Storage | 2 SATA DOM (SATA3) ports | |
| 2 M.2 (SATA3/PCI3) ports | ||
| 8 HDD (SATA3) ports | ||
| LAN | 4 10GBase-T ports via SIOM | |
| 1 dedicated LAN port for IPMI | ||
| USB | 2 USB 2.0 ports via KVM port | |
| Serial Port / Header | 1 Fast UART 16550 ports: 1 front via KVM port | |
| System BIOS | ||
| BIOS Type | 16MB SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 7U Rackmountable | |
| Rackmount Kit: Comes with the system | ||
| Model | CSE-718SAC-R4800 | |
| Dimensions and Weight | ||
| Height | 12.2" (310mm) | |
| Width | 17.63" (448mm) | |
| Depth | 28.87" (733mm) | |
| Package | 38.5" (H) x 29.9" (W) x 47.2" (D) | |
| Weight | Gross Weight: 208 lbs (94.35 kg) | |
| Net Weight: 180 lbs (81.65 kg) | ||
| Available Colors | Black | |
| Drive Bays | ||
| Hot-swap | 16 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards) | |
| 8x 2.5" or 6x 3.5" internal drive bays (w/ RAID cards) | ||
| Expansion Slots | ||
| PCI-Express | 23 PCI-E 3.0 slots total including: 8 FH x16 PCI-E cards or 8 GPUs or 16 U.2 NVMe + 8 FHFL x16 PCI-E cards or 16 U.2 NVMe + 2 LP x8 (in x16 slot) PCI-E internal cards (storage module) + 5 FHHL x16 PCI-E cards (rear) | |
| Up to 39 PCI-E 3.0 slots for OEM | ||
| Backplane | ||
| Backplane | 2x 6-port 12G backplane supports 6x 2.5" SAS3/SATA3 HDD/SSD | |
| System Cooling | ||
| Fans | 8x 9cm 10.5K-10.8K RPM Hot-Swap Counter-rotating Rear Fans | |
| Power Supply | ||
| Power Supply | 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | 1600W/1000W | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 13 - 9A / 50-60Hz | |
| 200-240Vac / 10 - 8A / 50-60Hz | ||
| +12V | Max: 83.3A / Min: 0A (100-127Vac) | |
| Max: 133A / Min: 0A (200-240Vac) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 7089P-TR4T (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Chassis | CSE-718SAC-R4800 | 1 | CSE-718SAC-R4800 7U Chassis | |
| Motherboard | X11OPi-CPU | 8 | Super X11OPi-CPU Motherboard | |
| Add-on Card / Module | AOC-MTG-I4TM-P | 1 | [NR]AOC-MTG-I4TM-P | |
| Add-on Card / Module | AOM-X11OPI-HDD-P | 1 | Storage add-on module for X11OPI series MB | |
| Add-on Card / Module | AOM-X11OPI-KVM-P | 1 | KVM board for X11OPI Eight Way system | |
| Add-on Card / Module | AOM-X11OPi-LBG-P | 1 | PCH and BMC Add on Module for X11OPi series 7u 8-way system, | |
| Backplane | BPN-SAS3-213A | 1 | 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Backplane | BPN-X11OPI | 1 | Midplane for X11 8-way 7U server 7089P, support hot plug PCIE | |
| Cable 1 | CBL-0218L | 1 | USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG | |
| Cable 2 | CBL-0449L | 1 | HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG | |
| Cable 3 | CBL-SAST-0508-02 | 2 | MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG | |
| Riser Card | RSC-BLG-E16R | 8 | RSC-BLG-E16R | |
| Riser Card | RSC-S-6-OP | 8 | 1U LHS Riser Card with one PCI-E 3.0 x16 slot for the X11OPI | |
| Riser Card | RSC-X11OPI-PCIE | 5 | PCIE riser card for X11OPI series 7U 8 way system,RoHS | |
| Heatsink / Retention | SNK-P0067PS | 8 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Power Supply | PWS-1K62A-1R | 5 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH | |
| FAN 1 | FAN-0171L4 | 8 | 92x92x76 mm, 10.5K-10.8K RPM, Counter-rotating Exhaust Fan for SC718 X10 8-way Server |
