| Motherboard |

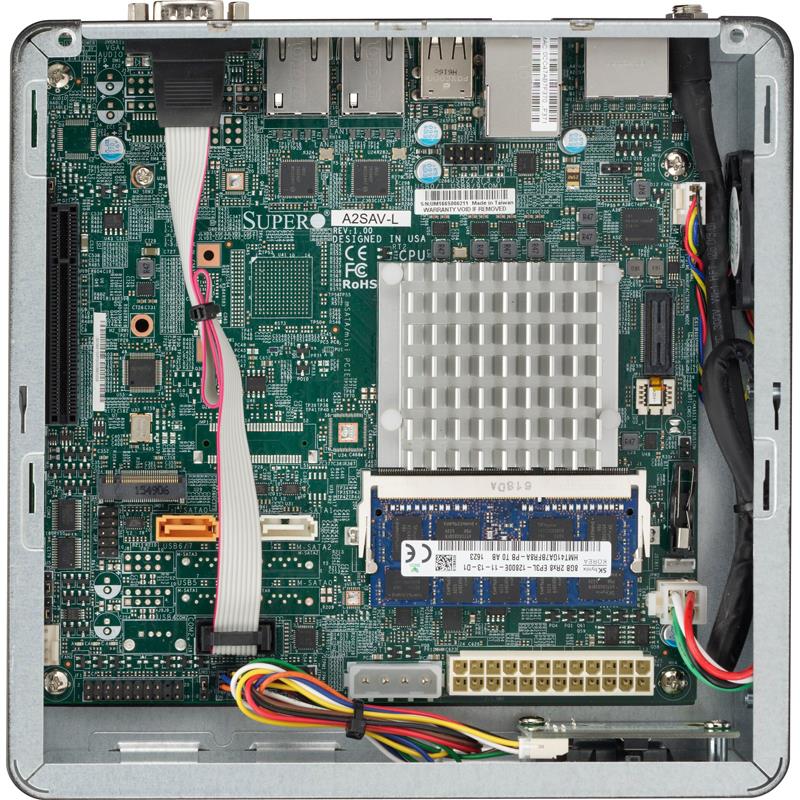

| Motherboard | Super A2SAV-L |
| Processor/Cache |
| CPU | System-on-Chip |
| FCBGA 1296 |
| Intel® Atom® Processor E3940, 4 Core, 64-bit, 14nm |
| System Memory |
| Memory Capacity | 1x 204-pin DDR3 SO-DIMM socket |
| Memory Type | 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3, 204-pin gold-plated DIMMs |
| DIMM Sizes | 8GB, 4GB, 2GB |
| Memory Voltage | 1.5 V, 1.35 V |
| On-Board Devices |
| SATA | SoC controller for 2 SATA3 (6Gbps) |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Dual GbE LAN with Intel i210IT controller |
| Video | Intel HD Graphics |
| Input / Output |
| SATA | 2 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 2 USB 2.0 (rear) |
| 2 USB 3.0 (rear) |
| COM Port | 3 COM ports (1 rear, 2 headers) 1 in RJ45, 1 in RS232, and 1 in RS485 |
| DOM | 1 SATA DOM (Disk on Module) power connector |
| Video | 1 VGA, 1 DP (Display Port), 1 HDMI, 1 Intel HD Graphics |
| Chassis |
| Form Factor | Mini-ITX |
| Model | CSE-101S |
| Dimensions |
| Width | 7.68" (195mm) / 15" (381mm) - pkg. |
| Height | 1.75" (44.5mm) / 10.87" (276mm) - pkg. |
| Depth | 7.68" (195mm) / 5.59" (142mm) - pkg. |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) |
| Net Weight: 7.5 lbs (3.4 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED (Hard drive activity LED) |
| Expansion Slots |
| PCI-Express | M.2 PCIe 2.0 x2, M Key 2242/2280 |
| Drive Bays |
| Internal | 1x 2.5" internal drive tray |
| System Cooling |
| Fans | 1x 4cm high performance PWM fan; support up to 2 chassis fans |
| Power Supply |
| Power Supply | 60W DC Power Adapter |
| System BIOS |
| BIOS Type | 64Mb SPI Flash EEPROM with AMI UEFI BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| ACPI 5.0 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| UEFI |
| Management |
| Software | Watch Dog |
| SuperDoctor® 5 |
| Power Configurations | ACPI Power Management |
| Control of power-on for recovery from AC power loss |
| ATX Power connector |
| CPU thermal trip support for processor protection |
| Fan | Fans with tachometer status monitoring |
| Status monitor for speed control |
| Low noise fan speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |
| Product SKUs | SuperServer E200-9AP (Black) |
