| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Memory Capacity | Up to 64GB Unbuffered ECC/non-ECC UDIMM, in 4 DIMM slots |
| 128GB Registered ECC RDIMM |
| Memory Voltage | 1.2V |
| Memory Type | 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM |
| On-Board Devices |
| Chipset | System on Chip |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I350-AM2 Dual LAN with 10Gbase-T Dual LAN via SoC Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Graphics | Aspeed AST2400 BMC |
| SATA | SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| RSTe |
| Input / Output |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| 2 RJ45 10GBase-T ports |
| 1 RJ45 Dedicated IPMI LAN port |
| SATA | 6 SATA3 (6Gbps) port |
| USB | 2 USB 3.0 ports (2 rear) |
| 4 USB 2.0 ports (4 headers, Type A)) |
| Video Output | 1 VGA port |
| Serial Port / Header | 1 COM Port (1 header) |
| TPM | TPM Header |
| System BIOS |
| BIOS Features | UEFI 2.4 |
| ACPI 5.0 |
| USB Keyboard support |
| RTC (Real Time Clock) Wakeup |
| PCI 3.0 |
| Hardware BIOS Virus protection |
| SMBIOS 2.8 |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Management |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| CPU Fan auto-off in sleep mode |
| Software | Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog |
| Product SKUs |
| Product SKUs |
| Physical Stats |

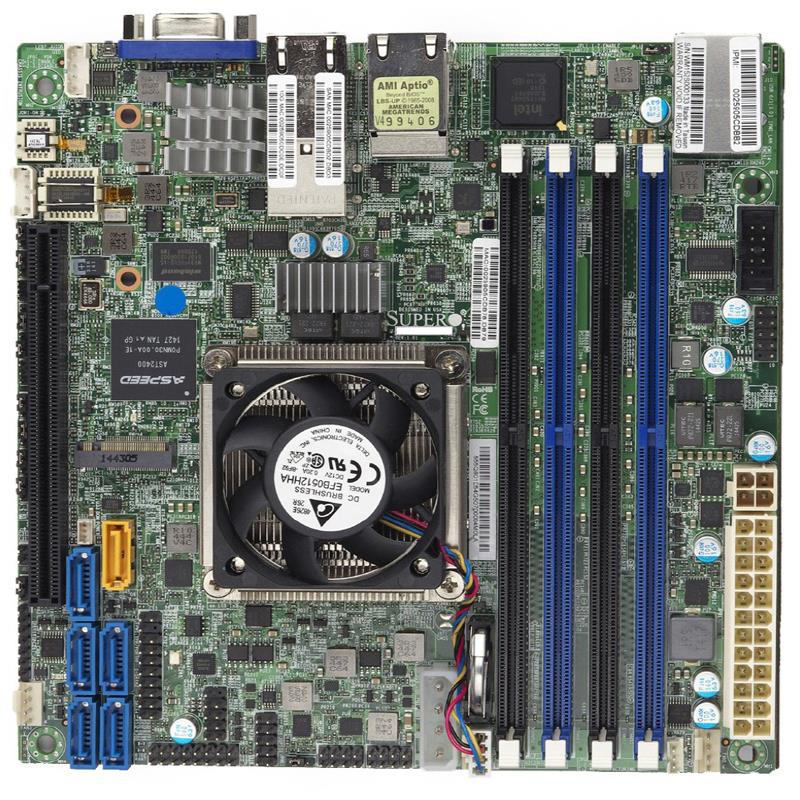

| Form Factor | Mini-ITX |
| Dimensions | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor/Cache |
| CPU | Intel® Xeon® Processor D-1587. |
| Single Socket FCBGA1667 supported, CPU TDP support 65W |
| Cores / Cache | 16 cores, 32 threads / 24MB cache |
| Expansion Slots |
| PCI-E | 1 PCI-E 3.0 x16 |
| M.2 | 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280 |
| PC Health Monitoring |
| Voltage | +1.8V, +12V, +3.3V, +5V, 4 fans with tachometer monitoring, Chassis intrusion header, Memory, Memory Voltages, Monitors for CPU Cores, Supports system management utility, System level control, System temperature |
| FAN | 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI |
| LED | CPU / System Overheat LED |
| Other Features | 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Hyper-Speed Technology hardware acceleration, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL |
| Operating Environment |
| Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) |
