• Optimized for X11 WIO (W series) motherboards
• Support Single and Dual Intel and AMD processors
• Equipped 500W Redundant Power Supply Platinum
• 12Gbps Backplane Support 4x 3.5 hot-swap SAS/SATA

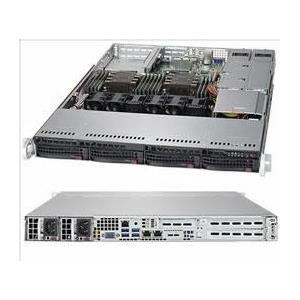

Rackmount 1U for Intel/AMD Single or Dual CPU motherboards. 3x Expansion Slots. 500W Redundant 80 Plus Platinum Power Supply - Includes : 4x 3.5in Hot-Swap Drive bays, Mounting Rails Kit - SC815TQC-R504WB2 (Black)
• 4 x 3.5 hot-swap SAS/SATA
• 3 x 40x56mm counter-rotation PWM fan(s)
• 1U 4-Port 12Gbps Backplane Support 4x3.5
• SAS or enterprise SATA HDD only recommended
• 2 full-height & full-length expansion slot(s) , 1 low-profile expansion slot(s)
• 1U 500W Redundant Single Output power supply W/PMbus 54.5mm width
• Optimized for X11 WIO (W series) motherboards, support MB size up to 12.3 x 13.4
| Main Specifications | ||
| Device Type | SuperChassis | |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 25.6" (650 mm) | |
| Color | Black | |
| Form Factor | 1U Chassis | |
| Max Mainboard Size | Optimized for X11 WIO (W series) motherboards, support MB size up to 12.3" x 13.4" | |
| Weight | 36 lbs (16.33 kg) | |
| Processor | ||
| Compatible Processors | Single and Dual Intel and AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 low-profile expansion slot(s) | |
| 2 full-height & full-length expansion slot(s) | ||
| Drive Bays | ||
| Hot-swap | 4 x 3.5" hot-swap SAS/SATA - SAS or enterprise SATA HDD only recommended | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button | |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED, Unit Identification (UID) LED | |
| System Cooling | ||
| Fans | 3 x 40x56mm counter-rotation PWM fan(s) | |
| 3x FAN-0156L4 | ||
| Parts List - (Items Included) | ||
| Backplane | 1x BPN-SAS3-815TQ | |
| 1U 4-Port 12Gbps Backplane Support 4x3.5 | ||
| Drive Trays | 4x MCP-220-00075-0B | |
| Mounting Rails | 1x MCP-290-00054-0N | |
| Parts | 1x MCP-120-00030-0N, 2x MCP-120-00053-0N | |
| Operating Environment (System) | ||
| Operating Temperature Range | Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) | |
| Operating Temperature Range: 5C - 35C (41F - 95F) | ||
| Non-Operating Temperature Range: -40C - 70C (-40F - 158F) | ||
| Operating Relative Humidity Range: 8% - 90% (non-condensing) | ||
| Power Supply | ||
| Certification | 80PLUS Platinum Certified | |
| Power Supply | 1U 500W Redundant Single Output power supply W/PMbus 54.5mm width | |
| 2x PWS-504P-1R, 1x MCP-250-81502-0N | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, TUV/CB, UL/CUL | |
| Standard Parts List | ||
| Accessory | 1x CSE-PT93L-B, 1x CSE-PT0135, 3x MCP-340-00035-0B | |
| Front Panel | 1x FPB-FP815U | |
| Power Distributor | 1x PDB-PT112-S2424 | |
| Rear Window | 1x MCP-240-00098-0N | |
| Parts List | ||
| Cables | 1x CBL-0335L, 2x CBL-PWCD-0160-IS | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
