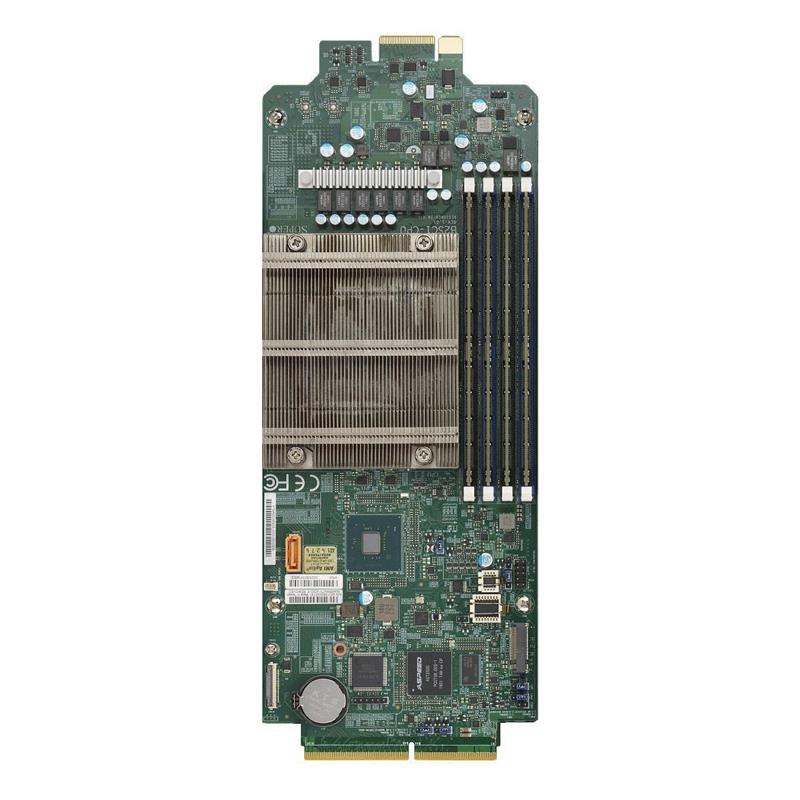

  2. Supermicro B2SC1-CPU-P Motherboard Proprietary Single Socket LGA-1151 (Socket H4) Intel Xeon E-2100 and Intel Xeon E-2200 Processors
Supermicro B2SC1-CPU-P Motherboard Proprietary Single Socket LGA-1151 (Socket H4) Intel Xeon E-2100 and Intel Xeon E-2200 Processors

Supermicro B2SC1-CPU-P Motherboard Proprietary Single Socket LGA-1151 (Socket H4) Intel Xeon E-2100 and Intel Xeon E-2200 Processors

Motherboard Proprietary, Support Single Socket LGA-1151 (Socket H4), Supporting Intel Xeon E-2100 Processor and Intel Xeon E-2200 Processor. Up to 128GB DDR4-2600MHz UDIMM in 4 DIMM slots, Chipset: Intel C246, On-Board: 1 SATA3 (6 Gbps) Port, 1 SATA DOM, LAN ports: Dual LAN with 1GbE LAN, Includes M.2 Form Factor: 2280/22110 (Key: M-Key), (MBD-B2SC1-CPU-P)

Contact us for volume discounts

    This combination does not exist.

    InStock
    2 lb
    Email For Price

    1. 8th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
    2. Intel® C246
    3. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
    4. 1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110
    5. 1 SATA3 (6 Gbps) ports;
    6. Dual LAN with 1GbE LAN via Intel® i350-AM2

    Extra Specifications for Supermicro B2SC1-CPU-P Motherboard Proprietary Single Socket LGA-1151 (Socket H4) Intel Xeon E-2100 and Intel Xeon E-2200 Processors

    Product SKUs
    Product SKUsMBD-B2SC1-CPU
    Physical Stats
    Form FactorProprietary
    Dimension4.8" x 12.6" (12.19cm x 32cm)
    Processor
    CPUSingle Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
    Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
    System Memory
    Memory Capacity4 DIMM slots
    Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz
    Memory Type2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
    DIMM Sizes4GB, 8GB, 16GB, 32GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors
    Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetIntel® C246
    SATA1 SATA3 (6 Gbps) ports
    IPMIASPEED AST2500
    Graphics1 ASPEED AST2500 BMC port(s)
    Network ControllersDual LAN with 1GbE LAN via Intel® i350-AM2
    Input / Output
    DOM1 SATA DOM (Disk on Module) power connector support
    TPM1 TPM Header
    Expansion Slots
    PCIeN/A
    M.2Key: M-Key
    M.2 Interface: 1 SATA/PCIe 3.0 x4
    Form Factor: 2280/22110
    System BIOS
    BIOS Type128MB SPI Flash EEPROM with UEFI BIOS
    BIOS FeaturesDMI (SMBIOS) 2.7
    ACPI 6.1
    UEFI 2.6
    Management
    SoftwareSUM , SPM , SSM , IPMI2.0 , Watchdog
    System Management SoftwareIPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    PC Health Monitoring
    VoltageSystem temperature, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LEDPower LED
    TemperatureMonitoring for CPU and chassis environment
    Other FeaturesRoHS
    M.2 NGFF connector
    ACPI power management
    System level control

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
