- Supermicro PWS-711-1R 1U 710W DC Power Supply Module

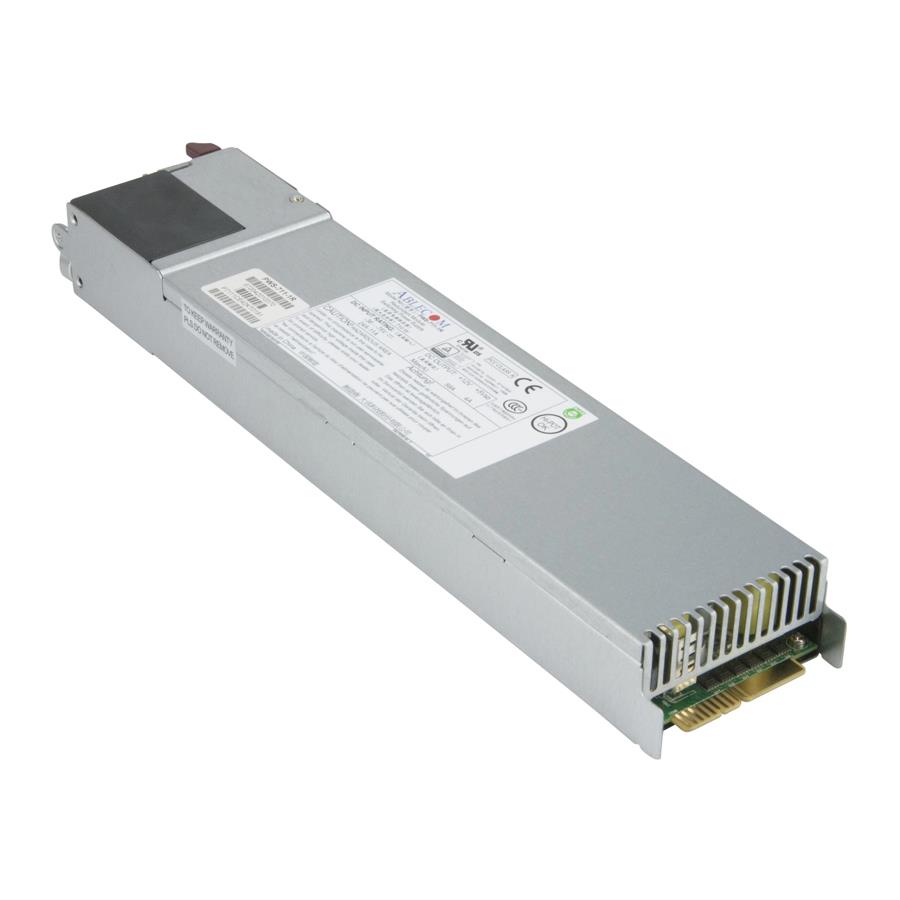

Supermicro PWS-711-1R 1U 710W DC Power Supply Module
• Comply with RoHS requirements
• Designed for Supermicro 1U Server
• 710W output power at 89% efficiency
• Simplicity of active power factor correction
1U, 710W DC Power Supply Module
The Supermicro PWS-711-1R is a DC input power supply capable of supplying 710W output power at 89% efficiency.
Enjoy the simplicity of active power factor correction (PFC) and automatically correct DC input for a full range of voltages.
Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems.
This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit.
Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 150,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU.
All materials contained comply with RoHS requirements and is certified by Supermicro.
Extra Specifications for Supermicro PWS-711-1R 1U 710W DC Power Supply Module
| Main Specifications | ||
| Device Type | Power supply | |
| Height (Rack Units) | 1U | |
| Weight | 3.2 lbs | |
| Power | ||
| Power Device | Internal | |
| Power Device | ||
| Power Provided | 710 Watt | |
| PCF | Power Factor Correction (PFC) | |
| Frequency Required | 50/60 Hz | |
| Input Voltage | AC 100-240 V | |
| Power Output Connectors Details | Power 20 pin ATX, Power 24 pin ATX | |
| Miscellaneous | ||
| Compatible Products | SC815 S-710CB, S-710CV, TQ-710B, TQ-710V, SC825 TQ-710LPB, TQ-710LPV, SC836 TQ-R710B | |
