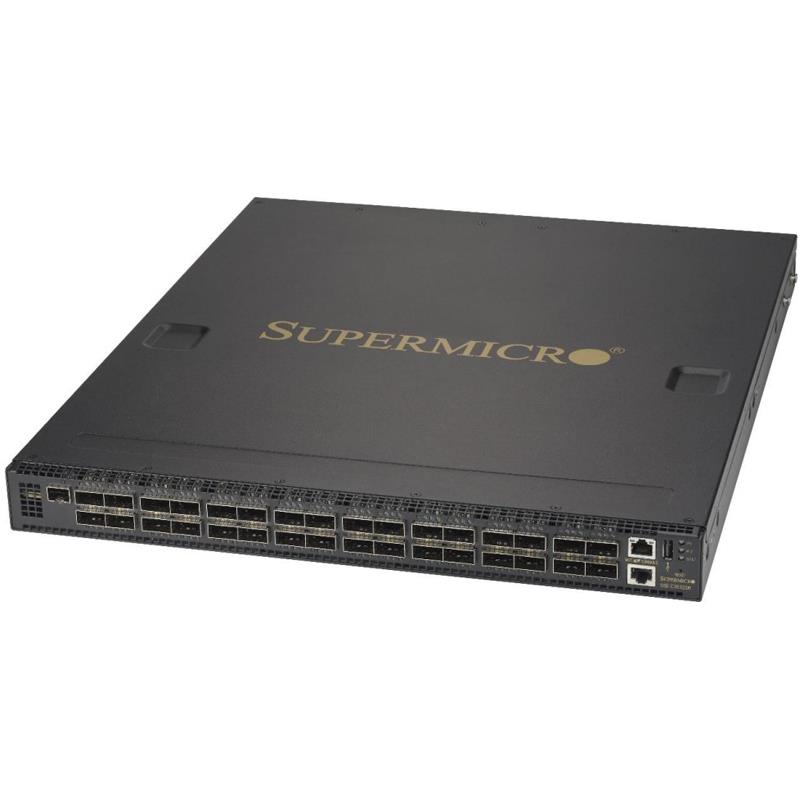

Supermicro SSE-C3632SR-SMCPL100G Layer 2/3 Ethernet Switch with SMIS loaded

The switch comes with preloaded Supermicro OS
Can be configured for either 40Gbps or 100Gbps port
Optimize deployment in standalone or top-of-rack environments
Ideal for deployment in Data Center, Cloud and Enterprise environments

32-port QSFP28 Ethernet Network Switch Layer 2/3 with SMIS loaded, reverse air flow, RoHS

This product is no longer available.

The SSE-C3632SR-SMCPL100G Layer 2/3 Ethernet Switch is the latest entry from Supermicro in the 100G switching. This switch comes with preloaded Supermicro OS.
Depending on deployment connectivity, physical Ethernet QSFP28 ports in SSE-C3632S can be configured for either 40Gbps or 100Gbps port, thus allow flexible physical connectivity option between spine layer and leaf layer in the data center Ethernet fabric.
This switch can also be used as high density 25G switch by using split cables to connect up to 128 25G ports.
Compact 1U form factor gives users the ability to optimize deployment in standalone or top-of-rack environments. A rail kit facilitates rack-mounting installations. Reverse-airflow model, the SSE-C3632SR-SMCPL100G, is available for use in large data centers with alternating hot and cold equipment aisles.
These switches are ideal for deployment in Data Center, Cloud and Enterprise environments with the capability of handling access for the most demanding applications.

Extra Specifications for Supermicro SSE-C3632SR-SMCPL100G Layer 2/3 Ethernet Switch with SMIS loaded

Main Specifications
Device Type	Switch - 32 ports - L3 - managed
Form Factor	1U form factor
Dimensions (WxDxH)	433.8 x 520 x 44 mm (17.07 x 20.47 x 1.73 inches)
Weight	Net weight: 10.18kg (with 2 PSUs)
Position	Reverse Airflow (back to front)
Networking
Ports	32 x QSFP28 Ethernet ports (100Gbps or 40Gbps), RJ-45 Gigabit Ethernet management port, RJ-45 serial console, 2x USB Ports
Control Plane	Intel Rangeley CPU, 4Gbyte DRAM, 8Gbyte SSD
Data Forwarding	Full Duplex 3.2Tbps Switching Capacity, Non-blocking, wire-speed Layer 3 Routing
Routing Protocol	IPv4 unicast routing - static routing, RIP, OSPF and BGP
	IPv6 unicast routing - static routing
	VRRP (Virtual Router Redundancy Protocol)
Management Features	Web-based management interface: HTTP, HTTPS, Telnet (7 sessions)
	Industry standard CLI with telnet, SSH or local management port: Scripting capability, Command completion, Context sensitive "Help"
	Multiple levels of user privileges (CLI and Web UI), SNMP v1/v2/v3, Four RMON Groups - (1, 2, 3 and 9), Logging - syslog, Configuration file - upload / download
Power
Power Device	800W@ 12V/65 A
Power Consumption Operational	< 650 Watts
Power Redundancy	Redundant hot-pluggable power supplies
Voltage Required	AC Input: 100-127/200-240 V, 50/60 Hz
Switch
Switch	Link Aggregation- 128 groups w/ 8 members per group, LACP Support, MLAG Support, Link Layer Discovery Protocol (802.1AB), Jumbo Frame Support, Port Mirroring - N to 1. Tx & Rx Configurable
VLAN
VLAN	802.1Q tagging, port and protocol based, 4K VLANs, Dynamic VLAN Support (GVRP)
Quality of Service and DiffServ
Quality of Service and DiffServ	8 priority queues per port, Metering / Rate limiting, Adjusted WRR and Strict Priority Scheduling
Multicast
Multicast	IGMP Snooping v1/ v2/ v3, IGMP, PIM
Miscellaneous
Features	Switch access password protection, Layer 2 / 3 / 4 Access control Lists, RADIUS and TACACS+ Authentication, SSH / SSL Encryption
Compliance Standards	RoHS Compliant 6/6

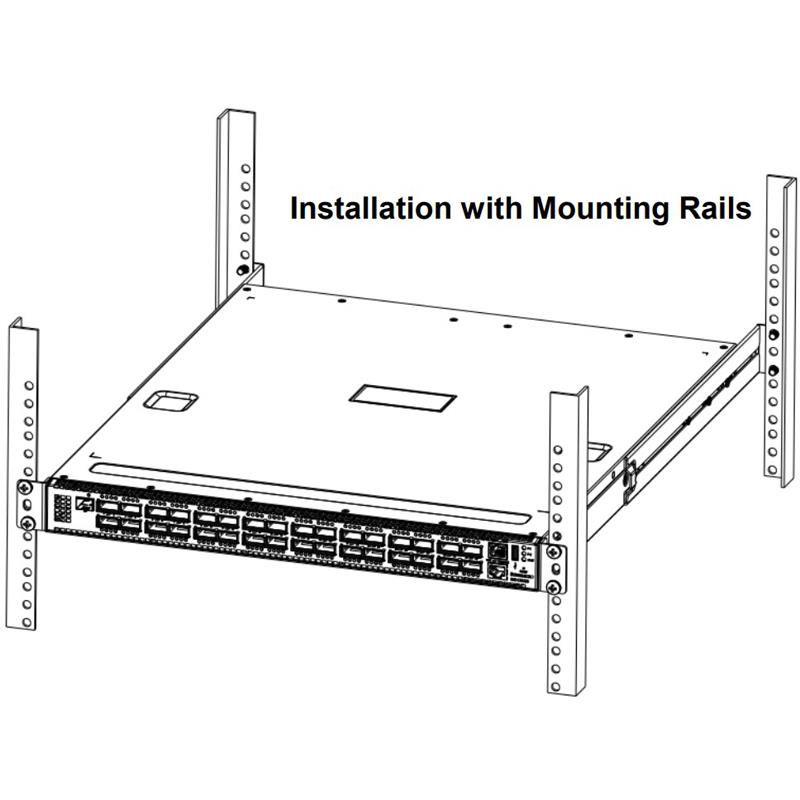

Mounting Kit	Mounting Rails (included)
Environmental
Operating Environment	Temperature: Operating 0°C to 40°C (32°F to 104°F)
	Humidity: Operating: 5% to 95% (non-condensing)

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com
