Dual 10GbE LAN ports via BCM57414
Front-loading nodes for easy access and servicing
Up to 64GB ECC VLP UDIMM DDR4-2666MHz in 2 DIMM slots
N+1 or N+N Redundant power supplies Titanium Level efficiency

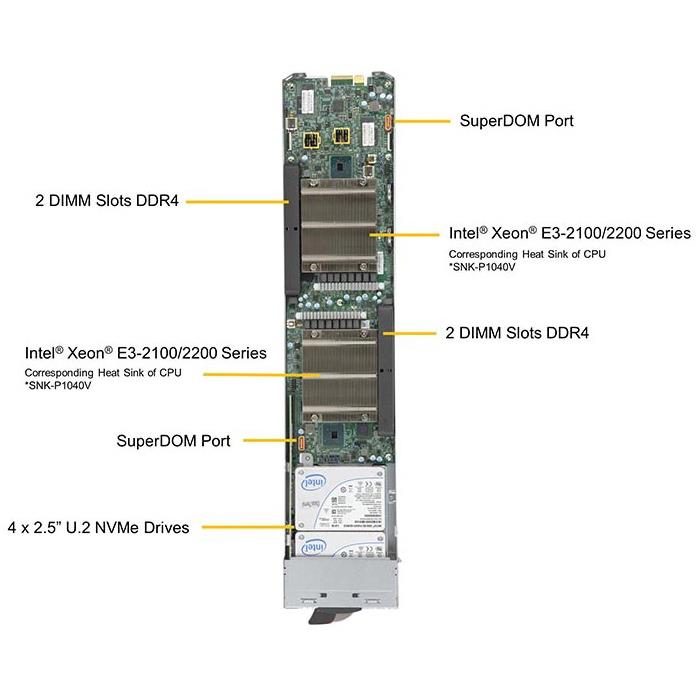

MicroBlade Sled Dual Intel Xeon Processor E-2100 / E-2200 Series up to 4x2.5 NVMe
This product is no longer available.
2x 2.5" U.2 NVMe (7mm) drives, 1x SATA DOM
Front-loading nodes for easy access and servicing
Up to 64GB ECC VLP UDIMM DDR4-2666MHz in 2 DIMM slots
N+1 or N+N Redundant power supplies Titanium Level efficiency
| Main Specifications | ||
| Device Type | MicroBlade Sled | |
| Dimensions (WxDxH) | Height 1.2" (30.48mm) x Width 4.94" (125.48mm) x Depth 23.2" (589.28mm) | |
| Weight | Gross Weight: 3.3 lbs (1.5 kg) | |
| Enclosure Color | Silver Grey | |
| Processor | ||
| Compatible Processors (per Node) | Support Intel Xeon processor E-2100 / E-2200 series, CPU TDP support up to 95W | |
| Compatible Socket (per Node) | Single Socket H4 (LGA 1151) supports | |
| Cache/Core (per Node) | Up to 8 cores | |
| System Memory | ||
| Memory Capacity (per Node) | 2 DDR4 DIMM sockets, Supports up to 64GB DDR4 ECC VLP UDIMM | |
| Memory Type (per Node) | 2666MHz ECC DDR4 UDIMM | |
| DIMM Sizes (per node) | 32GB | |
| Memory Voltage (per Node) | 1.2V | |
| Error Detection (per Node) | Corrects single-bit errors, Detects double-bit errors (using ECC memory) | |
| On-Board Devices | ||
| Chipset (per Node) | Intel C246 chipset | |
| Network Controllers (per Node) | Dual 10GbE LAN ports via BCM57414 | |
| IPMI (per Node) | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| Input / Output | ||
| Others (per Node) | 1 TPM Header | |
| DOM (per Node) | 1x SATA DOM | |
| System BIOS | ||
| BIOS Type | AMI 128Mb Flash EEPROM | |
| BIOS Features | Plug and Play (PnP), APM 1.2, SMBIOS 2.7.1 | |
| Front Panel | ||
| LEDs | Plug and Play (PnP), APM Power LED, Fault LED, Network Activity LED, UID / KVM LED.2, SMBIOS 2.7.1 | |
| Drive Bays | ||
| Internal Drive Bays (per Node) | 2x 2.5" U.2 NVMe (7mm) drives | |
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 38°C (50°F to 100.4°F) | ||
| Parts List - (Items Included) | ||
| Motherboard / MicroBlade Sled | 1x MBD-B2SC2-TF-P / 1x MCP-680-31405-0N | |
| Micro Blade Module Chassis | 1x MCP-620-31401-0N, 1x MCP-620-31402-0N, 1x MCP-620-31408-0N, 1x MCP-620-31405-0N | |
| Add-On Card | 1x AOM-BPNIO-MSN-P | |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
