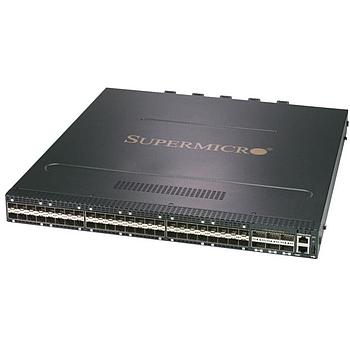

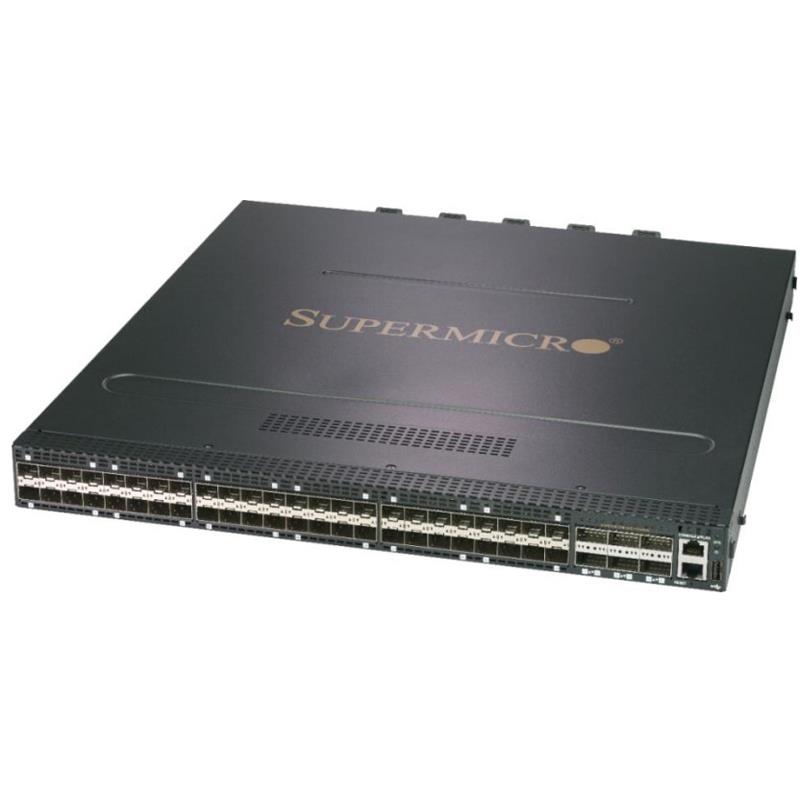

Supermicro SSE-X3548S Layer 2/3 Ethernet Switch Offer 48x 10-Gigabit ports, 6x 100-Gbps ports
Comes with preloaded Supermicro OS
Offer forty-eight 10-Gigabit Ethernet ports
Layer 2 & 3 10G - Regular Airflow (front to back)
Optimized for standalone or top-of-rack environments
Ethernet Switch (Standalone) Forty-eight 10-Gigabit Ethernet ports and Six ports running at 100 Gbps, Regular Airflow (front to back) RoHS
Ethernet Switch both offer forty-eight 10-Gigabit Ethernet ports allowing data center-friendly connectivity to 10GE routers, servers, backbones. They also offer six ports running at 100 Gbps for access to high-speed backbone networks or storage servers. The 1U form factor gives users the ability to optimize deployment in standalone or top-of-rack environments.
A comprehensive routing and protocol software suite ensure optimal performance in even the most demanding enterprise-class networking environments. These switches are ideal for organizations with growing and consolidated data centers.
Extra Specifications for Supermicro SSE-X3548S Layer 2/3 Ethernet Switch Offer 48x 10-Gigabit ports, 6x 100-Gbps ports
| Main Specifications | ||
| Device Type | Ethernet Switche | |
| Type | Regular Airflow (front to back) | |
| Form Factor | 1U form factor for flexible installation | |
| Dimensions (WxDxH) | 445 x 510 x 44 mm (17.52 x 20.1 x 1.73 inches) | |
| Weight | Net weight: 8.9 Kg (19.6 lb) with 2 PSUs | |
| Performance | ||
| Switching Capacity | 2.1 TB | |
| 1:1 Non-blocking connectivity | ||
| Networking | ||
| Layer 2 Features | 4K VLANS, Spanning Tree (802.1D), Rapid Spanning Tree (802.1w), Multiple Spanning Trees (802.1s), IEEE 802.lQ VLANs/ port-based VLANs, IEEE 802.3ad with LACP, IEEE 802.1AB Link Layer Discovery Protocol (LLDP) | |
| Advanced Layer 2 Features | Storm control, Flow control, Port mirroring, Uplink Failure Detection (UFD), MLAG | |
| System Management | Industry Standard CLI, Context Sensitive Help, Command Completion, SNMP v1/v2/v3, SSH, Syslog, DHCP (Client), Web-based management interface, NTP, RMON | |
| Multicast | ||
| Multicast | IGMP Snooping | |
| Expansion / Connectivity | ||
| Expansion / Connectivity | USB port | |
| 48x Ten-Gigabit Ethernet ports - SFP28 | ||
| 6x Hundred-Gigabit Ethernet ports - QSFP28 | ||
| RJ-45 (for console cable) | ||
| RJ-45 1G Ethernet Management Port | ||
| Power | ||
| Power Device | AC Input: 100-127/200-240 V, 50/60 Hz | |
| Redundant Hot-pluggable 500W Power Supplies | ||
| Power Consumption: 410 Watts | ||
| Software / System Requirements | ||
| OS Supported | The SSE-X3548 switch comes with preloaded Supermicro OS. No additional licensing is required. | |
| Environmental Parameters | ||
| Operating Temperature | Operating 0°C to 45°C (32°F to 113°F) | |
| Humidity Operating: 0% to 95% RH | ||
| Parts List - (Items Included) | ||
| Mounting Rails | Included | |
| Miscellaneous | ||
| Compliant Standards | RoHS | |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
