| Motherboard |
| Motherboard | Super X10DRFR-NT |
| Processor/Cache |
| CPU | Dual Socket R3 (LGA 2011) |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * |
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | † BIOS version 2.0 or above is required |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| System Memory |
| Memory Capacity | 16x 288-pin DDR4 DIMM slots |
| Up to 2TB † ECC 3DS LRDIMM, 1TB ECC RDIMM |
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices |
| Chipset | Intel® C612 chipset |
| SAS | SAS 3.0 (12Gbps) via Broadcom 3108 |
| HW RAID 0, 1, 5, 6, 10, 50, 60 |
| SATA | SATA 3.0 (6Gbps) w/ RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Intel® X540 Dual Port 10GBase-T |
| Graphics | ASPEED AST2400 BMC |
| Input / Output (per node) |
| SAS | 8 SAS3 (12Gbps) ports |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2 RJ45 10GBase-T LAN ports |
| USB | 2 USB 3.0 ports |
| VGA | 1 VGA port |
| Management |
| Software | Watch Dog |
| NMI |
| SuperDoctor® 5 |
| IPMI 2.0 |
| SUM and SSM |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI / APM Power Management |
| Chassis |
| Form Factor | 4U Rackmount |
| Model | CSE-F424AS-R1K28BP |
| Dimensions and Weight |
| Width | 17.63" (448mm) |
| Height | 6.96" (177mm) |
| Depth | 29" (737mm) |
| Package | 28.3" (W) x 15.0" (H) x 42.4" (D) |
| Weight | Net Weight: 105 lbs (47.63 kg) |
| Gross Weight: 150 lbs (68.04 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| UID button |
| LEDs | Hard drive activity LED |
| 2 Network activity LEDs |
| Power status LED |
| Information LED (UID, Fan failure, Overheat) |
| Expansion Slots (per node) |
| PCI-Express | MicroLP Adapter Matrix (Networking options) |
| 1 PCI-E 3.0 x16 (LP) + 1 Micro LP |
| Drive Bays (per node) |
| Hot-swap | (6+2) 3.5" Hot-swap SAS3 HDD trays |
| 8 SAS3 or 6x SAS3 + 2 NVMe (optional) Note: NVMe support requires 2 CPUs installed |
| Backplane |
| Backplane | 1 SAS/SATA backplane 1 SAS/SATA/NVMe hybrid (2 slots) |
| System Cooling (per node) |
| Fans | 2x 8cm 11k RPM middle fans |
| Power Supply |
| Power Supply | 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2 |
| AC Input | 1000W Output @ 100-140V, 8-12A, 50-60Hz |
| 1280W Output @ 180-240V, 6-8A, 50-60Hz |
| DC Output | 1000W: +12V/83A; +5Vsb/4A |
| 1280W: +12V/106.7A, +5Vsb/4A |
| Certification | Platinum Certified |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| PCI 2.2 |
| SMBIOS 2.3 |
| ACPI 1.0 / 2.0 |
| UEFI |
| APM 1.2 |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

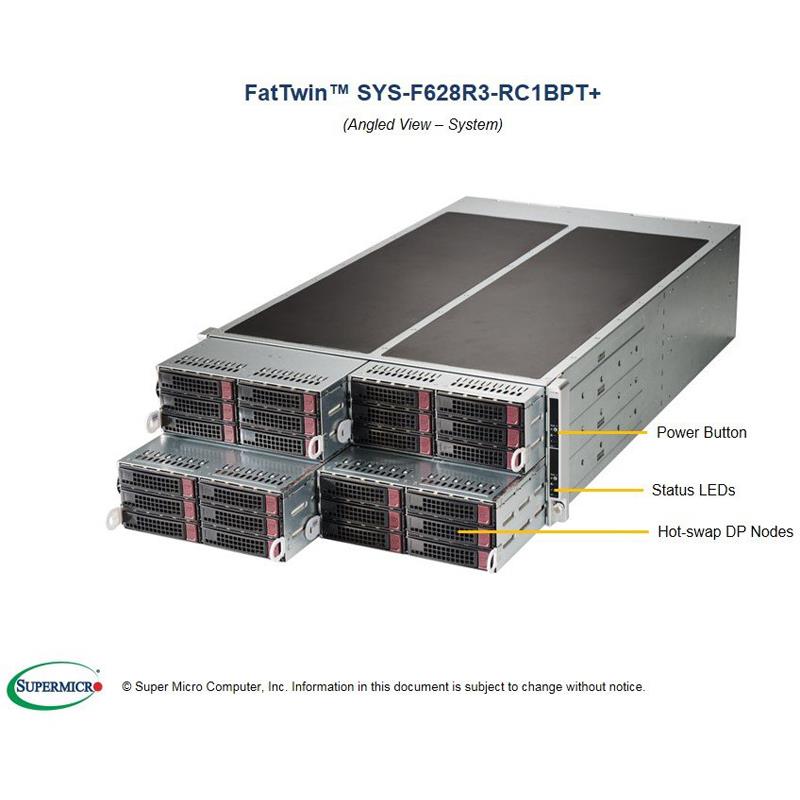

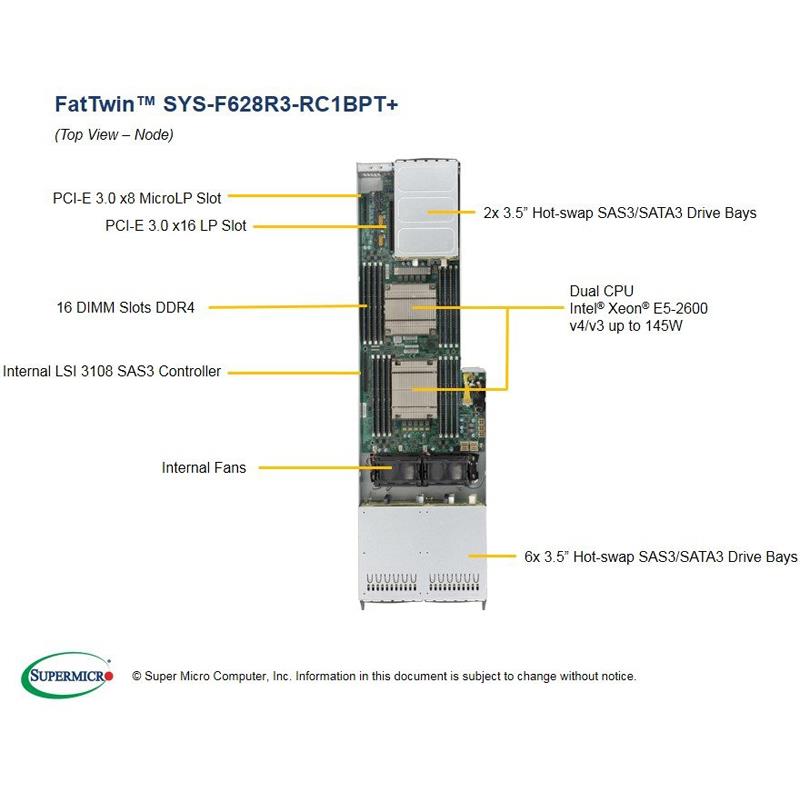

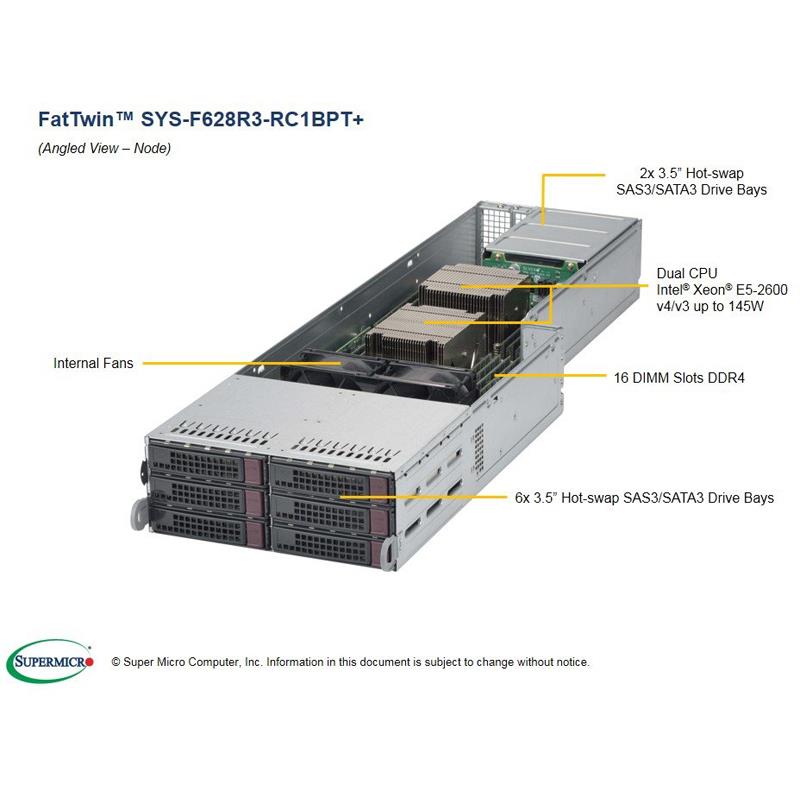

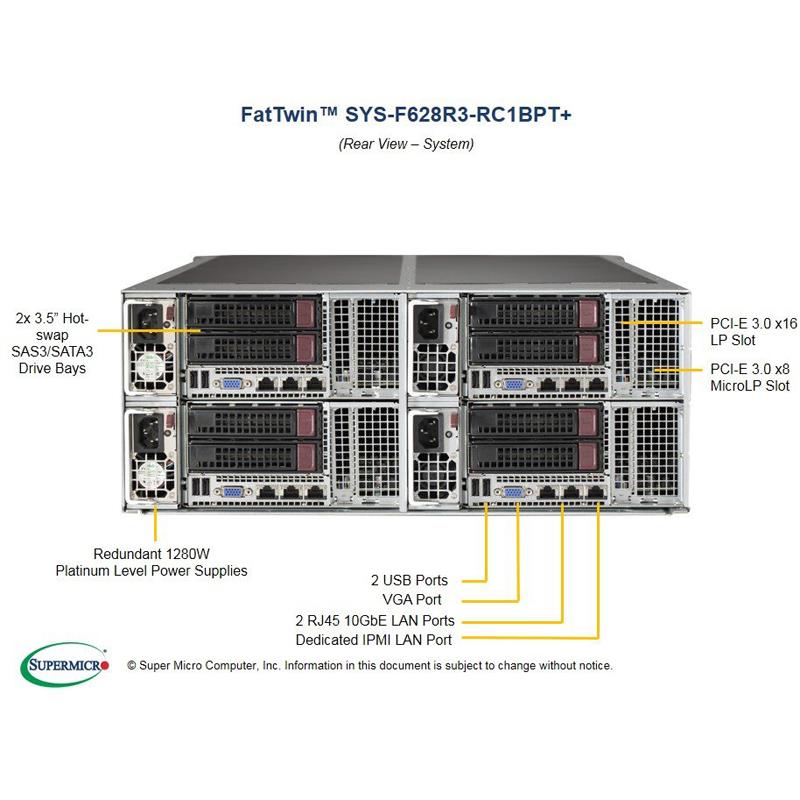

| Product SKUs | SuperServer F628R3-RC1BPT+ (Black) |
