Supermicro AOC-MCX512F-ACAT Ethernet Adapter Card Standard Low-profile Dual SFP28 Connector 25GbE Data Rate
Up to 25Gb/s connectivity per port
Enhanced vSwitch/vRouter offloads
Industry-leading throughput, low latency
Web 2.0, Cloud, Storage, and Telco platforms

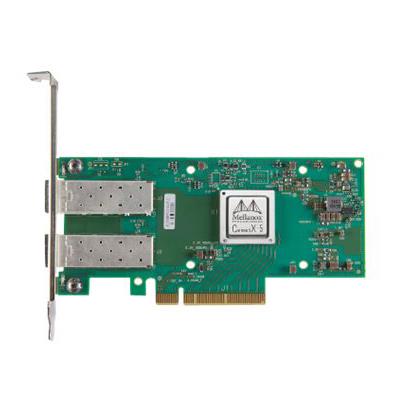

25Gbe Ethernet Adapter Card, Based on Mellanox ConnectX-5 Controller, Provides Dual-port SFP28 (Copper And Optical), PCIe Gen3 x16 Host Interface, Data Transmission Rate: 25Gbe, Bracket Included, RoHS Compliant (AOC-MCX512F-ACAT)
Intelligent RDMA-enabled, dual-port network adapter with advanced application offload capabilities for Web 2.0, Cloud, Storage, and Telco platforms.
Features
Tag matching and rendezvous offloads
Adaptive routing on reliable transport
Burst buffer offloads for background checkpointing
NVMe over Fabric offloads
Backend switch elimination by host chaining
Embedded PCIe switch
Enhanced vSwitch/vRouter offloads
Flexible pipeline
RoCE for overlay networks
PCIe Gen 4.0 support
RoHS compliant
ODCC compatible
Various form factors available
Benefits
Up to 25Gb/s connectivity per port
Industry-leading throughput, low latency, low CPU utilization and high message rate
Innovative rack design for storage and Machine Learning based on Host Chaining technology
Smart interconnect for x86, Power, Arm, and GPU-based compute & storage platforms
Advanced storage capabilities including NVMe over Fabric offloads
Intelligent network adapter supporting flexible pipeline programmability
Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV)
Enabler for efficient service chaining capabilities
Efficient I/O consolidation, lowering data center costs and complexity
Extra Specifications for Supermicro AOC-MCX512F-ACAT Ethernet Adapter Card Standard Low-profile Dual SFP28 Connector 25GbE Data Rate
| Main Specifications | ||
| Device Type | Network adapter - 2 ports | |
| Form Factor | Plug-in card - low profile | |
| Interface (Bus) Type | PCI Express 3.0 x16 | |
| PCI Specification Revision | PCIe 3.0 | |
| Dimensions (WxDxH) | 5.6 in x 2.7 in | |
| Networking | ||
| Port Type | 25 Gigabit SFP28 x 2 | |
| Connectivity Technology | Wired | |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet | |
| Data Transfer Rate | 25Gbps | |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI | |
| Expansion / Connectivity | ||
| Interfaces & Connections | 2 x 25Gb Ethernet - SFP28 | |
| Miscellaneous | ||
| Features | Auto-negotiation, VLAN support, Quality of Service (QoS), Jumbo Frames support, RDMA support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), On demand paging (ODP) | |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by | |
| Bracket Included | Yes | |
| Environmental Compliance | RoHS Compliant | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Mellanox |
| Type of Support: | FULL |
| Phone No.: | 408-916-0055 |
| URL: | Click here for Manufacturer Website |
