Supermicro SYS-5039MS-H12TRF MicroCloud Barebone Single CPU, 12-Node
• Cloud Computing
• Web Cache
• Web Hosting, VM
• Social Networking
• Corporate-WINS, DNS, Print, Login

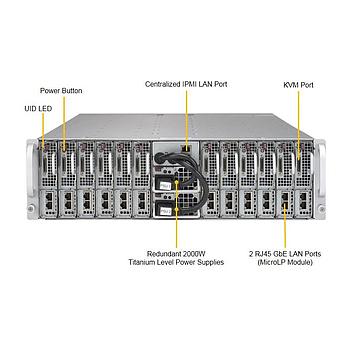

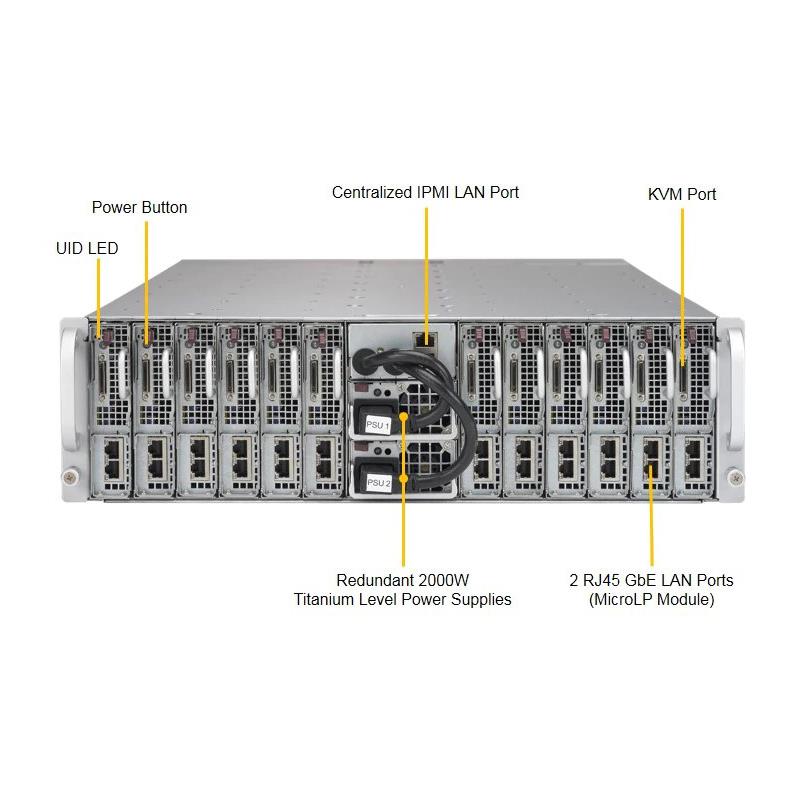

Barebone 3U MicroCloud with 12x Modular UP Nodes - Per Node : Single Socket H4 (LGA-1151) for Intel Xeon E3-1200 v5 family, Up to 64GB DDR4 ECC UDIMM up to 2133MHz (4 DIMM sockets ) - On-Board (per node) : SATA3 (6Gbps) via C236 controller, IPMI 2.0, Micro-LP NIC 2x i350 Gigabit LAN, VGA - Includes (per node) : 2x 3.5in / 2.5in SATA3 HDDs (up to 24x 3.5in/ 2.5in drives total) OR 2x 2.5in NVMe + 2x 2.5in SATA3 drives (up to 48x 2.5in drives total), 1x Heatsink, 3x ADD-On Modules - Included in system : 2000W Redundant Titanium Level Power Supply, X11SSE-F Motherboard, CSE-939HS-R2K04B 3U Chassis - (Black)
1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
2. 2x 3.5" SATA3 or 4x 2.5" SATA3 or 2x 2.5" NVMe + 2x 2.5" SATA3 or 2x 2.5" NVMe + 1x 3.5" SATA3
3. Up to 64GB DDR4 VLP ECC UDIMM 2400MHz support in 4 slots
4. 2 GbE LAN ports via Intel i350
5. 1 Centralized IPMI managemet port
6. 2 USB 2.0, 1 VGA, 1 COM port, (with KVM dongle)
7. 1 USB 3.0 (Type A), 1 SATA DOM
8. 4 heavy duty 9cm hot-swap fans with optimal cooling zone (per system)
9. 2000W Redundant power supplies Titanium Level Certified (per system)
Extra Specifications for Supermicro SYS-5039MS-H12TRF MicroCloud Barebone Single CPU, 12-Node
| Processor/Cache | ||
| CPU | Single Socket H4 (LGA 1151) supports: | |
| CPU TDP up to 80W | ||
| Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors | ||
| Note | BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors | |
| System Memory (per node) | ||
| Memory Capacity | 4x 288-pin DDR4 DIMM slots | |
| Supports up to 64 GB DDR4 VLP ECC Un-Buffered memory (UDIMM) | ||
| Memory Type | 2400MHz/2133MHz ECC DDR4 (VLP) SDRAM 72-bit, 288-pin gold-plated UDIMMs | |
| DIMM Sizes | 16GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices (per node) | ||
| Chipset | Intel® C236 chipset | |
| SATA | SATA3 (6Gbps) via C236 controller | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM over LAN support | ||
| ASPEED AST2400 BMC | ||
| Headers | 1 Type A USB 3.0 | |
| Graphics | ASPEED AST2400 Graphics (BMC with Graphic controller) | |
| Network Devices (per node) | ||
| Micro-LP NIC | Intel® i350 GbE controller | |
| Dual RJ-45 connectors | ||
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Intel® I/O Acceleration Technology (I/O AT) | ||
| MicroLP Adapter Matrix (Networking options) | ||
| Input / Output (per node) | ||
| SATA | 2 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| DOM | SATA DOM (Disk on Module) power connector support | |
| KVM | 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle) | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| DMI 2.3 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| Front Window (each node) | ||
| Switch | Power / UID | |
| Chassis | ||
| Form Factor | 3U | |
| Model | CSE-939HS-R2K04B | |
| Dimensions and Weight | ||
| Height | 5.21" (132.5 mm) | |
| Width | 17.5" (444.5 mm) | |
| Depth | 29.5" (749.3 mm) | |
| Package | 16.1" (H) x 28.35" (W) x 42.36" (D) | |
| Weight | Net Weight: 95lbs (43.09kg) | |
| Net Weight w/ 2.5" HDDs: 115lbs (52.16kg) | ||
| Net Weight w/ 3.5" HDDs: 132lbs (59.87kg) | ||
| Gross Weight: 125lbs (56.70kg) | ||
| Color | Black | |
| Drive Bays (per node) | ||
| Internal | 2x 3.5" SATA3 OR 4x 2.5" SATA3 HDDs OR 2x 2.5" NVMe + 1x 3.5" SATA3 OR 2x 2.5" NVMe + 2x 2.5" SATA3; up to 48x 2.5" drives total | |
| Enterprise SATA HDD only recommended | ||
| System Cooling | ||
| Fans | 4 Heavy duty 9cm fans with optimal cooling zone | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 2000W Titanium Redundant Power Supplies with PMBus and Reverse Airflow | |
| Total Output Power | 1000W: 100 – 127Vac | |
| 1800W: 200 – 220Vac | ||
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 2000W: 200 – 240Vac (UL/CUL only) | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 1000W: 100-127 Vac / 12.5-9.5 A / 50-60 Hz | |
| 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz | ||
| 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only) | ||
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) | |
| Max: 150A / Min: 0A (200Vac-220Vac) | ||
| Max: 165A / Min: 0A (220Vac-230Vac) | ||
| Max: 166.7A / Min: 0A (230Vac-240Vac) | ||
| Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level [ Test Report ] | |
| [ Test Report ] | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. | |
| 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V | ||
| FAN | Cooling zone | |
| Temperature | Monitoring for CPU and chassis environment | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-5039MS-H12TRF (Black) | |
| Motherboard | ||
| Motherboard | Super X11SSE-F | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Network Card(s) | AOM-CTG-i2SM-12AOM-C25G-m1SMAOM-C25G-i2SM-12AOM-CTGS-i2TMAOM-CTG-i1SMAOM-CIBF-m1M | ---- | MicroLP 2x 10GbE SFP+, PCI-E 3.0 x8, Intel 82599ESMicroLP, 1x 25GbE SFP28, PCI-E 3.0 x8, Mellanox®MicroLP module 2-Port 25G SFP28, Intel E810-XXVAM2, for MicroCloud 12nodeMicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN, ver 1.21 onlyMicroLP, 1 x 40GbE QSFP, PCI-E 3.0 x8, Mellanox® ConnectX-3 FDR controller | |||
| TPM security module(optional, not included) | AOM-TPM-9665H-CAOM-TPM-9665HAOM-TPM-9655H-CAOM-TPM-9655H | -- | Horizontal TPM 2.0 module with Infineon 9665 and TXT Ready | |||
| TPM security module(optional, not included) | - | 0 | Horizontal TPM 2.0 module with Infineon 9665 | |||
| TPM security module(optional, not included) | - | 0 | Horizontal TPM 1.2 module with Infineon 9655 and TXT Ready | |||
| TPM security module(optional, not included) | - | 0 | Horizontal TPM 1.2 module with Infineon 9655 | |||
| Add-on Card / Module | AOM-BPN-MC12S4-P | $ 254.50 | 12 | 4x NVMe U.2 connectors BPN for MicroCloud 12 node system,HF,RoHS | ||
| Bracket | MCP-240-93912-0NMCP-290-93903-0N-PACK | 121 | Bracket for 4NVMe MB tray with NVMe standoffSC939HN bracket with FAN | |||
| SATA DOM | MEM-IDSAHM3A-016GMEM-IDSAHM3A-032GMEM-IDSAHM3A-064GMEM-IDSAHM3A-128G | ---- | SATA3 DOM SH 3ME 16GB MLC 1ch HorizontalSATA3 ServerDOM MH 3ME 32GB MLC w/ Pin8 VCC HorizontalSATA3 ServerDOM MH 3ME 64GB MLC w/ Pin8 VCC HorizontalSATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
