| Product SKUs |

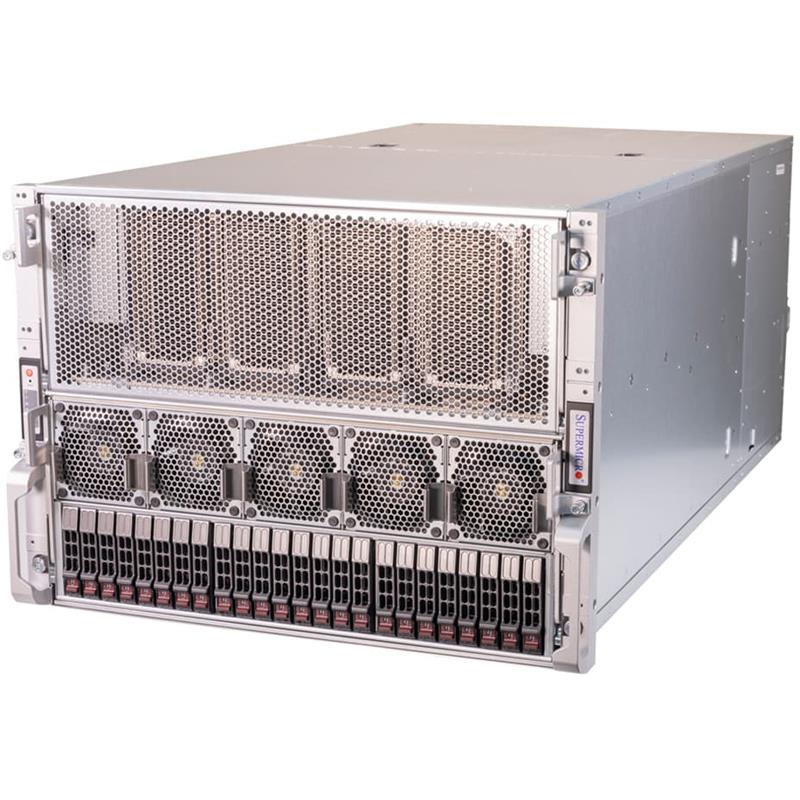

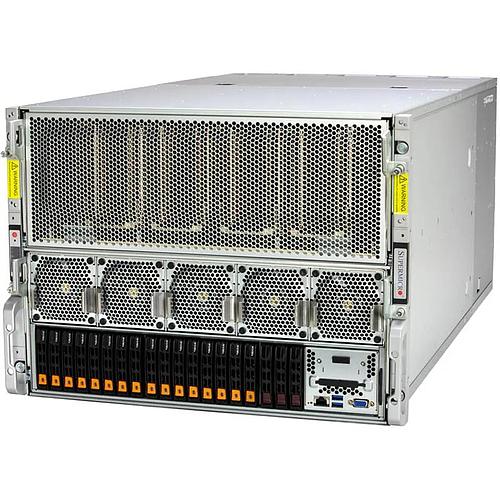

| Product SKUs | SYS-821GE-TNHR |
| Motherboard |
| Motherboard | Super X13DEG-OAD |
| Processor |
| CPU | Dual Socket E (LGA-4677) |
| 4th Gen Intel® Xeon® Scalable processors |
| Note | Supports up to 350W TDP CPUs (Liquid Cooled) |
| Supports up to 350W TDP CPUs (Air Cooled) |
| GPU |
| Supported GPU | HGX H100 8-GPU SXM5 Multi-GPU Board |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ |
| System Memory |
| Memory | Memory Capacity: 32 DIMM slots |
| Up to 8TB: 32x 256 GB DRAM |
| Memory Type: 4800MHz ECC DDR5 DRAM |
| Memory Voltage | 1.1 V |
| Error Detection | ECC |
| On-Board Devices |
| Chipset | Intel® C741 |
| Network Connectivity | 2x 25GbE SFP28 with Broadcom® BCM57414 (optional) |
| 2x 10GbE BaseT with Intel® X550-AT2 (optional) |
| 2x 10GbE BaseT with Intel® X710-AT2 (optional) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| OOB Management Package (SFT-OOB-LIC ) |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 8+4 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 8U Rackmount |
| Model | CSE-GP801TS |
| Dimensions and Weight |
| Height | 14" (355.6mm) |
| Width | 17.2" (437mm) |
| Depth | 33.2" (843.28mm) |
| Package | 29.5" (H) x 27.5" (W) x 51.2" (D) |
| Weight | Net Weight: 166 lbs (75.3 kg) |
| Gross Weight: 225 lbs (102.1 kg) |
| Available Color | Black Front & Silver Body |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Network activity LEDs |
| Hard drive activity LED |
| Power status LED |
| System Overheat & Power Fail LED |
| Expansion Slots |
| PCI-Express (PCIe) | 8 PCIe 5.0 x16 LP slot(s) |
| 2 PCIe 5.0 x16 FHFL slot(s) |
| Drive Bays / Storage |
| Hot-swap | 20x 2.5" hot-swap NVMe/SATA drive bays (8x 2.5" NVMe dedicated) |
| M.2 | 2 M.2 NVMe |
| System Cooling |
| Fans | 10 heavy duty fans with optimal fan speed control |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply |
| AC Input | 3000W: |
| DC Output | 3000W |
| Output Type | Backplanes (connector) |
| Certification | Titanium Level |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
