| Main Specifications |
| Device Type | Core Board |
| Dimensions (WxDxH) | 12" x 9.6", (30.5cm x 24.4cm) |
| Form Factor | ATX |
| Processor |
| Cache | Up to 22 Cores / Up to 55MB Cache |
| Compatible Processors | Intel Xeon processor E5-2600 v4/v3, E5-1600 v4/v3 family or Intel Core i7 series (up to 160W TDP **) |
| Processor Sockets | Single Socket R3 (LGA 2011) |
| System Memory |
| DIMM Sizes | 8GB, 4GB, 2GB, 1GB |
| Memory Capacity | 8x 288-pin DDR4 DIMM slots |
| Supports up to 128GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 8 DIMM slots |
| Cache Memory |
| Memory Type | Frequency up to 3300MHz(OC) non-ECC DDR4 SDRAM 72-bit, 284-pin (UDIMM) gold-plated DIMMs |
| Support overclocking up to 3300MHz* |
| Memory |
| Supply Voltage | 1.2V |
| Input / Output |
| Audio | 7.1 HD Jacks |
| RealTek ALC1150 High Definition Audio |
| SATA | 10x SATA3 (6Gbps) ports |
| SATA3 (6Gbps) via Intel X99 controller |
| 10x SATA3 ports: 6x iSATA (RAID 0, 1, 5, 10) and 4x sSATA |
| VGA | ASPEED AST2400 BMC (for IPMI only) |
| 1x VGA (Aspeed AST 2400 BMC for IPMI) |
| Keyboard / Mouse | 1x PS/2 Keyboard/Mouse port |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports |
| Shared with IPMI |
| Serial Port / Headers | 1x header |
| On-Board Devices |
| Chipset | Intel X99 chipset |
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Intel i210-AT Dual Port Gigabit Ethernet |
| Share with IPMI |
| TPM | 1x TPM Header |
| USB | 4 of 8 USB 3.0 ports upgradable to 4x USB 3.1 (10Gbps) (2 rear + 2 via header) (This upgrade is BOM option for OEM only) |
| 8x USB 3.0 ports (6 rear + 2 via header) |
| Chassis Optimized for |
| Important Chassis Notes | To support motherboards based on Intel Xeon processor 5500/3500 series, Revision K or later chassis is recommended for most models. |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 4x PCI-E 3.0 x16 slots (run at 16/16/NA/8 or 16/8/8/8) |
| 2x PCI-E 2.0 x1 (in x4) slots |
| System BIOS |
| BIOS Features | Plug and Play (PnP), APM 1.2, DMI 2.3, PCI 2.3, ACPI 1.0 / 2.0 / 3.0 / 4.0, USB Keyboard support, Hardware BIOS Virus protection, SMBIOS 2.7.1, UEFI 2.3.1, RTC (Real Time Clock) Wakeup |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Management |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Keyboard Wakeup from Soft-Off |
| CPU Fan auto-off in sleep mode |
| Software | IPMI 2.0, SuperDoctor III, Watch Dog, Due to Intel Client ME limitation, this Board supports all SUM features well but "OOB Biosupdate" |
| PC Health Monitoring |
| Voltage | +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT |
| FAN | Status monitor for speed control |
| Status monitor for on/off control |
| Low noise fan speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Total of 5 fan headers supporting up to 5 fans |
| 5 fans with tachometer status monitoring |
| LED | CPU / System Overheat LED, Suspend static indicator LED |
| Other Features | Chassis intrusion detection, Chassis intrusion header, RoHS |
| Parts List |

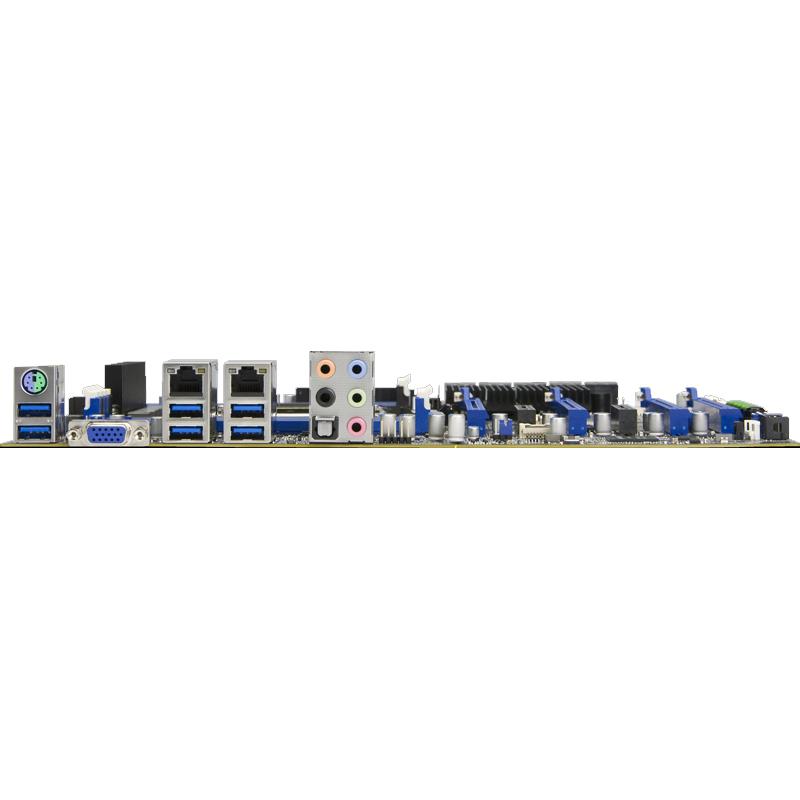

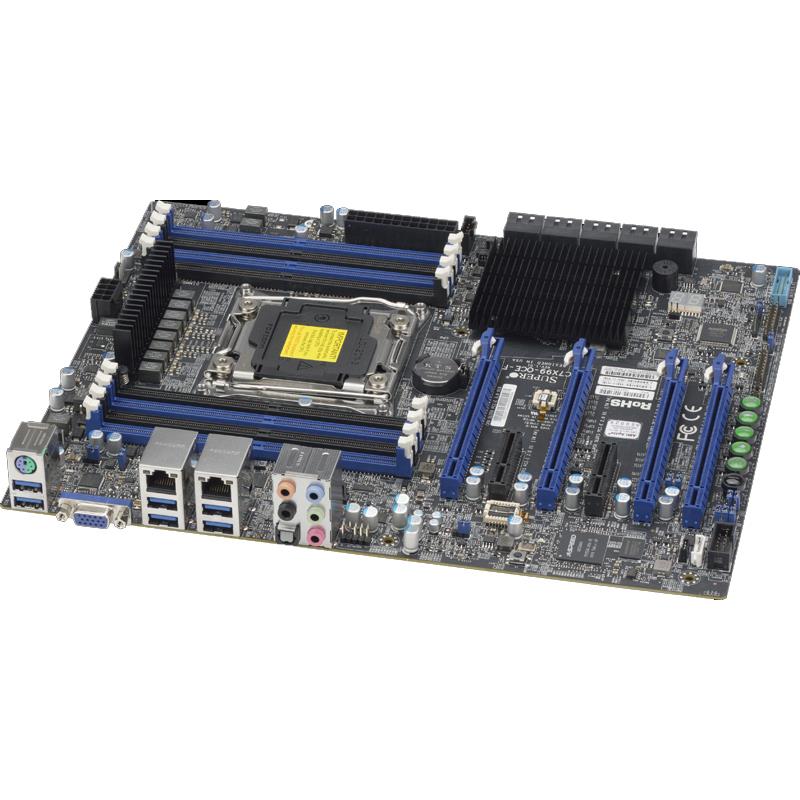

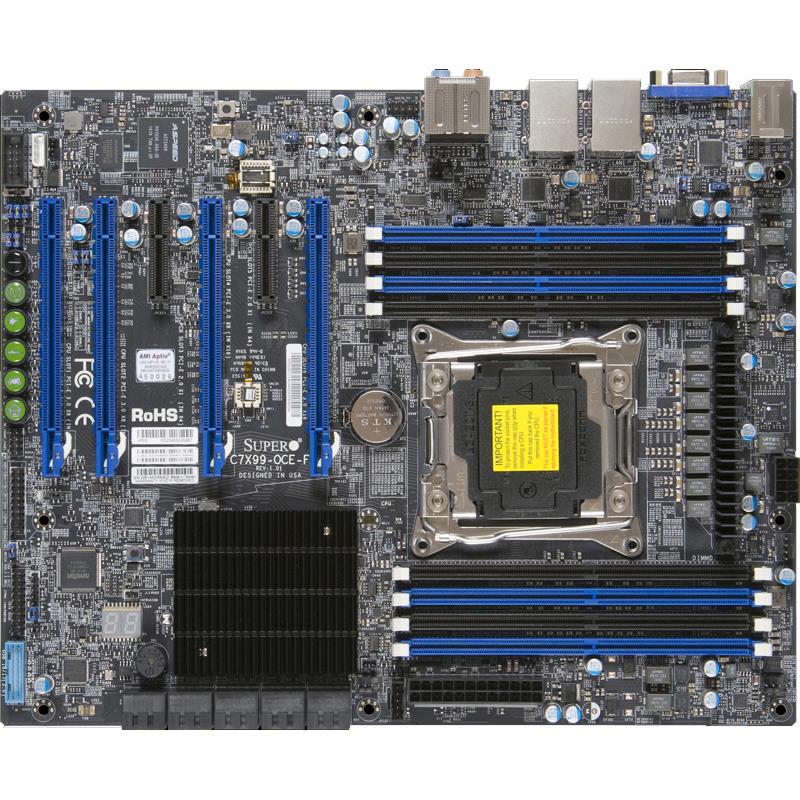

| Motherboard | 1x MBD-C7X99-OCE-F |
| Environmental Parameters |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| I2C Temperature Sensing Logic |
| PECI |
| Thermal Monitor 2 (TM2) support |
