| Motherboard |

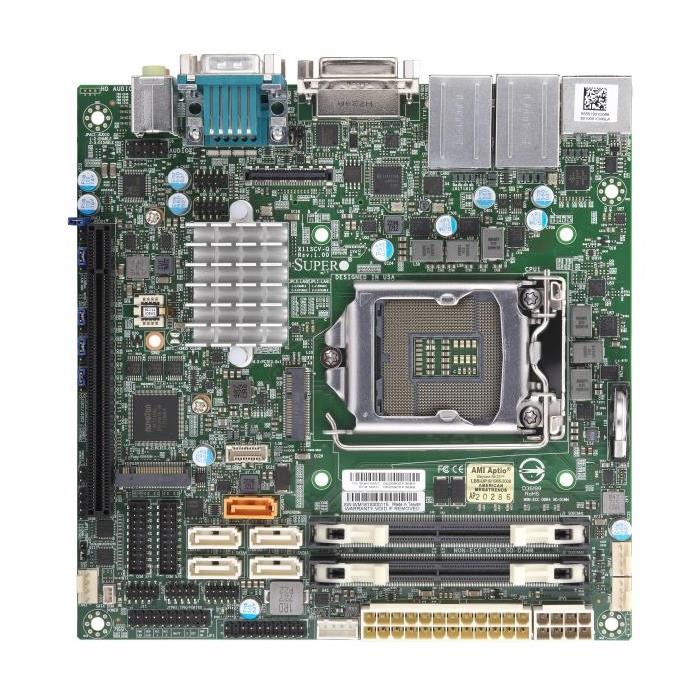

| Motherboard | Super X11SCV-Q |
| Processor/Cache |
| CPU | Single Socket H4 (LGA 1151) supports: |
| CPU TDP support Up to 65W TDP |
| 8th/9th Gen Intel® Core™ i7/i5/i3 / Pentium® / Celeron® processor |
| System Memory |
| Memory Capacity | 2 DIMM slots |
| Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz |
| Memory Type | DDR4-2666MHz Unbuffered non-ECC SO-DIMM |
| DIMM Sizes | 16GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® Q370 |
| SATA | Q370 controller for 5 SATA3 ports; RAID 0, 1 |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT |
| Single LAN with Intel® PHY I219LM LAN controller |
| Audio | ALC 888S HD Audio |
| Graphics | 3 Independent Displays |

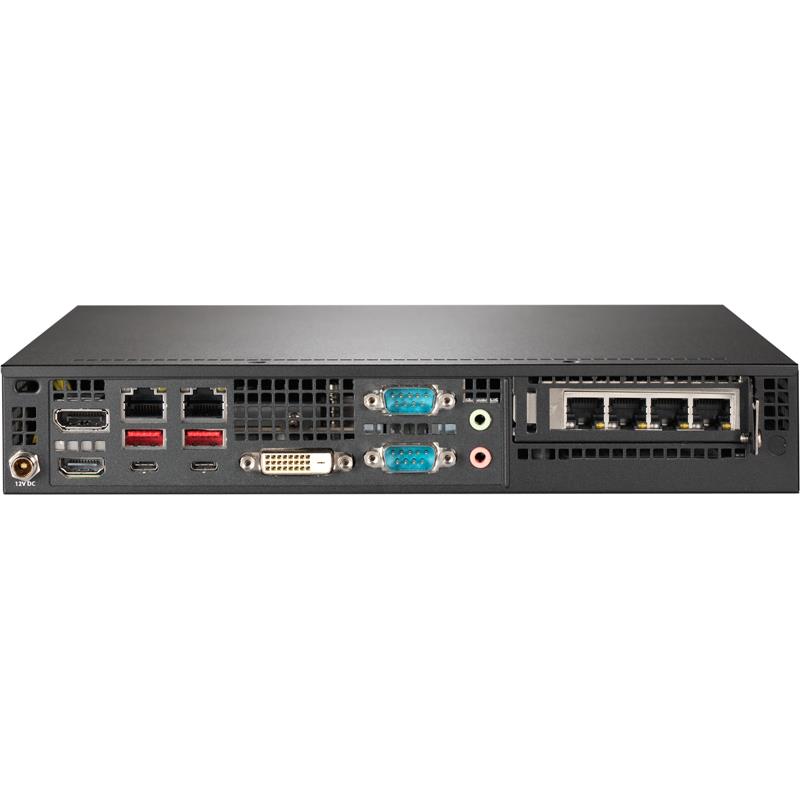

| Input / Output |
| SATA | 5 SATA3 (6Gbps) ports via PCH |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 4 USB 3.1 (2 type A and 2 type C in rear) |
| Display | 1 DP (Display Port) |
| 1 DVI - D port |
| 1 HDMI port |
| 1 eDP (Embedded Display Port) |
| 3 Independent Displays |
| Audio | HD Audio (Mic In / Line Out) |
| TPM | 1 TPM Header & Chip |
| Chassis |
| Form Factor | Compact |
| Model | CSE-E300 |
| Dimensions |
| Width | 10.43" (264.8mm) / 15" (381mm) - pkg. |
| Height | 1.7" (43mm) / 10.87" (276mm) - pkg. |
| Depth | 8.9" (226mm) / 5.59" (142mm) - pkg. |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) |
| Net Weight: 3.45 lbs (1.56 kg) |
| Available Colors | Black |

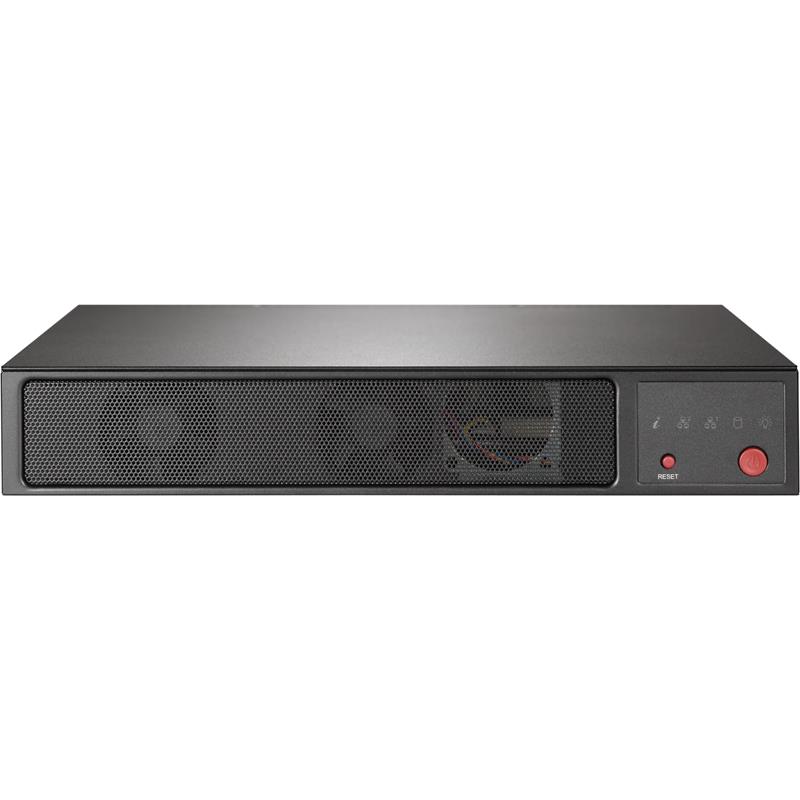

| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED (Hard drive activity LED) |
| Expansion Slots |
| PCI-E | 1 PCI-E 3.0 x16 |
| M.2 | M.2 M key: PCI-E 3.0 x4, NVMe support 2242/2280 length |
| M.2 E Key: PCI-E 3.0 x1, support 2230 length |
| Drive Bays |
| Internal | 2 Fixed 2.5" drive bays - one with bracket, one on base mount (1 fixed 2.5" drive bay when AOC area is occupied) |
| System Cooling |
| Fans | 2x 4cm high performance PWM fan |
| Power Supply |
| Power Supply | 150W DC Power Adapter |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | ACPI 6.0 |
| Management |
| Software | Watch Dog |
| NMI |
| AMT |
| vPro |
| Power Configurations | +12V DC Power Input |
| ATX Power connector |
| Fan | Fans with tachometer status monitoring |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Product SKUs |
| Product SKUs | SuperServer E300-9C (Black) |
