Supermicro SYS-5039MC-H12TRF MicroCloud Barebone Single CPU, 12-Node
• Cloud Computing
• Web Cache
• Web Hosting, VM
• Social Networking
• Corporate-WINS, DNS, Print, Login
Barebone 3U MicroCloud with 12x Modular UP Nodes - Per Node : Single Socket H4 (LGA-1151) for Intel Xeon E3-1200 v5 family, Up to 128GB DDR4 ECC UDIMM up to 2666MHz (4 DIMM sockets ) - On-Board (per node) : SATA3 (6Gbps) via C246 controller, IPMI 2.0, Micro-LP NIC 2x i350 Gigabit LAN, VGA - Includes (per node) : 2x 3.5in or 4x 2.5in SATA3 HDDs or 2x 2.5in NVMe + 2x 2.5in SATA3 drives, 1x Heatsink, 3x ADD-On Modules - Included in system : 2000W Redundant Titanium Level Power Supply, X11SCE-F Motherboard, CSE-939HC-R2K04BP 3U Chassis - (Black)
1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100/E-2200, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
2. Intel® C246 chipset
3. Up to 128GB unbuffered VLP ECC, up to DDR4-2666MHz; 4 DIMM slots
4. 1 Micro-LP slot (MicroLP upgradable)
5. 2x 3.5" SATA3 drives or 4x 2.5" SATA3 drives or 2x 2.5" NVMe + 2x 2.5" SATA3 drives or 2x 2.5" NVMe + 1x 3.5" SATA3 drive
6. M.2 Interface: 1 PCI-E 3.0 x4 and SATA M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
7. 2 GbE LAN ports via Intel i350
8. Aspeed AST2500 graphics
9. 4x 9cm Heavy duty fans with optimal cooling zone (per system)
10. 2000W Redundant power supplies Titanium Level Certified (per system)
Extra Specifications for Supermicro SYS-5039MC-H12TRF MicroCloud Barebone Single CPU, 12-Node
| Processor (per Node) | ||
| CPU | Single Socket H4 (LGA 1151), CPU TDP support up to 95W | |
| Support Intel® Xeon® processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors | ||
| Cores | 8 cores max. | |
| Note | BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series | |
| System Memory (per Node) | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 128GB Unbuffered ECC | ||
| Up to DDR4-2666MHz | ||
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| On-Board Devices (per node) | ||
| Chipset | Intel® C246 chipset | |
| SATA | SATA3 (6Gbps) via Intel® C246 controller; RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM over LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | Dual LAN with Intel® i350 | |
| Graphics | Aspeed AST2500 graphics | |
| Input / Output (per node) | ||
| SATA | 2 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| System BIOS | ||
| BIOS Type | UEFI 128Mb | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| RTC (Real Time Clock) Wakeup | ||
| Hardware BIOS Virus protection | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| Front Window (each node) | ||

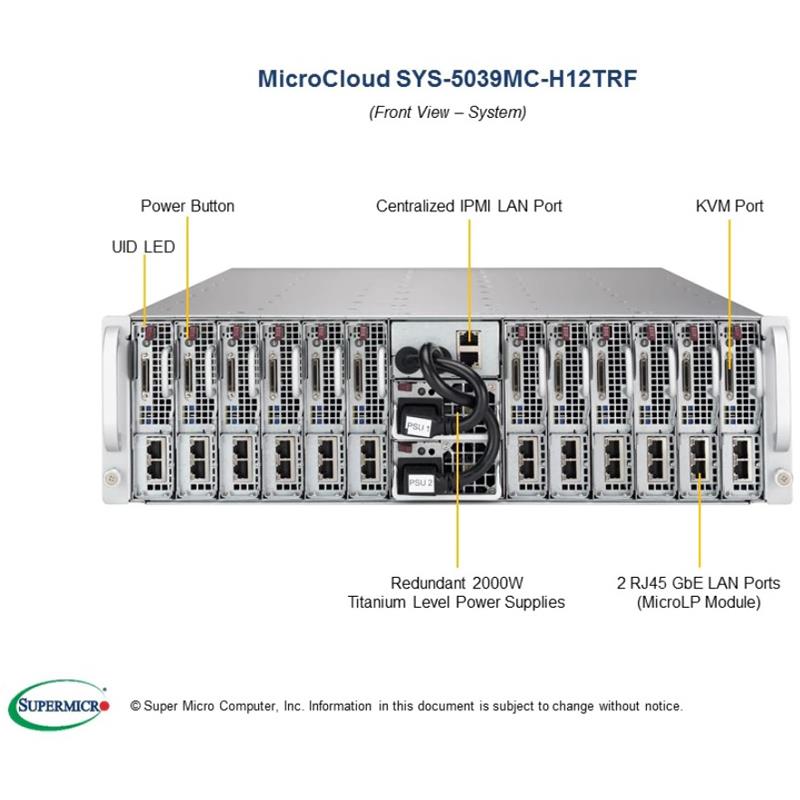

| Switch | Power / UID | |
| Chassis | ||
| Form Factor | 3U | |
| Model | CSE-939HN-R2K04BP | |
| Dimensions and Weight | ||
| Height | 5.21" (132.5 mm) | |
| Width | 17.5" (444.5 mm) | |
| Depth | 29.5" (749.3 mm) | |
| Package | 16.1" (H) x 28.35" (W) x 42.36" (D) | |
| Weight | Gross Weight: 125lbs (56.70kg) | |
| Net Weight: 132lbs (59.87kg) | ||
| Color | Black | |
| Expansion Slots (per Node) | ||
| Micro-LP | 1 Micro-LP slot (MicroLP upgradable) | |
| M.2 | M.2 Interface: 1 PCI-E 3.0 x4 and SATA | |
| M.2 Form Factor: 2280, 22110 | ||
| M.2 Key: M-Key | ||
| Drive Bays (per node) | ||
| Internal | 2x 3.5" SATA3 drives or 4x 2.5" SATA3 drives or 2x 2.5" NVMe + 2x 2.5" SATA3 drives or 2x 2.5" NVMe + 1x 3.5" SATA3 drive | |
| System Cooling | ||
| Fans | 4x 9cm Heavy duty fans with optimal cooling zone | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 2000W Titanium Redundant Power Supplies with PMBus and Reverse Airflow | |
| Total Output Power | 1000W: 100 – 127Vac | |
| 1800W: 200 – 220Vac | ||
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 2000W: 200 – 240Vac (UL/CUL only) | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 1000W: 100-127 Vac / 12.5-9.5 A / 50-60 Hz | |
| 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz | ||
| 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only) | ||
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) | |
| Max: 150A / Min: 0A (200Vac-220Vac) | ||
| Max: 165A / Min: 0A (220Vac-230Vac) | ||
| Max: 166.7A / Min: 0A (230Vac-240Vac) | ||
| Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level [ Test Report ] | |
| [ Test Report ] | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. | |
| 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V | ||
| FAN | Cooling zone | |
| Temperature | Monitoring for CPU and chassis environment | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-5039MC-H12TRF (Black) | |
| Motherboard | ||
| Motherboard | Super X11SCE-F | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Network Card(s) | AOM-CTG-i2SM-12 | 0 | MicroLP 2x 10GbE SFP+, PCI-E 3.0 x8, Intel 82599ES | |||
| Network Card(s) | AOM-C25G-m1SM | 0 | MicroLP, 1x 25GbE SFP28, PCI-E 3.0 x8, Mellanox® | |||
| Network Card(s) | AOM-C25G-i2SM-12 | 0 | MicroLP module 2-Port 25G SFP28, Intel E810-XXVAM2, for MicroCloud 12node | |||
| Network Card(s) | AOM-CTGS-i2TM | 0 | MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550 | |||
| Network Card(s) | AOM-CTG-i1SM | 0 | MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN, ver 1.21 only | |||
| SATA DOM | MEM-IDSAHM3A-032G | 0 | SATA3 ServerDOM MH 3ME 32GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-064G | 0 | SATA3 ServerDOM MH 3ME 64GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-128G | 0 | SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal | |||
| TPM security module | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller,Vertical form factor | ||
| TPM security module | AOM-TPM-9671V | $ 56.50 | 1 | SPI capable TPM 1.2 with Infineon 9670 controller,Vertical form factor | ||
| Add-on Card / Module | AOM-BPN-MC12S4-P | $ 254.50 | 12 | 4x NVMe U.2 connectors BPN for MicroCloud 12 node system,HF,RoHS | ||
| Bracket | MCP-240-93912-0N | $ 23.50 | 12 | Bracket for 4NVMe MB tray with NVMe standoff | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
