Supermicro SYS-E300-9D-4CN8TP Compact Embedded Intel Processor Barebone
• Network Security Appliance
• SDN-WAN, vCPE controller box
• NFV Edge Computing Server
• Virtualization Server
• IoT Edge Computing/Gateway
Barebone Mini-1U Rackmount, Embedded Intel Xeon D-2123IT Processor, 2.20GHz 4-Core/8 Thread/8MB Cache. Up to 512GB 4 DIMM slots. System on Chip. 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ LAN port. 1 PCI-E 3.0 x8 slot. 1x fixed 2.5in drive. DC Power Adapter with PFC. (X11SDV-4C-TP8F +CSE E300)
This product is no longer available.
1. Intel® Xeon® processor D-2123IT, 4-Core, 8 Threads, 60W
2. System on Chip
3. 1 Fixed 2.5" drive bay with bracket
4. 1 M.2 slot M key for SSD, 2242/8, 1 M.2 B Key for SSD/ WAN card, 1 Mini-PCI-E with mSATA Support, 1 PCI-E 3.0 x8 slot
5. Up to 512GB ECC LRDIMM, up to 256GB ECC DIMM DDR4-2666Mz; in 4 DIMM slots
6. 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
7. 1 VGA, 2 USB 3.0
8. 3x 40x28mm 4-PIN PWM Fan
9. Low-noise DC Power Supply
Extra Specifications for Supermicro SYS-E300-9D-4CN8TP Compact Embedded Intel Processor Barebone
| Motherboard | ||
| Motherboard | Super X11SDV-4C-TP8F | |
| Processor/Cache | ||
| CPU | Intel® Xeon® processor D-2123IT , CPU TDP support 60W | |
| Cores / Cache | 4 Cores, 8 Threads | |
| System Memory | ||
| Memory Capacity | Up to 512GB DDR4 ECC LRDIMM | |
| 4 DIMM slots | ||
| Up to 256GB DDR4 ECC DIMM | ||
| Memory Type | Operating speed up to 2400MHz | |
| 2666/2400/2133MHz ECC LRDIMM and ECC DIMM | ||
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB | |
| LRDIMM: 16GB, 32GB, 64GB, 128GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | System on Chip | |
| SATA | SATA3 (6Gbps) ports via SoC controller | |
| Network Controllers | Quad 1GbE with Intel I350-AM4 | |
| Dual 10G SFP+ via SoC | ||
| Dual 10GBase-T with Intel X557 | ||
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| Support for Intelligent Platform | ||
| Management Interface v.2.0 | ||
| Graphics | Aspeed AST2500 BMC | |
| Input / Output | ||
| SATA | SoC controller for 4 SATA3 (6Gbps) ports | |
| LAN | 4x 1GbE LAN ports | |
| 1 Dedicated IPMI LAN port | ||
| 2x 10G SFP+ ports | ||
| 2x 10GBase-T LAN ports | ||
| USB | 2 USB 3.0 ports (rear) | |
| Display | 1 VGA port | |
| TPM | 1 TPM 2.0 header | |
| Chassis | ||
| Form Factor | Compact | |
| Model | CSE-E300 | |
| Dimensions | ||
| Width | 10.43" (264.8mm) / 15" (381mm) - pkg. | |
| Height | 1.7" (43mm) / 10.87" (276mm) - pkg. | |
| Depth | 8.9" (226mm) / 5.59" (142mm) - pkg. | |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) | |
| Net Weight: 3.45 lbs (1.56 kg) | ||
| Available Colors | Black | |

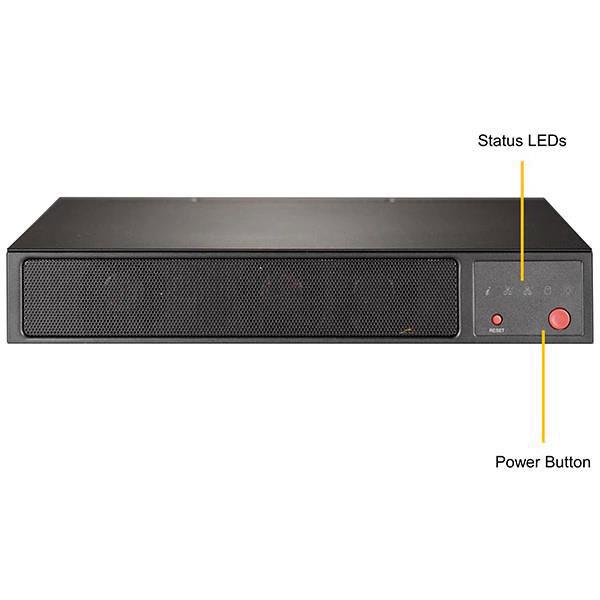

| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED (Hard drive activity LED) | |
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x8 slot | |
| Drive Bays | ||
| Internal | 1 Fixed 2.5" drive bay with bracket (when AOC area is not occupied) | |
| System Cooling | ||
| Fans | 3x 40x28mm 4-PIN PWM Fan | |
| Power Supply | ||
| Power Supply | DC Power Adapter with PFC | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash with AMI BIOS | |
| BIOS Features | UEFI 2.4 | |
| ACPI 5.0 | ||
| USB Keyboard support | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| Hardware BIOS Virus protection | ||
| SMBIOS 2.8 | ||
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| Power Configurations | +12V DC Power Input | |
| ACPI Power Management | ||
| Control of power-on for recovery from AC power loss | ||
| CPU thermal trip support for processor protection | ||
| M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL | ||
| Fan | Fans with tachometer status monitoring | |
| Status monitor for speed control | ||
| Low noise fan speed control | ||
| Pulse Width Modulated (PWM) fan connectors | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C to 40°C (32°F to 104°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer E300-9D-4CN8TP (Black) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Added-On-Card | AOC-SLG3-2M2-O | 0 | Added-On-Card; Supports 2pcs 22x80mm or 22x110mm NVMe M.2 (Note: If the Added-On-Card is installed, no SSD can be installed then) | |||
| Riser Card | RSC-RR1U-E8 | $ 31.50 | 0 | RSC-RR1U-E8 (Rev 4.00) Riser Card | ||
| Chassis Parts | MCP-290-30002-0B | $ 60.00 | 0 | CSE-E300 Rackmount kit (150W/180W adapter supported) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
