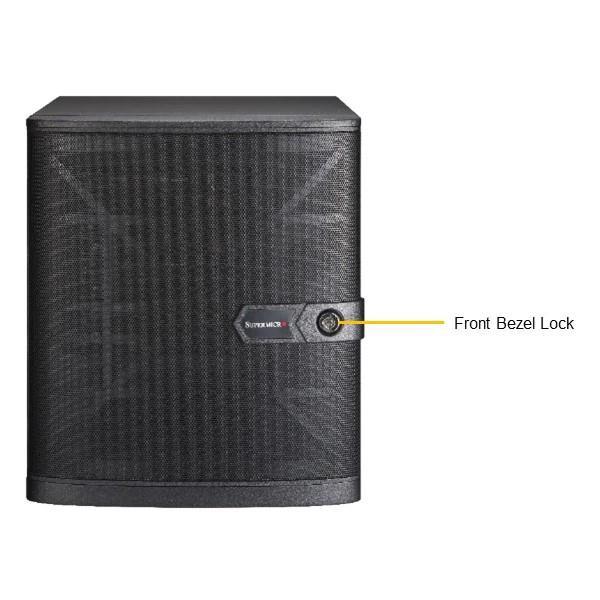

Supermicro SYS-5029C-T Compact Single Intel Processor Barebone
• File server/ Entry Storage
• Local Cloud and Web Hosting
• Mainstream, Compact
Barebone Mini SuperServer for Intel Xeon CPU E-2200 series, Up to 64GB DDR4 memory in 2 DIMM slots. Intel C242 chipset, 2x GbE LAN port, SATA3 Intel controller W/ RAID, SATA DOM, 1x PCI-E. 350W Bronze Power Supply (CSE-721TQ-350B2 + X11SCL iF)
This product is no longer available.
1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
2. Intel® C242 chipset
3. Up to 64GB ECC UDIMM, up to DDR4-2666MHz; 2 DIMM slots
4. 1 PCI-E 3.0 x16 slot (for LP AOC)
5. 4 Hot-swap 3.5" drive bays with BPN, 2 fixed 2.5" drive bays, 1 optional slim DVD-ROM bay
6. M.2 Interface: 1 PCI-E 3.0 x4 or SATA 3.0 M.2 Form Factor: 2280 M.2 Key: M-Key
7. 2 GbE LAN ports, 1 dedicated IPMI LAN
8. 2 USB 3.1 Gen1 (front), 2 USB 3.1 Gen1 (rear), 2 USB 2.0 (rear)
9. 1 VGA, 1 COM, 1 TPM
10. 350W Gold Level power supply (Updated for 2021 Version)
Extra Specifications for Supermicro SYS-5029C-T Compact Single Intel Processor Barebone
| Motherboard | ||
| Motherboard | Super X11SCL-iF | |
| Processor | ||
| CPU | Single Socket H4 (LGA 1151), CPU TDP support up to 80W | |
| Support Intel® Xeon® Processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors | ||
| Cores | 6 cores, 12 threads | |
| Note | BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series | |
| System Memory | ||
| Memory Capacity | Up to DDR4-2666MHz | |
| 2 DIMM slots | ||
| Up to 64GB ECC UDIMM | ||
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| Note | Future support for 64GB via BIOS update expected in early 2019 | |
| On-Board Devices | ||
| Chipset | Intel® C242 chipset | |
| SATA | RAID 0, 1, 5, 10 support | |
| SATA3 (6Gbps) via Intel C242 controller | ||
| IPMI | ASPEED AST2500 | |
| Network Controllers | Dual LAN with Intel® I210-AT | |
| Video | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 2.0 (rear) | |
| 2 USB 3.1 Gen1 (front) | ||
| 2 USB 3.1 Gen1 (rear) | ||
| Video | 1 VGA port | |
| Serial Port / Header | 1 COM port | |
| DOM | SATA DOM (Disk on Module) power connector support | |
| TPM | 1 TPM 2.0 Header | |
| Management | ||
| Software | Watch Dog | |
| SuperDoctor® 5 | ||
| Non-maskable Interrupt (NMI) | ||
| Chassis intrusion detection | ||
| Chassis | ||
| Form Factor | Mini Tower | |
| Model | CSE-721TQ-350B2 | |
| Dimensions and Weight | ||
| Height | 9.45" (240mm) | |
| Width | 8.27" (210mm) | |
| Depth | 11" (279mm) | |
| Weight | Gross Weight: 15 lbs (6.8 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Ports | 2 USB 3.1 Gen1 ports | |
| Expansion Slots | ||
| PCI-E | 1 PCI-E 3.0 x16 slot, for low-profile AOC | |
| Drive Bays | ||
| HDD | 2 internal 2.5" drive bays | |
| 4 Hot-swap 3.5" drive bays with BPN | ||
| Peripheral | 1 optional slim DVD-ROM bay | |
| Power Supply | ||
| Power Supply | 350W Flex ATX Multi-output Gold Power Supply | |
| Total Output Power and Input | 350W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| +5V | Max:15 Amp; Min:0.2 Amp | |
| +12V | Max:28 Amp; Min:0.1 Amp @100V-240V | |
| +3.3V | Max: 10 Amp Min: 0.1 Amp | |
| 5VSB | Max: 2 Amp Min: 0.05 Amp | |
| -12V | Max: 0.3 Amp Min: 0.05 Amp | |
| Certification | Gold Level | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. | |
| 3+0 CPU switch phase voltage regulator | ||
| CPU thermal trip support | ||
| FAN | Low noise fan speedcontrol | |
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for 4x 4-pin fan connectors | ||
| Platform Environmental Control Interface (PECI) | ||
| System BIOS | ||
| BIOS Type | UEFI 256Mb | |
| BIOS Features | SMBIOS 2.7 | |
| ACPI 6.0 | ||
| Plug and Play (PnP) | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI F/W 3.0 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 20% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 5029C-T (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SCL-iF | 1 | Super X11SCL-iF Motherboard | |
| Motherboard / Chassis | CSE-721TQ-350B2 | 1 | Mini Tower Chassis | |
| Air Shroud | MCP-310-00095-0B | 1 | - | |
| Backplane | CSE-SAS-733TQ | 1 | 4x3.5\" SAS2/SATA3 backplane w/SES-II | |
| Cable 1 | CBL-0484L | 4 | SATA,INT,ROUND,ST-ST,55CM,30AWG | |
| Cable 2 | CBL-0157L | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG | |
| Manual | MNL-2170-QRG | 1 | SYS-5029C-T Quick Reference Guide | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Power Supply | PWS-353-1H | 1 | 1U Flex ATX 350W Multi-output Gold power supply |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Adaptor HDD carrier | MCP-220-00043-0N | $ 26.00 | 0 | Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT5 | $ 84.50 | 0 | Black slim SATA DVD (8x DVD, 24x CDR), TEAC | ||
| SATA DVD Kit | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD kit | ||
| Cable | CBL-PWEX-0645 | $ 18.50 | 0 | Big 4 pin male to big 4 pin female, power extension 15cm, 20AWG | ||
| Adaptor HDD carrier | MCP-220-00118-0B | $ 31.50 | 0 | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH | ||
| CPU Heatsink Fan | SNK-P0074AP4 | $ 70.50 | 0 | Active CPU Heat Sink w/ a Side-mount Fan for Intel Socket H Series Motherboards |
