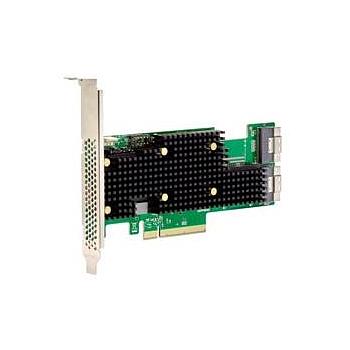

Supermicro AOC-SAS3-9600-16I eHBA 9600-16i Tri-Mode Storage Adapter 16 Internal Ports 24Gb/s PCIe Gen 4.0

Low profile, half-length x8 PCIe Gen 4.0 adapter
eHBA 9600-16i - Ideal for Enterprise Data Center
Hardware Secure Boot and SPDM Attestation support
Connect up to 240 SAS/SATA devices or 32 NVMe devices

Broadcom eHBA 9600-16i Tri-Mode, x8 lane PCI Express 4.0, low-profile MD2, 16x Internal Ports - Connectors: Two x8 SFF-8654 (SlimSAS), Data Transmission Rate: 24Gb/s SAS, 6Gb/s SATA, Devices Supported: SAS/SATA: 240; NVMe: up to 32, 05-50111-00 - (AOC-SAS3-9600-16I)

eHBA 9600-16i Tri-Mode Storage Adapter

The high-port 9600-16i Tri-Mode, PCIe Gen 4.0 eHBA (enhanced HBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility. With increased bandwidth and IOPS performance compared to previous generations, the 9600-16i adapter delivers the performance and scalability needed by critical applications.

Low profile, half-length x8 PCIe Gen 4.0 adapter
Connect up to 240 SAS/SATA devices or 32 NVMe devices
Hardware Secure Boot and SPDM Attestation support
SMART monitoring
Drive temperature monitoring
SafeStore key management for attached SEDs
Universal Bay Management (UBM) Ready

Extra Specifications for Supermicro AOC-SAS3-9600-16I eHBA 9600-16i Tri-Mode Storage Adapter 16 Internal Ports 24Gb/s PCIe Gen 4.0

Main Specifications
Device Type	Storage Adapter Card
Interface (Bus) Type	PCI Express 4.0 x8
Form Factor	Low profile, half-length
Dimensions (WxDxH)	155.52 (+/-0.13) mm x 68.77 (+/-0.13) mm
Connectivity
Connectors	2 x8 SFF-8654 (SlimSAS)
Networking
Ports	16 Internal Ports
Data Transfer Rate	22.5, 12 and 6Gb/s SAS and 6Gb/s SATA
Storage Controller
Max Storage Devices Quantity	SAS/SATA: 240; NVMe: up to 32
Software / System Requirements
Management Software	LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
OS Supports	Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Miscellaneous
MTBF	> 5,000,000 hours at 40° C
Power Supply
Certification	Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE
Environmental
Operating Environment	Operating temperature: 0°C to 55°C (32°F to 131°F)
	Operating Humidity: 5% to 90% Non-condensing

Warranty:	3 years, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	BROADCOM
Type of Support:	FULL
Phone No.:	800-225-5224
URL:	Click here for Manufacturer Website
