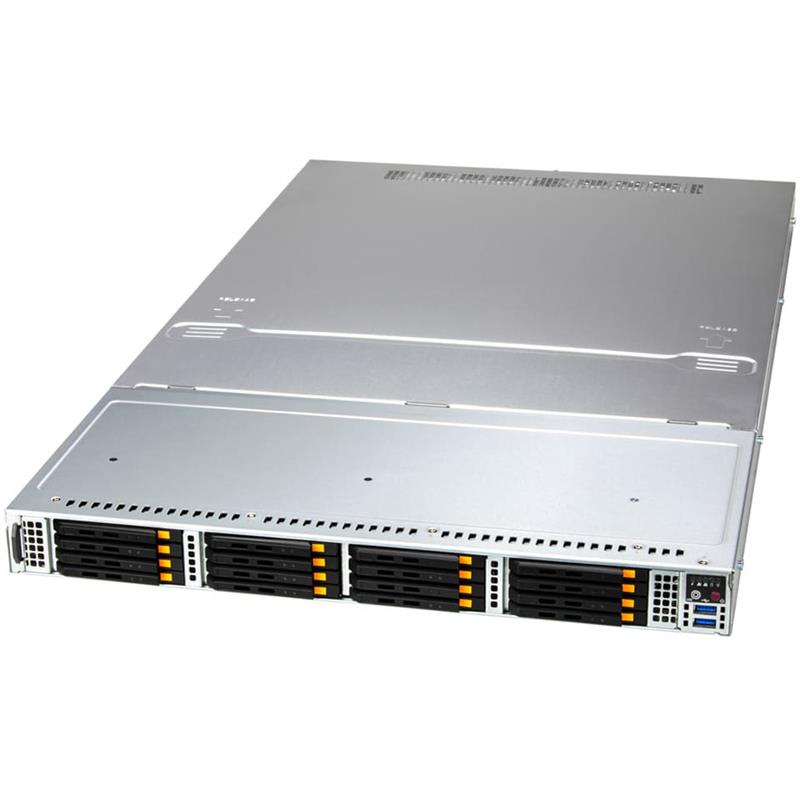

- Supermicro ASG-1115S-NE316R All Flash Storage 1U Barebone Single AMD EPYC 9004 Series Processor
Supermicro ASG-1115S-NE316R All Flash Storage 1U Barebone Single AMD EPYC 9004 Series Processor
• Software-defined Storage
• In-Memory Computing
• Data Intensive HPC
• Private & Hybrid Cloud
• NVMe Over Fabrics Solution
Barebone 1U Rackmount SuperServer, Supports Single Socket SP5, Supporting AMD EPYC 9004 Series Processors (the latest AMD EPYC 9004 Series Processor with AMD 3D V-Cache Technology), System on Chip Up to 6TB in 24 DIMM slots, R/LDIMM, On-Board: NVMe, 16x E3.S Hot-swap NVMe (1T/2T) Drive Slots, Network Connectivity: Via AIOM, 1 RJ45 Dedicated IPMI LAN port, 1600W Power Supply - (ASG-1115S-NE316R + Super H13SSF)
1. Single Socket SP5 AMD EPYC™ 9004/9005 Series processor; up to 300W TDP
2. Supports 24 DIMMs with 2DPC, up to 9TB memory capacity with 24 DIMMs of 384GB 3DS RDIMM/RDIMM DDR5 ECC memory
3. 2 PCIe 5.0 x16 slots & 2 AIOM connectors (OCP 3.0 SFF compliant)
4. 16 Hot-swap E3.S (7.5mm) NVMe drive bays
5. Redundant Titanium 1600W Power Supplies
Extra Specifications for Supermicro ASG-1115S-NE316R All Flash Storage 1U Barebone Single AMD EPYC 9004 Series Processor
| Product SKUs | ||
| Product SKUs | ASG-1115S-NE316R | |
| Motherboard | ||
| Motherboard | Super H13SSF | |
| Processor | ||
| CPU | Single Socket SP5 | |
| AMD EPYC™ 9004 Series Processor | ||
| Support CPU TDP 200-300W * | ||
| Cores | Up to 96C/192T | |
| Note | *Supports 200W - 300W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | Memory Type: 4800MHz ECC DDR5 RDIMM;LRDIMM | |
| Memory Capacity: 24 DIMM slots | ||
| Up to 6TB: 24x 256 GB DRAM | ||
| Memory Voltage | 1.1 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | Via AIOM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| USB | 4 USB 3.0 port(s) (2 front; 2 rear) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SUM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-126E32-R1K62P | |
| Dimensions and Weight | ||
| Height | 1.7" (43.6mm) | |
| Width | 17.2" (438.4mm) | |
| Depth | 30.4" (773.25mm) | |
| Package | 7.87" (H) x 23.81" (W) x 40.55" (D) | |
| Weight | Net Weight: 48 lbs (21.8 kg) | |
| Gross Weight: 68.74 lbs (31.2 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| Buttons | Power On/Off | |
| LEDs | Power status | |
| Network activity | ||
| System information (overheat/UID) | ||
| SSD activity | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 5.0 x16 FH slot(s) | |
| 2 PCIe 5.0 x16 AIOM slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 16x E3.S Hot-swap NVMe (1T/2T) drive slots | |
| M.2 | M-Key, 2280 and 22110 | |
| 2x PCIe 3.0 (NVMe slots) | ||
| System Cooling | ||
| Fans | 8 Heavy Duty 4cm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1600W: 200-240Vac / 50-60Hz | ||
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 133A / Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 2.1A / Min: 0A | |
| Output Type | Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-condensing) | ||
| Non-operating Relative Humidity: 8% to 95% (Non-condensing) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Network Cards | AOC-S25G-M2S | $ 204.00 | 0 | Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN | ||
| Network Cards | AOC-S40G-I2Q | $ 377.00 | 0 | Standard LP 2-port 40GbE controller, Intel Fortville XL710 | ||
| Network Cards | AOC-SGP-I2 • | 0 | Standard LP 2-port GbE, Intel 82575 | |||
| Network Cards | More | 0 | AOC Compatibility Matrix (Select Storage & Generation) | |||
| Power Cord | CBL-PWCD-0579 | $ 23.00 | 0 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | ||
| Power Cord | CBL-PWCD-0300-IS | $ 20.00 | 0 | PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH | ||
| Power Cord | CBL-PWCD-0579-1 | $ 23.00 | 0 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | ||
| TPM | AOM-TPM-9670V-O • | 1 | TPM 2.0, vertical form factor, provisioned for server | |||
| TPM | AOM-TPM-9671V-O | 1 | TPM 1.2, vertical form factor, provisioned for server |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
