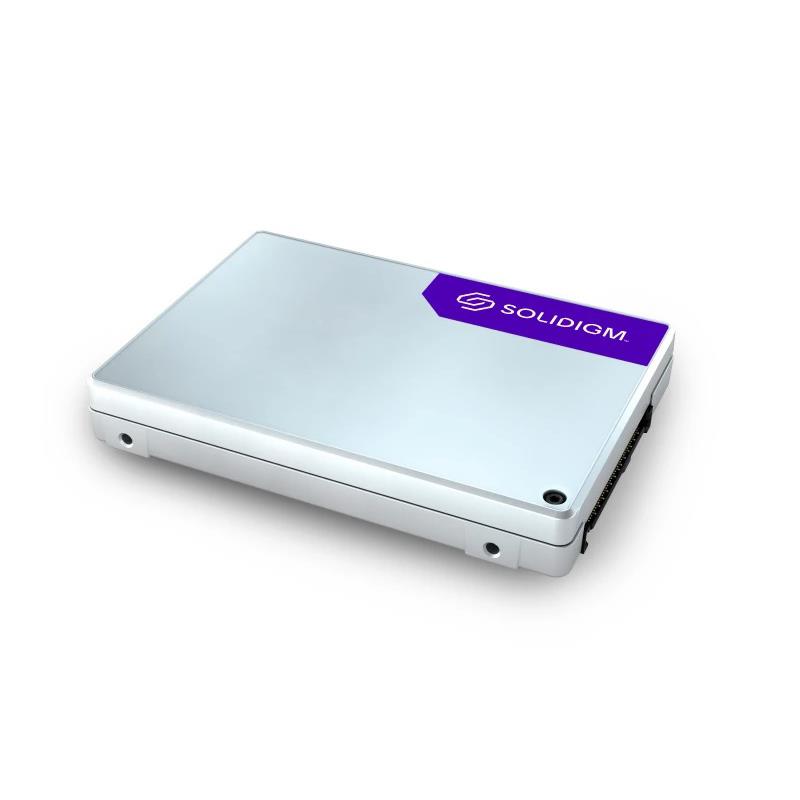

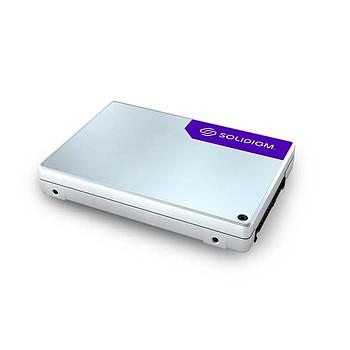

Solidigm SBFPF2BV076TOP1 Hard Drive 7.68TB NVMe SSD PCIe x4 Lanes Generation 4.0 U.2 15mm QLC NAND 0.4DWPD OPAL Encrypted D5-P5336 Series

PCIe 4.0 & NVMe 1.3c – Fast and efficient data transfer
144-Layer QLC NAND – Cost-effective, high-density storage
High-Capacity Storage – Up to 7.68T for large-scale data needs
Enterprise Reliability – Designed for 24/7 operation with robust endurance

The Hard Drive Features 7.68TB Storage Capacity With NVMe Solid State Drive (SSD) Built With PCIe Generation 4 x4 Interface, Designed in U.2 Form Factor Thickness of 15mm. Quad-Level Cell (QLC) Technology, With a Durability Rating Of 0.4DWPD. Optimized For Hyper-scalable, Cost-effective Solution For Data And Read-intensive Workloads Applications. Features: OPAL Encrypted Solidigm D5-P5336 - OEM

The Solidigm D5-P5336 is a high-capacity, enterprise-grade NVMe SSD designed for read-intensive workloads. Built with 144-layer QLC NAND and PCIe 4.0 interface, it delivers efficient performance and scalability for data centers, AI, and cloud storage applications. Offering capacities up to 61.44TB, it optimizes total cost of ownership while ensuring reliability for 24/7 operations.

Extra Specifications for Solidigm SBFPF2BV076TOP1 Hard Drive 7.68TB NVMe SSD PCIe x4 Lanes Generation 4.0 U.2 15mm QLC NAND 0.4DWPD OPAL Encrypted D5-P5336 Series

Main Specifications
Device Type	NVMe Solid state drive - internal
Capacity	7.68TB
Form Factor	U.2 15mm
Interface	PCIe 4.0 x4 NVMe
NAND Flash Memory Type	192 L QLC 3D NAND
Weight	150g +/-10g
Performance
4KB Random Read	770000 IOPS (4K, QD256)
4KB Random Write	17900 IOPS (16K, QD256)
Endurance DWPD	0.4DWPD
Average Latency	Latency - Random Read (typ.): 110μs (4K Blocks)
	Latency - Sequential Read (typ.): 10μs (4K Blocks)
	Latency - Sequential Write (typ.): 15μs (16K Blocks)
	Latency - Random Write (typ.): 50μs (16K Blocks)
Power
Power Consumption (Active)	15w
Power Consumption (Idle)	5W
Miscellaneous
MTBF	2 million hours
Uncorrectable Bit Error Rate (UBER)	<1 sector per 10^17 bits read
Environmental
Operating Environment	Operating Temperature Range: 0°C to 70°C
	Vibration - Operating: 2.17 GRMS (5 - 700 Hz) Max
	Vibration - Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
	Shock (Operating and Non-Operating): 1,000 G (Max) at 0.5 msec

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	1-2 weeks
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	SOLIDIGM
Type of Support:	FULL
Phone No.:	833-313-7337
URL:	Click here for Manufacturer Website

Solidigm SBFPF2BV076TOP1 Hard Drive 7.68TB NVMe SSD PCIe x4 Lanes Generation 4.0 U.2 15mm QLC NAND 0.4DWPD OPAL Encrypted D5-P5336 Series

$ 1,000.00$ 1,000.001000.0USD

$ 1,000.00
