| Main Specifications |

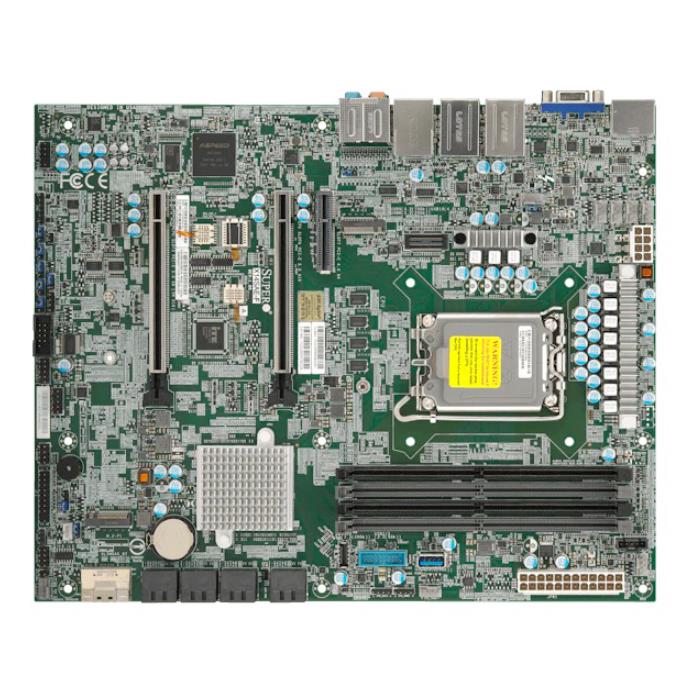

| Device Type | Motherboard |
| Form Factor | ATX |
| Dimensions (WxDxH) | 12" x 9.3" (30.5cm x 24.4cm) |
| Processor |
| Compatible Processors | Intel Core Ultra 9/7/5 Processors |
| Compatible Socket | Single Socket V1 (LGA-1851) supported, CPU TDP supports Up to 125W TDP |
| Number of Cores | Up to 24C |
| System Memory |
| Memory Type | Slot Count: 4 DIMM Slots, Max Memory (1DPC): Up to 256GB 5600MT/s ECC/non-ECC DDR5 UDIMM |
| DIMM Sizes | UDIMM:8GB, 16GB, 12GBGB, 24GB, 32GB, 48GB, 64GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel W880 |
| SATA/SAS | 1 SlimSAS connector |
| 1 SATA (6Gbps), via SlimSAS |
| 8 SATA (6Gbps), RAID 0/1/5/10 support |
| Network Controllers | Single LAN with Realtek RTL8211F PHY (Dedicated for IPMI), Dedicated LAN for IPMI |
| Single LAN with Intel I226LM Ethernet Controller |
| Single LAN with Intel PHY I219LM LAN controller, for AMT/vPro |
| Audio | ALC 888S HD Audio |
| Input / Output |
| USB(s) | 2 USB 3.2 Gen1 port(s) (Header) |
| 3 USB 3.2 Gen2 Type-A port(s) (Rear) |
| 1 USB 3.2 Gen2x2 Type-C port(s) (Rear) |
| 1 USB 3.2 Gen2x2 port(s) (Header) |
| 1 USB 4 Type-C port(s) (Rear) |
| Video Output | 1 VGA port |
| 1 Intel Thunderbolt 4 Type C (Shared w/ USB4/ DP2.1) 2.1 port(s) |
| 1 Display Port port(s) |
| 1 HDMI 2.1 port (8K@60Hz) |
| Serial Port / Headers | 1 COM port(s) (header) |
| TPM | 1 TPM 2.0 onboard |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 4.0 x4 slot, 2 PCIe 5.0 x16 slots |
| M.2 | 1 M.2 PCIe 4.0 x4 slot (M-key 2280/22110) |
| 1 M.2 PCIe 5.0 x4 slot (M-key 2280) |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
| BIOS Features | ACPI 6.5, UEFI 2.9, SMBIOS 3.8 or later |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Memory |
| Voltage | +1.8V CPU,+12V,+3.3V,+5V,1.05 (PCH),3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,PCH temperature,System temperature,Triple Cooling Zones,UID,VBAT |
| PC Health Monitoring |
| FAN | 7x 4-pin fan headers (up to 7 fans), 5 fans with tachometer status monitoring, Fan speed control, Overheat LED indication |
| Other Features | 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL |
| Environmental |
| Operating Environment | Non-operating Temperature: -20°C to 60°C (-4°F to 140°F) |
| Operating Temperature: 0°C to 50°C (32°F to 112°F ) |
| Parts List |
| I/O Shield | 1x MCP-260-00192-1B |
| QRG | MNL-2706-QRG |
| I/O Cables | 4x CBL-0044L |
