Supermicro Ready-To-Deploy Gold series
Best-selling server platforms, pre-configured with key components for reduced lead times!
Why Supermicro Gold Series?
• Pre-configured for specific workloads
• Include CPUs, memory, storage, networking, PSUs, and GPUs (AI only)
• Pre-tested and ready to go from day one
• Pre-configuration means no need to wait for components or assembly
• Ready-to-deploy from Supermicro’s warehouses
• Most systems ship next business day
• Delivered to the customer with components already installed and pre-tested
• Simply unpack, rack, and connect power & networking
AS-1115HS-TNR-G1
1U UP Hyper server used for Virtualization & Cloud Services
• Single AMD EPYC 9454P (48C/2.75GHz) CPU
• 384GB DDR5-5600 (at 4800MT/s) memory
• 1x 960GB U.2 NVMe SSD,
• Dual 10GbE RJ45 for networking
• 2x 1200W Titanium Level power
SYS-121H-TNR-G1
1U DP Hyper server used for Virtualization & Cloud Services
• Dual Intel® Xeon® 6548Y+ (32C/2.5GHz) CPUs
• 512GB DDR5-5600 memory
• 2x 3.8TB U.2 NVMe SSDs
• 1x 960GB U.2 NVMe SSD
• Dual 10GbE RJ45 for networking
• 2x 1200W Titanium Level power
AS-1125HS-TNR-G1
1U DP Hyper server used for Virtualization & Cloud Services
• Dual AMD EPYC 9654 (96C/2.4GHz) CPUs
• 2.3TB DDR5-5600 (at 4800MT/s) memory
• 2x 960GB M.2 NVMe SSDs
• 1x 960GB U.2 NVMe SSD
• Dual 10GbE RJ45 for networking
• 2x 1200W Titanium Level power
SYS-521C-NR-G1
2U UP CloudDC server used for Appliance/Cloud Storage
• Single Intel® Xeon® 4510 (12C/2.4GHz) CPU
• 128GB DDR5-5600 memory
• 2x 960GB M.2 NVMe SSDs
• Dual 10GbE RJ45 for networking
• 2x 1200W Titanium Level power
AS-2015CS-TNR-G1
2U UP CloudDC server used for Appliance/Cloud Storage
• Single AMD EPYC 9454P (48C/2.75GHz) CPU
• 768GB DDR5-5600 (at 4800MT/s) memory
• 2x 960GB M.2 NVMe SSDs
• Dual 10GbE RJ45 for networking
• 2x 1200W Titanium Level power
SYS-111C-NR-G1
1U UP CloudDC server used for Database Management
• Single Intel® Xeon® 4510 (12C/2.4GHz) CPU
• 128GB DDR5-5600 memory
• 2x 960GB M.2 NVMe SSDs
• Dual 10GbE RJ45 for networking
• 2x 860W Titanium Level power
AS-1115CS-TNR-G1
1U UP CloudDC server used for Database Management
• Single AMD EPYC 9454P (48C/2.75GHz) CPU
• 384GB DDR5-5600 (at 4800MT/s) memory
• 2x 960GB M.2 NVMe SSDs
• Dual 10GbE RJ45 for networking
• 2x 860W Platinum Level power
SYS-511E-WR-G1
1U WIO server used for General Compute/Web Hosting
• Single Intel® Xeon® 4510 (12C/2.4GHz) CPU
• 64GB DDR5-5600 memory
• 1x 960GB M.2 NVMe SSD
• Dual 1GbE RJ45 for networking
• 2x 860W Titanium Level power
SYS-821GE-TNHR-G1
8U 8-GPU HGX server used for Large Size Enterprise AI Inference & Training
• Dual Intel® Xeon® 8570 (56C/2.1GHz) CPUs
• NVIDIA HGX H200 8-GPU, 3TB DDR5-5600 memory
• 2x 960GB M.2 NVMe SSDs
• 8 single 400G NDR/ETH OSFP
• Dual 200G NDR200/ETH QSFP112 for networking
• 8x 3000W Titanium Level power
SYS-421GE-TNHR2-LCC-G1
4U 8-GPU HGX Liquid Cooled server used for Large Size Enterprise AI Inference & Training
• Dual Intel® Xeon® 8570 (56C/2.1GHz) CPUs
• NVIDIA HGX H200 8-GPU
• 3TB DDR5-5600 memory
• 2x 960GB M.2 NVMe SSDs
• 8 single 400G NDR/ETH OSFP
• Dual 200G NDR200/ETH QSFP112 for networking
• 4x 5250W Titanium Level power
AS-8125GS-TNHR-G1
8U 8-GPU HGX server used for Large Size Enterprise AI Inference & Training
• Dual AMD EPYC 9474F (48C/3.6GHz) CPUs
• NVIDIA HGX H200 8-GPU
• 2.3TB DDR5-5600 (at 4800MT/s) memory
• 1x 1.9TB U.2 NVMe SSD
• 8x 400G NDR/ETH OSFP
• 4 single 400GbE QSFP112
• Dual 10GbE RJ45 for networking
• 6x 3000W Titanium Level power
AS-8125GS-TNMR2-G1
8U 8-GPU Instinct server used for Large Size Enterprise AI Inference & Training
• Dual AMD EPYC 9654 (96C/2.4GHz) CPUs
• AMD Instinct MI300X 8-GPU
• 2.3TB DDR5-5600 (at 4800MT/s) memory
• 1x 1.9TB U.2 NVMe SSD
• Dual 200G NDR200/ETH QSFP112 for networking
• 6x 3000W Titanium Level power
SYS-521GE-TNRT-G1
5U PCIe GPU server used for Large Enterprise AI Inference & Training
• Dual Intel® Xeon® 8562Y+ (32C/2.8GHz) CPUs
• 8 NVIDIA L40S PCIe
• 1TB DDR5-5600 memory
• 2x 960GB SATA SSDs
• Single IB/Ethernet NDR200 for networking
• 4x 2700W Titanium Level power
AS-4125GS-TNRT-G1
4U PCIe GPU server used for Medium Size Enterprise AI Inference & Training
• Dual AMD EPYC 9124 (16C/3GHz) CPUs
• 2 NVIDIA L40S PCIe
• 1.5TB DDR5-5600 (at 4800MT/s) memory
• 1x 1.9TB U.2 NVMe SSD
• Dual 10GbE RJ45 for networking
• 4x 2000W Titanium Level power
SYS-221H-TNR-G1
2U DP Hyper server used for Medium Enterprise AI Inference & Training
• Dual Intel® Xeon® 8562Y+ (32C/2.8GHz) CPUs
• 2 NVIDIA L40S, 1TB DDR5-5600 memory
• 2x 960GB M.2 NVMe SSDs
• Dual 10GbE RJ45 for networking
• 2x 2000W Titanium Level power
AS-2025HS-TNR-G1
2U DP Hyper server used for Medium Enterprise AI Inference & Training
• Dual AMD EPYC 9654 (96C/2.4GHz) CPUs
• 2 NVIDIA L40S
• 2.3TB DDR5-5600 (at 4800MT/s) memory
• 1x 960GB U.2 NVMe SSD
• Dual 10GbE RJ45 for networking
• 2x 2000W Titanium Level power
SSG-221E-NE324R-G1
2U 24-bay E3.S server used for AI, VDI, CDN, Object & Cloud Computing
• Dual Intel® Xeon® 6548Y+ (32C/2.5GHz) CPUs
• 256GB DDR5-5600 memory
• 1x 960GB M.2 NVMe SSD
• 1x 1.92TB E3.S NVMe SSD
• Quad 1GbE RJ45 for networking
• 2x 2000W Titanium Level power
SSG-121E-NES24R-G1
1U 24-bay E1.S server used for AI, VDI, CDN, Object & Cloud Computing
• Dual Intel® Xeon® 6548Y+ (32C/2.5GHz) CPUs
• 256GB DDR5-5600 memory
• 1x 480GB M.2 NVMe SSD
• 1x 3.8TB E1.S NVMe SSD
• Dual 25GbE SFP28 for networking
• 2x 2000W Titanium Level power
SYS-221H-TN24R-G1
2U DP Hyper 24-bay U.2 server used for Software Defined Storage
• Dual Intel® Xeon® 6548Y+ (32C/2.5GHz) CPUs
• 256GB DDR5-5600 memory
• 2x 960GB M.2 NVMe SSDs
• 4x 3.8TB U.2 NVMe SSDs
• Dual 25GbE SFP28 for networking
• 2x 1600W Titanium Level power
SSG-521E-E1CR24H-G1
2U Simply Double server used for Big Data/Hadoop
• Single Intel® Xeon® 4510 (12C/2.4GHz) CPU
• 256GB DDR5-5600 memory
• 1x 960GB M.2 NVMe SSD
• 2x 20TB 3.5” SATA
• HW RAID via Broadcom® 3908 storage controller
• Dual 10GbE RJ45 for networking
• 2x 1600W Titanium Level power
ASG-2015S-E1CR24H-G1
2U Simply Double server used for Big Data/Hadoop
• Single AMD EPYC 9124 (16C/3GHz) CPU
• 256GB DDR5-5600 (at 4800MT/s) memory
• 1x 960GB M.2 NVMe SSD
• 2x 20TB 3.5” SATA
• HW RAID via Broadcom® 3908 storage controller
• Dual 10GbE RJ45 for networking
• 2x 1600W Titanium Level power
SSG-640SP-E1CR60-G1
4U 60-Bay Top-Loading server used for Cloud Object Storage
• Dual Intel® Xeon® 4310 (12C/2.1GHz) CPUs
• 256GB DDR4-3200 memory
• 1x 960GB M.2 NVMe
• 4x 20TB 3.5” SATA
• HW RAID via Broadcom® 3916 storage controller
• Dual 10GbE RJ45 for networking
• 2x 2000W Titanium Level power
SSG-640SP-E1CR90-G1
4U 90-Bay Top-Loading server used for Cloud Object Storage
• Dual Intel® Xeon® 4310 (12C/2.1GHz) CPUs
• 256GB DDR4-3200 memory
• 1x 960GB M.2 NVMe
• 4x 20TB 3.5” SATA
• HW RAID via Broadcom® 3916 storage controller
• Dual 10GbE RJ45 for networking
• 2x 2600W Titanium Level power
SYS-E403-13E-FRN2T-G1
2.5U Edge Box PC server used for Edge AI Computing
• Single Intel® Xeon® 4510 (12C/2.4GHz) CPU
• 128GB DDR5-5600 memory
• 1x 480GB M.2 NVMe SSD
• Dual 10GbE RJ45 for networking
• 1x 800W Platinum Level power
SYS-E300-13AD-G1
Compact Edge Mini-1U Server server used for Edge Computing
• Single Intel® Core i5-13500E (14C/2.4GHz) CPU
• 32GB DDR4-3200 memory
• 1x 960GB M.2 NVMe SSD
• Single 2.5GbE RJ45
• Dual 10GbE SFP+ and Quad 1GbE RJ45 for networking
• Single 180W power supply
SYS-E200-12A-G1
Ultra-Compact Fanless Edge server used for Edge Computing
• Single Intel® Atom® C5325 (8C/2.4GHz) CPU
• 32GB DDR4-3200 memory
• 1x 960GB M.2 NVMe SSD
• Single 1GbE RJ45 and Dual 2.5GbE RJ45 for networking
• Single 150W power supply
SYS-E100-13AD-G1
Compact Fanless Edge server used for Edge Computing
• Single Intel® Core i3-1215UE (6C) CPU
• 16GB DDR5-4800 memory
• 1x 256GB M.2 SATA SSD
• Dual 2.5GbE RJ45 for networking
• Single 84W power supply
AS-1115HS-TNR-02-G1
1U UP Hyper server used for Virtualization & Cloud Computing
• Single Intel® Core i5-13500E (14C/2.4GHz) CPU
• 32GB DDR5 memory
• 1x 1x 960GB U.2 NVMe SSD
• 1 Quad 1GbE RJ45 networking
• 2x 1200W Titanium Level power
AS-1115S-FWTRT-02-G1
1U IoT A+ Server used for intelligent edge Computing
• Single AMD EPYC 8124P (16C/2.45GHz) CPU
• 128GB DDR5-5600 memory
AS-1125HS-TNR-02-G1
1U Hyper server used for Virtualization & Cloud Computing

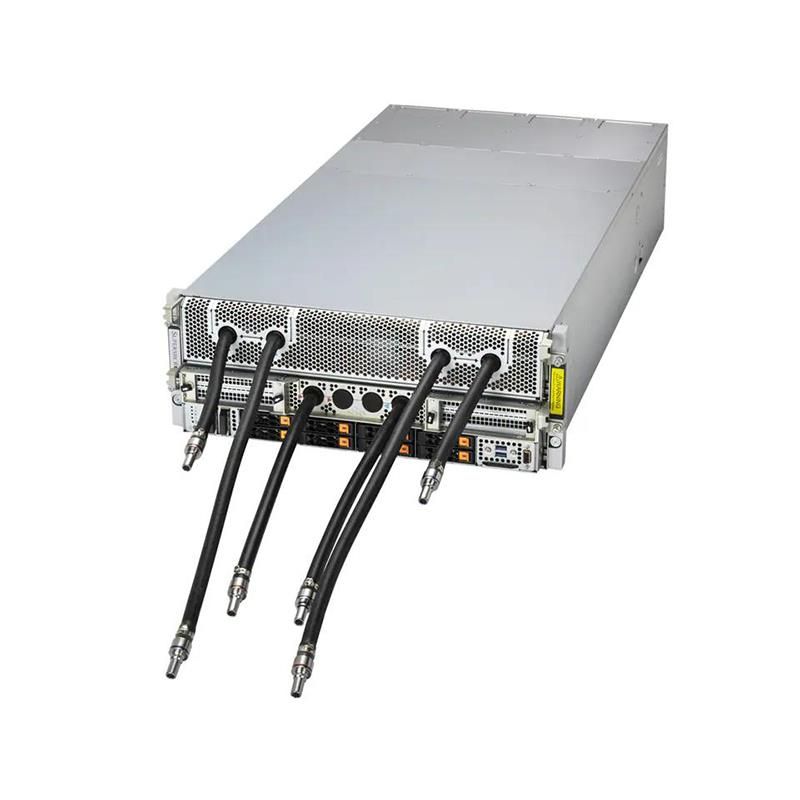

AS-4126GS-NBR-LCC-G1
4U DP GPU A+ Server used for Large-Scale Enterprise AI Inference & Training
• Dual AMD EPYC 9575F (64C/3.3GHz) CPU
• NVIDIA HGX B200 8-GPU
• 3TB DDR5-6400 memory
• 2x 960GB M.2 NVMe SSD
• 4x 15.3TB U.2 NVMe SSD
• 8x Single 400G NDR/ETH OSFP networking
• 4x 6600W Redundant (2+2) Titanium Level power
AS-4126GS-NMR-LCC-G1
4U DP GPU A+ Server used for Enterprise AI Inference & Training
• Dual AMD EPYC 9575F (64C/3.3GHz) CPU
• AMD Instinct MI325X 8-GPU
• 2.3TB DDR5-6400 memory
• 1x 480GB M.2 NVMe SSD
• 8 single 400GbE QSFP112, 1 dual 10GbE RJ45 networking
• 4x 6600W Titanium Level power

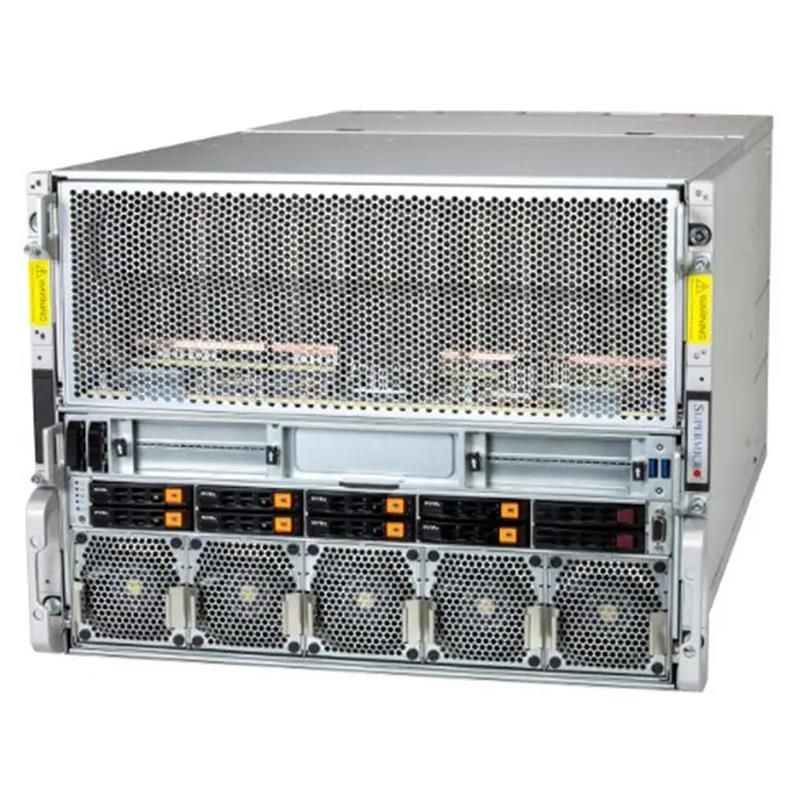

AS-8126GS-TNMR-G1
4U DP GPU A+ Server used for Enterprise AI Inference & Training
• Dual AMD EPYC 9575F (64C/3.3GHz) CPU
• AMD Instinct MI325X 8-GPU
• 2.3TB DDR5-6400 memory
• 4x 3.8TB U.2 NVMe SSD, 1x 960GB U.2 NVMe SSD
• 8 single 400GbE QSFP112, 1 dual 10GbE RJ45 networking
• 6x 5250W Titanium Level power

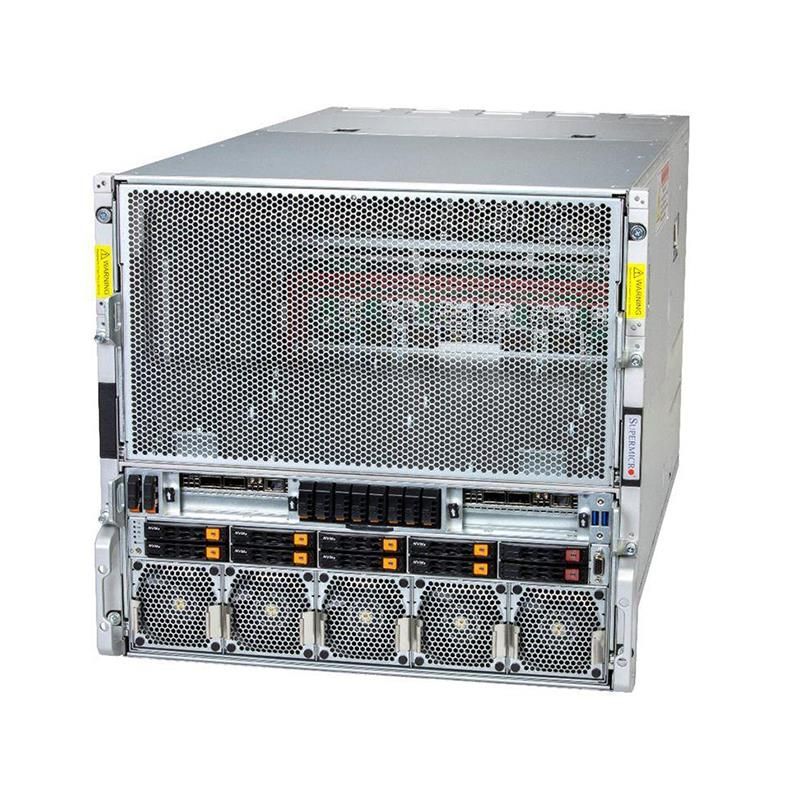

AS-A126GS-TNBR-G1
10U DP GPU A+ Server used for Large-scale AI training, LLMs, generative AI, and inferencing
• Dual AMD EPYC 9575F (64C/3.3GHz) CPU
• NVIDIA HGX B200 8-GPU
• 3TB DDR5-6400 memory
• 2x 1.92TB M.2 NVMe SSD
• 8x 3.8TB U.2 NVMe SSD
• 8x Single 400G NDR/ETH OSFP, 1x NVIDIA BlueField-3 DPU 200Gb/s
• 6x 5000W Redundant (3+3) Titanium Level

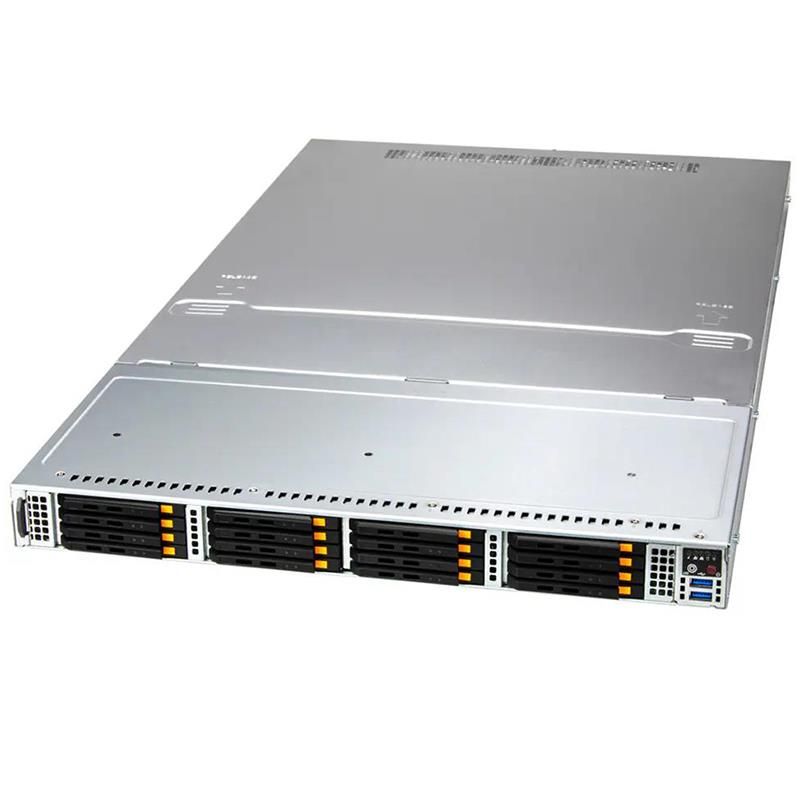

ASG-1115S-NE316R-02-G1
1U front-loading all-flash storage server used for large-scale AI training, LLMs, generative AI, and inferencing
• Single AMD EPYC 9454P (48C/2.75GHz) CPU
• 384GB DDR5-5600 memory
• 2x 960GB M.2 NVMe SSD
• Dual 10GbE RJ45 for networking
• 2x 1600W Titanium Level power

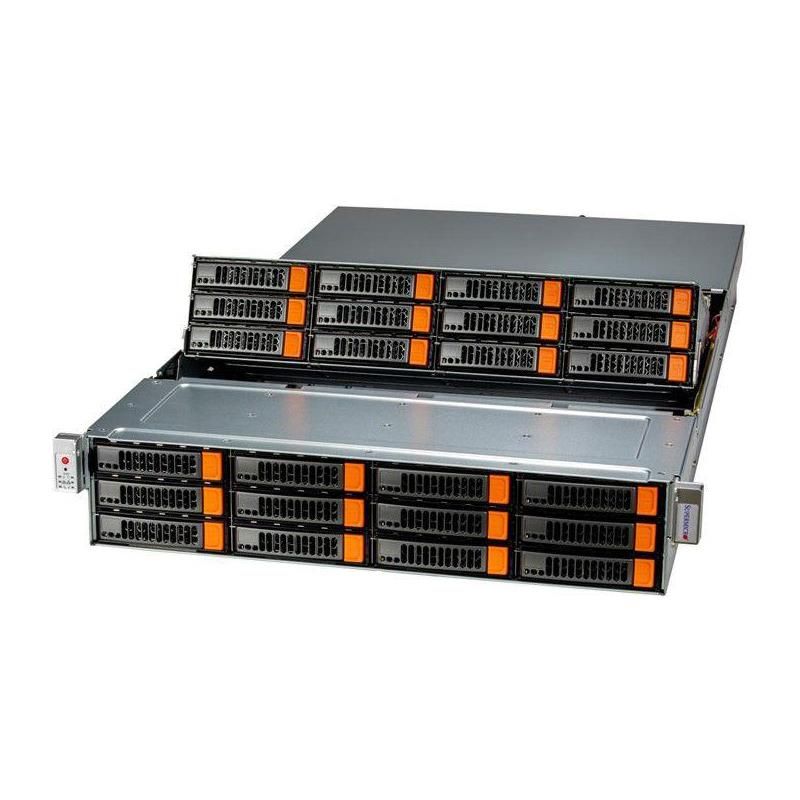

ASG-2015S-E1CR24L-02-G1
2U front/top-loading storage server used for Enterprise Storage
• Single AMD EPYC 9334 (32C/2.7GHz) CPU
• 512GB DDR5-4800 memory
• 1x 960GB M.2 NVMe SSD
• 24x 22TB 3.5 SAS
• Dual 100GbE QSFP28 for networking
• 2x 1600W Titanium Level power

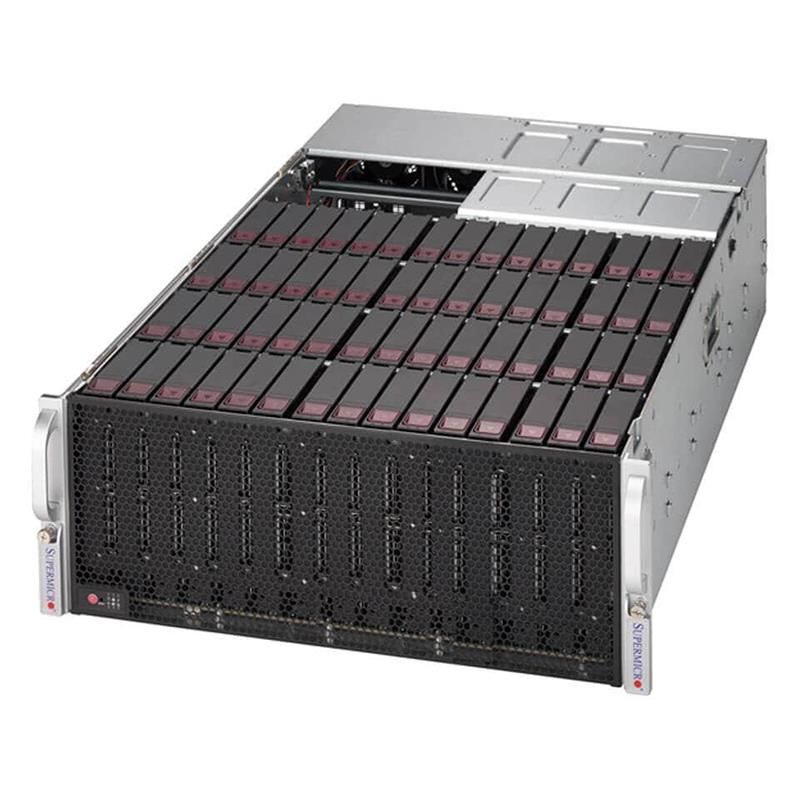

SSG-540P-E1CTR60L-02-G1
4U top-loading storage server used for Data Warehousing, Archiving and Database Applications
• Single Intel Xeon 4310 (12C/2.1GHz) CPU
• 128GB DDR4-3200 memory
• 1x 480GB M.2 NVMe SSD
• 1 dual 25GbE SFP28 networking
• 2x 1600W Titanium Level power
SYS-110P-FRN2T-02-G1
1U Compact systems used for Artificial Intelligence on Edge, Machine Learning
• Single Intel Xeon 4310 (12C/2.1GHz) CPU
• 64GB DDR4-3200 memory
• 1x 480GB M.2 NVMe SSD
• 1x 480GB 2.5" SATA
• Dual 10GbE RJ45 networking
• 1x 800W Platinum Level

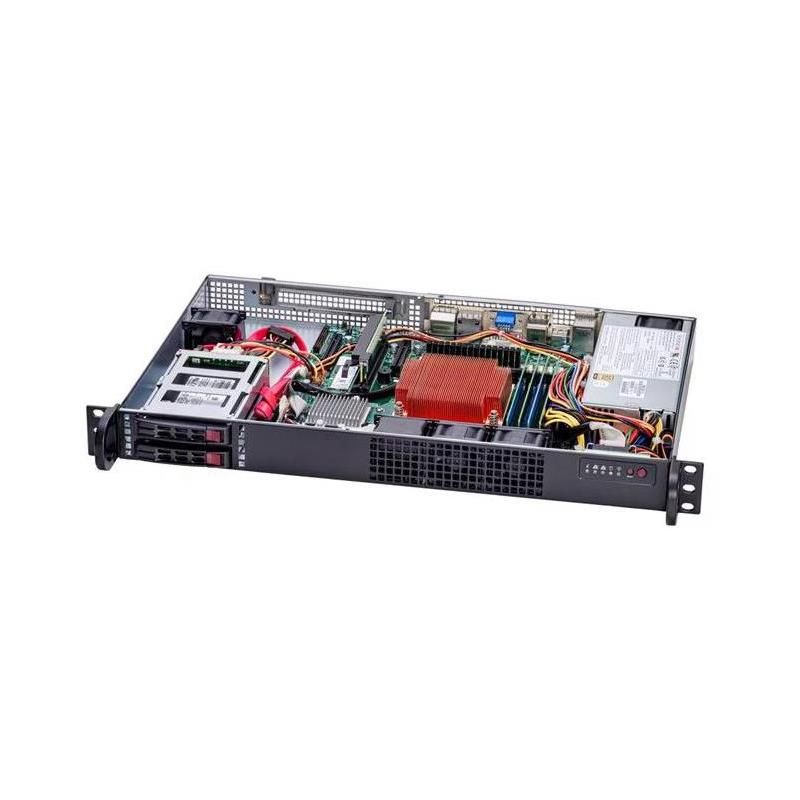

SYS-111AD-HN2-02-G1
1U Compact systems used for Video Surveillance, Digital Signage, POS
• Single Intel Core i7-12700E (12C/2.1GHz) CPU
• 32GB DDR5-4800 memory
• 1x 1.92TB 2.5" SATA
• Dual 2.5GbE RJ45 for networking
• 1x 200W Gold Level power

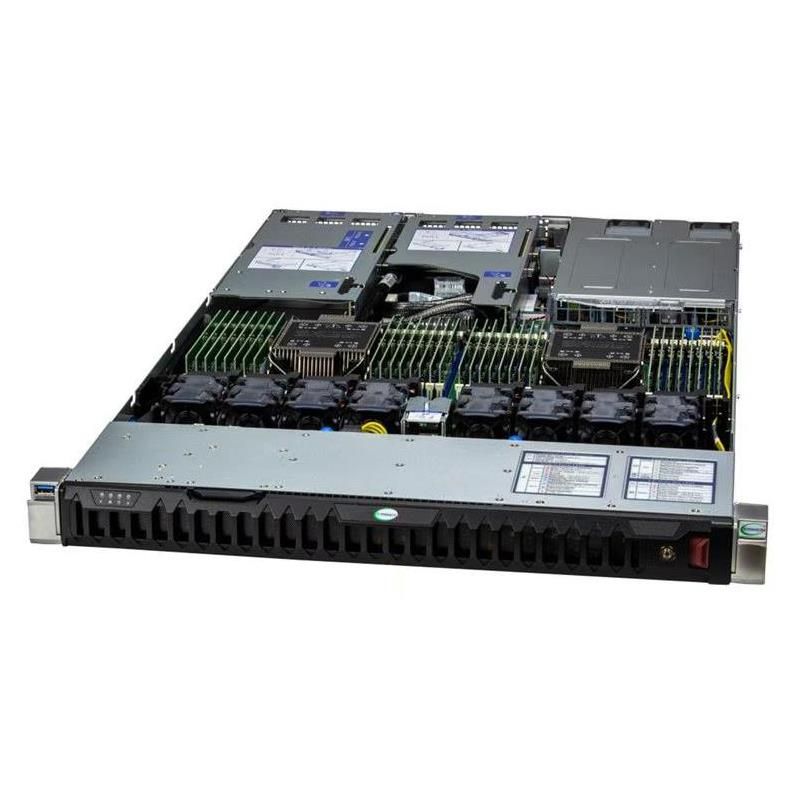

SYS-121H-TNR-02-G1
1U UP Hyper server used for Virtualization & Cloud Computing
• Dual Intel Xeon 6542Y (24C/2.9GHz) CPU
• 256GB DDR5-5600 memory
• 1x 3.8TB U.2 NVMe SSD
• Dual 10GbE RJ45 for networking
• 2x 1200W Titanium Level power

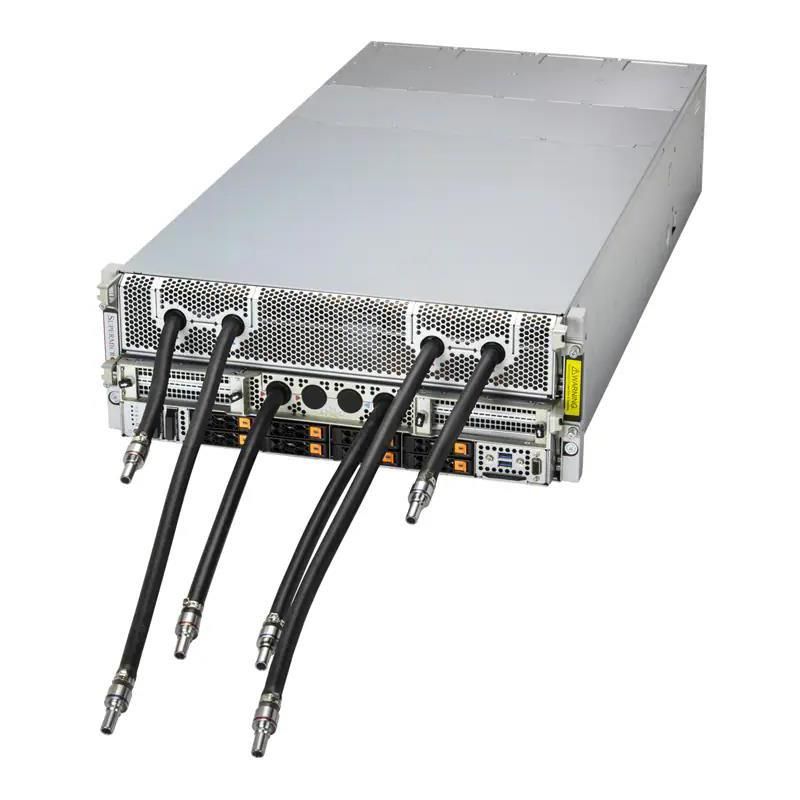

SYS-421GE-NBRT-LCC-G1
4U 8-GPU HGX server used for Large-Scale AI training, LLMs, generative AI, and inferencing
• Dual Intel Xeon 8570 (56C/2.1GHz) CPU
• NVIDIA HGX B200 8-GPU
• 2.3TB DDR5-4800 memory
• 2x 1.92TB M.2 NVMe SSD
• 8x 3.8TB U.3 NVMe SSD
• 8x Single 400G NDR/ETH OSFP, 1x NVIDIA BlueField-3 DPU 200Gb/s
• 4x 6600W Redundant (2+2) Titanium Level power

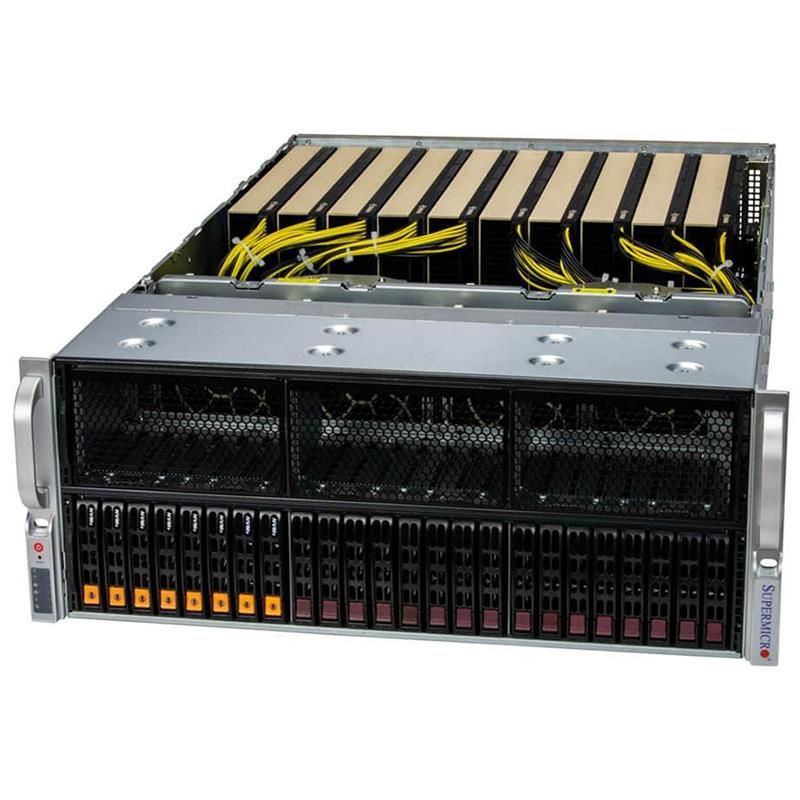

SYS-421GE-TNRT-02-G1
4U DP GPU server used for High Performance Computing & 3D Rendering
• Dual Intel Xeon 8562Y+ (32C/2.8GHz) CPU
• 8 NVIDIA L40S PCIe
• 1TB DDR5-5600 memory
• 1x 960GB M.2 NVMe SSD
• 2x 1.92TB U.2 NVMe SSD
• 3x dual 100GbE QSFP56 for networking
• 4x 2700W Titanium Level power
SYS-422GA-NBRT-LCC-G1
4U DP GPU server used for Large Language Model (LLM) and Generative AI
• Dual Intel Xeon 6960P (72C/2.7GHz) CPU
• NVIDIA HGX B200 8-GPU
• 2.3TB DDR5-6400 memory
• 2x 1.92TB M.2 NVMe SSD
• 4x 1.9TB U.2 NVMe SSD
• 8x Single 400G NDR/ETH OSFP, 1x NVIDIA BlueField-3 DPU 200Gb/s
• 4x 6600W Redundant (2+2) Titanium Level power

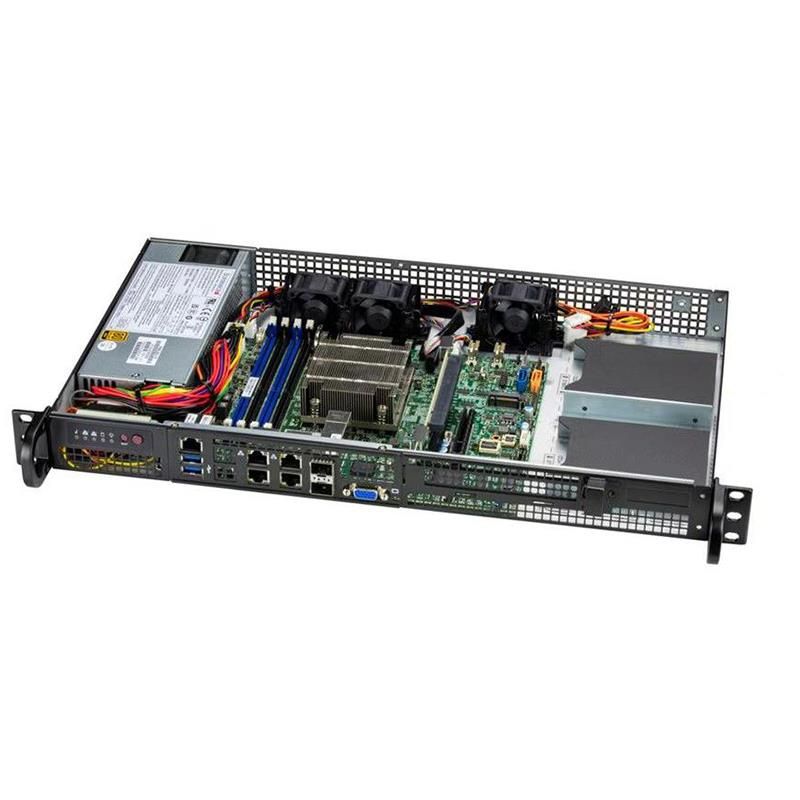

SYS-510D-4C-FN6P-02-G1
1U Compact systems used for Retail Application, Firewall, Gateway, uCPE
• Single Intel Xeon D-1718T (4C/2.6GHz) CPU
• 16GB DDR4-3200 memory
• 1x 960GB M.2 NVMe SSD
• 4 GbE and dual 25G SFP28 for networking
• 1x 200W Gold Level power

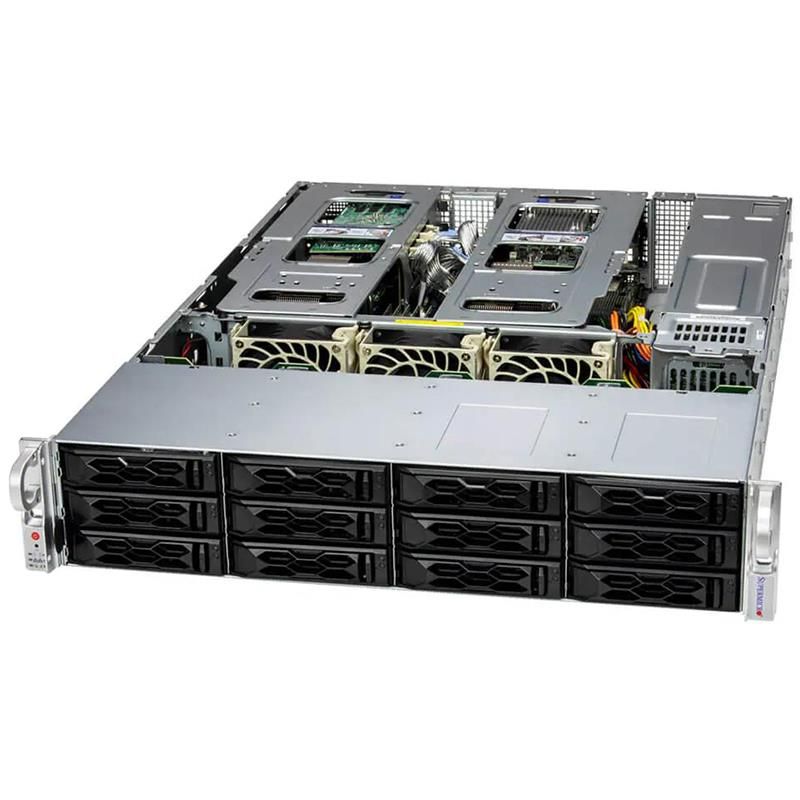

SYS-621C-TN12R-02-G1
2U DP CloudDC server used for Cloud Computing, Data Center Applications
• Dual Intel Xeon 4516Y+ (24C/2.2GHz) CPU
• 1TB DDR5-5600 memory
• 1x 240GB SATA
• Dual 1GbE RJ45 for networking
• 2x 1200W Titanium Level
SYS-A21GE-NBRT-G1
10U DP GPU Server used for Large-scale AI training, LLMs, generative AI, and inferencing
• Dual Intel Xeon 8570 (56C/2.1GHz) CPU
• NVIDIA HGX B200 8-GPU
• 3TB DDR5-4800 memory
• 2x 1.92TB M.2 NVMe SSD
• 8x 3.8TB U.3 NVMe SSD
• 8x Single 400G NDR/ETH OSFP, 1x NVIDIA BlueField-3 DPU 200Gb/s
• 6x 5250W Redundant (3+3) Titanium Level power

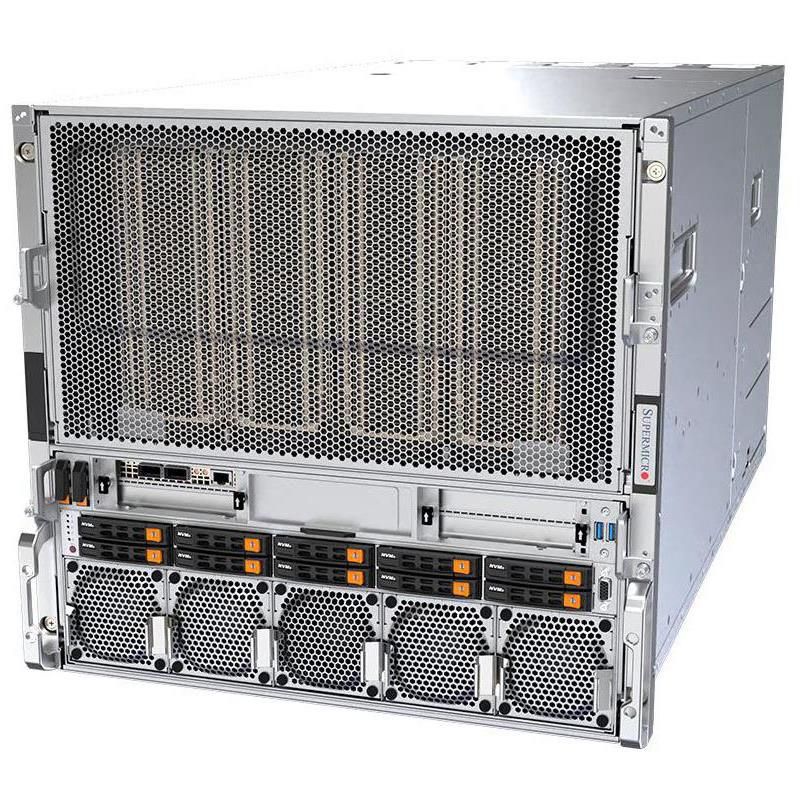

SYS-A22GA-NBRT-G1
10U DP GPU Server used for Conversational AI/Deep Learning Training and Inference
• Dual Intel Xeon 6960P (72C/2.7GHz) CPU
• NVIDIA HGX B200 8-GPU
• 2.3TB DDR5-6400 memory
• 2x 1.92TB M.2 NVMe SSD
• 4x 1.9TB U.2 NVMe SSD
• 8x Single 400G NDR/ETH OSFP, 1x NVIDIA BlueField-3 DPU 200Gb/s
• 6x 5250W Redundant (3+3) Titanium Level power

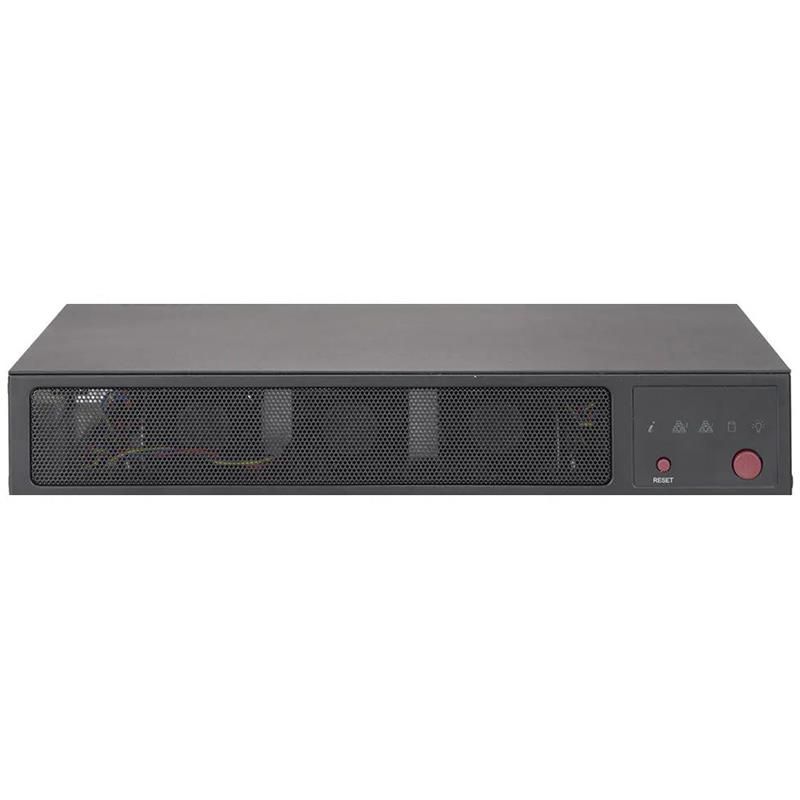

SYS-E300-13AD-02-G1
Mini-1U Embedded System used for AI Inference, Surveillance Security Server
• Single Intel Core i5-13500E (14C/1.5GHz) CPU
• 32GB DDR4-3200 memory
• 1x 960GB M.2 NVMe
• 1GbE RJ45 and 2.5GbE RJ45 for networking
• 1x 180W power supply
SYS-221H-TNR-02-G1
2U Hyper server used for AI Inference and Machine Learning, Cloud Computing Applications
• Dual Intel Xeon 5520+ (28C/2.20GHz) CPU
• Two Nvidia L40S
• 512GB memory
• 2x 1200W Power Supplies
