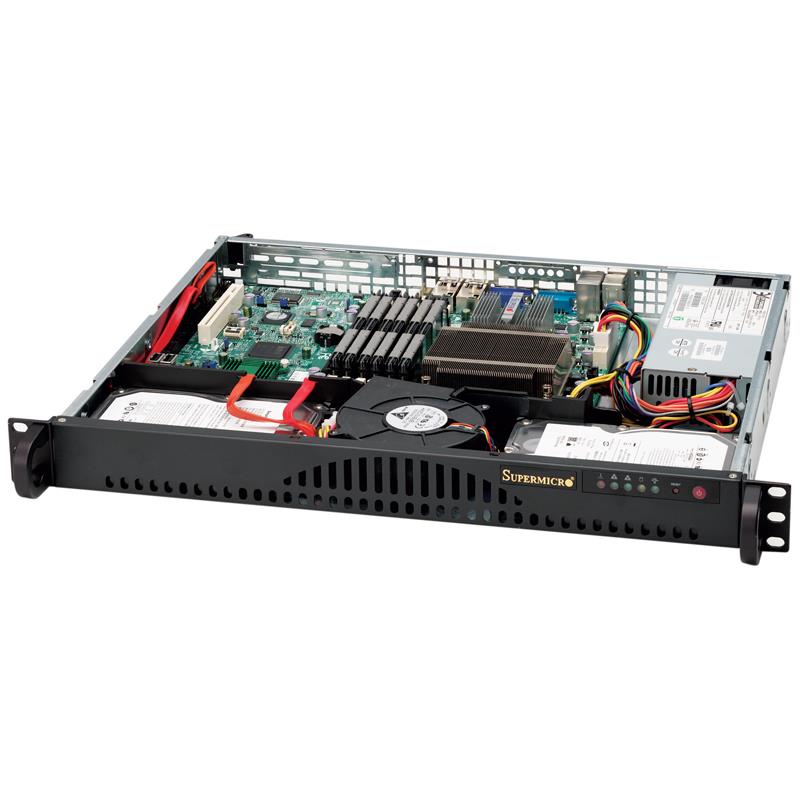

Supermicro CSE-512L-200B Server Chassis 1U Rackmount
• Support motherboard size: 12 x 9.6 ATX
• 2x 3.5 fixed drive bay; 1x 10cm blower Fan
• 1U chassis w/ 200W power supply w/ 20pin
• SAS or enterprise SATA HDD recommended
Rackmount 1U w/ 200W Power Supply, for Single Intel or AMD Processor - Includes : 2x 3.5in Internal Drive Bays - Rails Kit and Heatsink are optional (Black)
1. 14" Mini 1U chassis support for max. motherboard size - 12" x 9.6" ATX
2. 2 x 3.5" fixed drive bay SAS or enterprise SATA HDD only recommended
3. 1U 200W Multi-output power supply with 20pin, YM-5201D
4. 1 full-height & half-length expansion slot(s) (Riser Card Required)
5. 1 x 10cm blower
Extra Specifications for Supermicro CSE-512L-200B Server Chassis 1U Rackmount
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| CE/EMC | ||
| TUV/CB | ||
| UL/CUL | ||
| FCC class B | ||
| Product SKUs | ||
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. | |
| Form Factor | ||
| Form Factor | 14" Mini 1U chassis support for max. motherboard size - 12" x 9.6" ATX | |
| Processor Support | ||
| Processor Support | Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 1.7" (43 mm) | |
| Width | 16.8" (426 mm) | |
| Depth | 14" (356 mm) | |
| Gross Weight | 11 lbs (4.99 kg) | |
| Packaging (W x H x L) | 22" (559 mm) x 6.3" (160 mm) x 20" (508 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 1x Full-height, Half-length expansion slot(s) (Riser Card Required) | |
| Drive Bays | ||
| Drive Bays | SAS or enterprise SATA HDD only recommended | |
| 2x 3.5" fixed drive bay | ||
| Front Panel | ||
| Button | Power On/Off button | |
| System Reset button | ||
| LED | Power status LED | |
| HDD activity LED | ||
| 2 Network Activity LEDs | ||
| Fan Fail/System Over Heat LED | ||
| Systems Cooling | ||
| Fans | 1x 10cm blower | |
| Power Supply | ||
| Power Efficiency | 82% | |
| Total Output Power and Input | 200W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 192.8 x 76.2 x 40.3 mm | |
| Output Type | 20pin ATX | |
| -12V | Max: 0.8A / Min: 0A | |
| +12V | Max: 15A / Min: 1A (100Vac - 240Vac) | |
| +5V | Max: 16A / Min: 0.3A | |
| +3.3V | Max: 17A / Min: 0.5A | |
| +5Vsb | Max: 2A / Min: 0.1A | |
| Certification | N/A | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
