- Supermicro AS-2014TP-HTR A+ 2U Barebone Single AMD EPYC 7003/7002 Series Processor
Supermicro AS-2014TP-HTR A+ 2U Barebone Single AMD EPYC 7003/7002 Series Processor
• Compute Intensive Applications
• HPC, Data Center, Enterprise Server
• Hyperscale / Hyperconverged
Multi-Node 2U Barebone A+ SuperServer Rackmount, Per Node: Single AMD EPYC 7002/7003 Series, System on Chip, Up to 2TB in 8 DIMM Slots, 3x Hot-swap 3.5in SATA3 drive bays, Flexible Networking support via SIOM, IPMI 2.0, 2000 Redundant Power Supply (CSE-827HQ+-R2K04BP2 + H12SST-PS) - AS -2014TP-HTR
This product is no longer available.
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
Extra Specifications for Supermicro AS-2014TP-HTR A+ 2U Barebone Single AMD EPYC 7003/7002 Series Processor
| Motherboard (per Node) | ||
| Motherboard (per Node) | Super H12SST-PS | |
| Processor/Chipset (per Node) | ||
| CPU | Socket SP3 | |
| Supports CPU TDP / cTDP up to 280W * | ||
| Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
| Cores | Up to 64 Cores | |
| System Memory (per Node) | ||
| Memory Capacity | 8 DIMM slots | |
| 8-channel memory bus | ||
| Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs | ||
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| Memory Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices (per Node) | ||
| Chipset | System on Chip | |
| Storage | SATA3 (6Gbps) via AMD EPYC | |
| Network Controllers | Barebones and Complete System must have at least one SIOM installed per node | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |
| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Provided via SIOM (optional) | ||
| USB | 2 USB 3.0 ports (rear) | |
| 1 USB 2.0 port (Type A) | ||
| Video | 1 VGA port | |
| DOM | 1 Super DOM (Disk on Module) port | |
| Others | 1 TPM 2.0 header | |
| 2 COM ports (header) | ||
| System BIOS (per Node) | ||
| BIOS Type | AMI 128Mb SPI Flash ROM | |
| Management (per Node) | ||
| Software | IPMI 2.0 | |
| KVM with dedicated LAN | ||
| SSM , SUM | ||
| SuperDoctor® 5 | ||
| Watch Dog | ||
| Power Configurations | ACPI / APM Power Management | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-827HQ+-R2K04BP2 | |
| Dimensions and Weight | ||
| Width | 17.25" (438mm) | |
| Height | 3.47" (88mm) | |
| Depth | 30.5" (774mm) | |
| Package | 26.4" (W) x 11.2" (H) x 39.8" (D) | |
| Weight | Net Weight: 54.5 lbs (24.7 kg) | |
| Gross Weight: 85 lbs (38.6 kg) | ||
| Available Colors | Black | |

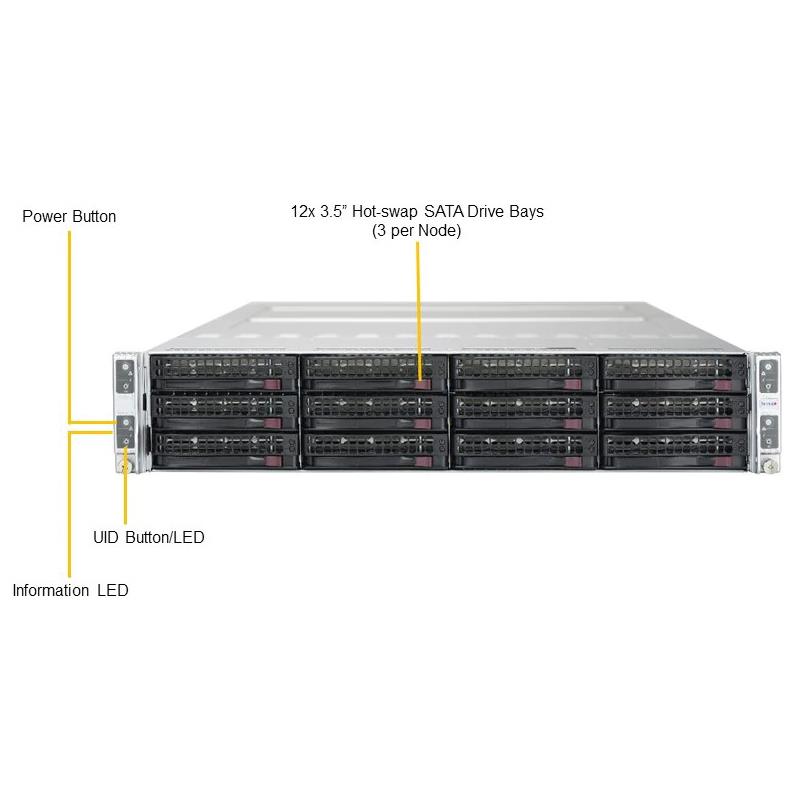

| Front Panel (per Node) | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Power status LED | |
| HDD activity LED | ||
| Network activity LEDs | ||
| Universal Information (UID) LED | ||
| Expansion Slots (per Node) | ||
| PCI-Express | 2 PCI-E 4.0 (x16) Low-profile slots | |
| 1 SIOM card support (must be assembled/integrated with SIOM) | ||
| M.2 | Key: M-key | |
| Interface: 4 SATA/PCI-E 4.0 x4 | ||
| Form Factor: 2280, 22110, 2260, 2242 | ||
| Drive Bays (per Node) | ||
| Hot-swap | 3 Hot-swap 3.5" SATA3 drive bays | |
| System Cooling | ||
| Fans | 4 Heavy duty 8cm PWM fans | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W/1800W/1980W/2000W | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz | |
| 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only) | ||
| 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz | ||
| +12V | Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only) | |
| Max: 83.3A / Min: 0A (100-127 Vac) | ||
| Max: 150A / Min: 0A (200-220 Vac) | ||
| Max: 165A / Min: 0A (220-230 Vac) | ||
| Max: 166.7A / Min: 0A (230-240 Vac) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Temperature: 10°C ~ 30°C (50°F ~ 85°F) All CPU SKUs supported 10°C ~ 35°C (50°F ~ 95°F) See Note * | ||
| Product SKUs | ||
| Product SKUs | A+ Server 2014TP-HTR | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00043-0N | $ 26.00 | 0 | Black Hot-swap gen 4 3.5" to 2.5" HDD tray | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| TPM security module | AOM-TPM-9655V | $ 43.00 | 0 | TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF; | ||
| TPM security module | AOM-TPM-9665V | $ 43.00 | 0 | TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; | ||
| SIOM | - | 0 | Supermicro SIOM solutions [Details] |
