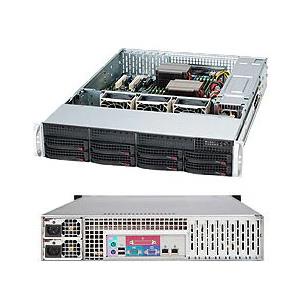

Supermicro CSE-825TQC-R802LPB 2U Rackmount 800W Power Supply

Equipped with 800W Redundant Power Supply
Can be placed in a rack for secure storage and use
Features eight slots for SAS3 and SAS/SATA drives
SC825 chassis comes with a 2U SAS/SATA backplane

2U Rackmount 800W Redundant Titanium Power Supply, Optimized for 13.68 x 13, E-ATX 12in x 13in, ATX 12 x 10in motherboards, support single and dual Intel / AMD processors, Includes: 8x 3.5in hot-swap drive bay and 2x 3.5in fixed drive bay, 7x Low Profile Slots, (CSE-825TQC-R802LPB)

1. 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
2. 8 x 3.5" hot-swap SAS3/SATA drive bay, 2 x 3.5" fixed drive bay
3. 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
4. 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
5. 7 low-profile expansion slot(s)
6. 3 x 80mm Hot-swap PWM Fans

Extra Specifications for Supermicro CSE-825TQC-R802LPB 2U Rackmount 800W Power Supply

System Monitoring
System Monitoring	Chassis intrusion switch
Power Supply
Certification	Titanium Certified
Power Efficiency	96%
Total Output Power and Input	800W with Input 100 - 240Vac
	800W with Input 200 - 240Vdc
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	336 x 76 x 40 mm
Output Type	Backplanes (gold finger)
+12V	Max: 66A / Min: 0A (100Vac - 240Vac)
	Max: 66A / Min: 0A (200Vdc - 240Vdc)
+5Vsb	Max: 4A / Min: 0A
Power Distributor	-12V Max: 0.6A
	+3.3V Max: 24A
	+5V Max: 30A
	PDB-PT825-8824
	O/P: 12V/75
Product SKUs
Product SKUs	CSE-825TQC-R802LPB
Form Factor
Form Factor	2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
Processor Support
Processor Support	Dual and Single Intel® and AMD processors
Dimensions
Height	3.5" (89 mm)
Width	17.2" (437 mm)
Depth	25.5" (647 mm)
Gross Weight	52 lbs (23.59 kg)
Net Weight	37 lbs (16.78 kg)
Packaging (W x H x L)	26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
Available Color	Black
Expansion Slots
Expansion Slots	7x Low-profile expansion slot(s)
Drive Bays
Drive Bays	2x 3.5" fixed drive bay
	8x 3.5" hot-swap SAS3/SATA drive bay
Backplane
Backplane	8-Port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
Peripheral Drives
Peripheral Drives	Optional 1x slim DVD-ROM drive bay
	Optional 1x COM port tray
	Optional 2x USB 2.0 ports
	Optional 2x USB 3.0 ports
Front Panel
Button	Power On/Off button
	System Reset button
LED	Power status LED
	HDD activity LED
	2 Network Activity LEDs
	System Information LED
	Power Fail LED
Systems Cooling
Fans	3x 80mm Hot-swap PWM Fans
Operating Environment (System)
Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
Regulatory (Power Supply)
Power Supply Safety / EMC	CCC
	BSMI
	CE/EMC
	FCC class A
	TUV/CB
	UL/CUL

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro CSE-825TQC-R802LPB 2U Rackmount 800W Power Supply

$ 1,150.00$ 1,150.001150.0USD

$ 1,150.00
