| Motherboard |
| Motherboard | Super X10DRFF |
| Processor/Cache |
| CPU | Dual Socket R3 (LGA 2011) |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * |
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | † BIOS version 2.0 or above is required |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| System Memory |
| Memory Capacity | 8x 288-pin DDR4 DIMM slots |
| Up to 1TB † ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices |
| Chipset | Intel® C612 chipset |
| SATA | SATA3 (6Gbps) with RAID 0, 1 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Dual Intel® i210 Single Port Gigabit Ethernet |
| Graphics | ASPEED AST2400 BMC |
| Input / Output (per node) |
| SATA | 2x SATA3 (6Gbps) ports |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports |
| 1x RJ45 Dedicated IPMI LAN port |
| USB | 2x USB 3.0 ports |
| VGA | 1x VGA port |
| Chassis |
| Form Factor | 4U Rackmount |
| Model | CSE-F418IL-R1K62BP |
| Dimensions and Weight |
| Width | 17.63" (448mm) |
| Height | 6.96" (177mm) |
| Depth | 29" (737mm) |
| Package | 28.3" (W) x 15.0" (H) x 42.4" (D) |
| Weight | Net Weight: 150 lbs (68.04 kg) |
| Gross Weight: 200 lbs (90.71 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| UID button |
| LEDs | Power status LED |
| 2x Network activity LEDs |
| Expansion Slots (per node) |
| PCI-Express | 1x PCI-E 3.0 x16 Low-profile via riser card |
| Drive Bays (per node) |
| Fixed | 2x 3.5" Fixed SATA HDD trays |
| System Cooling |
| Fans | 8x 8cm 9.5K RPM Rear Fans |
| Power Supply |
| Power Supply | 1620W high-efficiency redundant power supply w/ PMBus |
| AC Input | 1000W Output @ 100-120V, 12-10A, 50-60Hz |
| 1200W Output @ 120-140V, 12-10A, 50-60Hz |
| 1620W Output @ 180-240V, 10.5-8A, 50-60Hz |
| DC Output | 1000W: +12V/84A; +5Vsb/4A |
| 1200W: +12V/100A; +5Vsb/4A |
| 1620W: +12V/150A; +5Vsb/4A |
| Certification | Platinum Certified |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| USB Keyboard support |
| Plug and Play (PnP) |
| UEFI 2.3.1 |
| PCI 2.3 |
| ACPI 1.0 / 2.0 / 3.0 / 4.0 |
| APM 1.2 |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

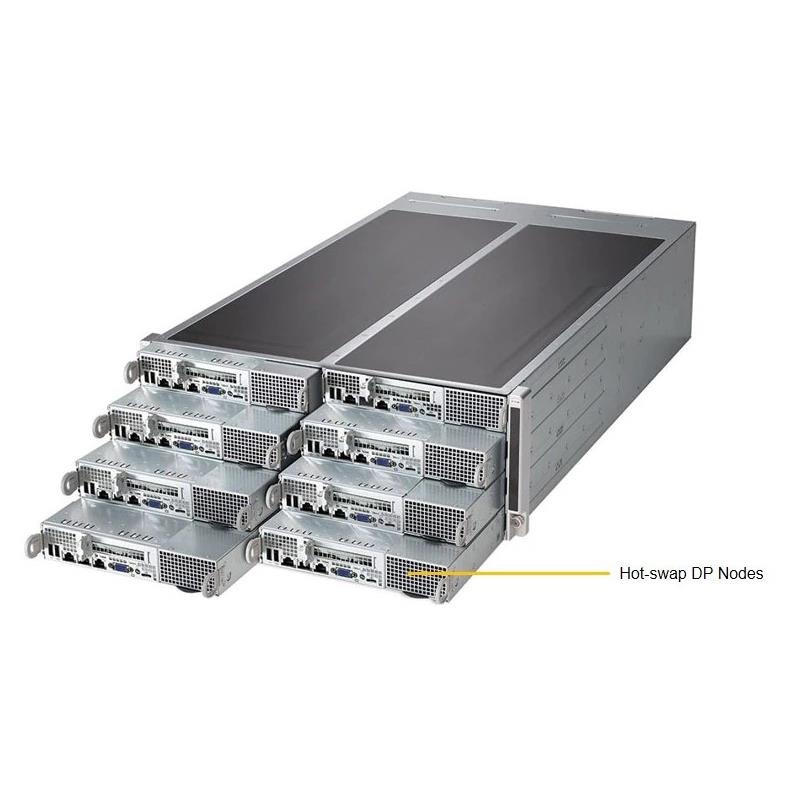

| Product SKUs | SuperServer F618R3-FT (Black) |
