- Supermicro AS-1124US-TNR A+ Server 1U Barebone Dual AMD EPYC 7003/7002 Series Processors

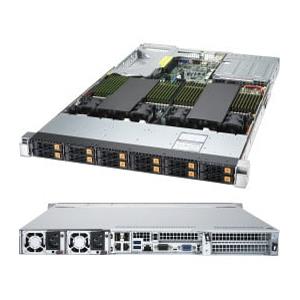

Supermicro AS-1124US-TNR A+ Server 1U Barebone Dual AMD EPYC 7003/7002 Series Processors
• Virtualization
• Cloud Computing
• High End Enterprise Server
Barebone 1U Rackmount SuperServer, Supports Dual Socket SP3, Supporting AMD EPYC 7003/7002 Series Processors, Up to 8TB in 32 DIMM slots, SDRAM, System on Chip (SoC), On-Board: Controller SATA3 (6 Gbps) ports, NVMe (16GT/s), 12x 2.5in U.2 NVMe Drive Bays, Optional Networking, 1x RJ45 Dedicated IPMI LAN port, 1200W Power Supply - (CSE-119UHTS-R1K22HP-A + H12DSU-iN) - AS -1124US-TNR
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs & at least 24/32 cores per CPU is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 storage drive.
1. Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
3. Expansion slots: Must bundle with optional Ultra Riser Card 2 PCI-E 4.0 x16 (FH, 9.5"L), 1 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x16 (internal proprietary LP slot) * [ Details ] * Ultra Riser Card must be bundled in order to enable this slot
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. Flexible Ultra Riser/Network options – see Optional Parts List
6. Drive Bays: 12 Hot-swap 2.5" U.2 NVMe drive bays or SATA3/SAS3 (via optional SAS kit)
7. 1200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1124US-TNR A+ Server 1U Barebone Dual AMD EPYC 7003/7002 Series Processors
| Motherboard | ||
| Motherboard | Super H12DSU-iN | |
| Processor/Cache | ||
| CPU | Socket SP3 | |
| Supports CPU TDP up to 280W * | ||
| Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
| Cores | Up to 64 Cores | |
| Note | * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory Capacity | 8-channel memory bus | |
| 32 DIMM slots | ||
| Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM | ||
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | System on Chip (SoC) | |
| SATA | SATA3 (6Gbps) | |
| NVMe | NVMe (16GT/s) | |
| Network Connectivity | Flexible Ultra Riser/Network options – see Optional Parts List | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| NVMe | 12 NVMe ports (default) | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Flexible Ultra Riser/Network options – see Optional Parts List | ||
| USB | 4 USB 3.0 ports (2 rear + 1 Type A + 1 front) | |
| VGA | 1 VGA port | |
| SAS | 12 SAS3 ports support via optional SAS kit | |
| SATA | 12 SATA3 ports support via optional kits | |
| Others | 1 COM port (rear) | |
| 2 SATA DOM power connectors | ||
| TPM 2.0 header | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI Power Management | |
| Power-on mode control for AC power loss recovery | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-119UHTS-R1K22HP-A | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29.1" (739mm) | |
| Package | 7.8" (H) 23.66" (W) 37.13" (D) | |
| Gross Weight | 48 lbs (21.8 kg) | |
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System UID button | ||
| LEDs | Power LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| UID LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 4.0 x16 (FH/HL, 9.5"L) | |
| 1 PCI-E 4.0 x16 (LP) | ||
| 1 PCI-E 4.0 x16 (internal proprietary LP slot) * | ||
| Drive Bays | ||
| Hot-swap | 12 Hot-swap 2.5" U.2 NVMe drive bays | |
| Backplane | ||
| HDD Backplane | Supports 12 NVMe or 12 SAS3 HDD or 12 SATA3 | |
| System Cooling | ||
| Fans | 8 Heavy duty fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud | |
| Power Supply | ||
| Power Supply | 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 127Vac | |
| 1200W: 200 – 240Vac | ||
| 1200W: 200 -240Vdc (for CCC only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz | |
| 200-240Vac / 7.5 - 6A / 50-60Hz | ||
| 200-240Vdc / 7.5 - 6A (for CCC only) | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 100A / Min: 0A (200-240Vac) | ||
| Max: 100A / Min: 0A (200-240Vdc) | ||
| +12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C ~ 30°C (50°F ~ 86°F) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 1124US-TNR (Black) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Ultra Riser Card Kit(s) | AOC-URG4N4 (no LAN)* | 0 | 1U Ultra Riser with 1 PCI-E 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS | |||
| Ultra Riser Card Kit(s) | AOC-URG4N4-m2TS | 0 | 1U Ultra Riser 2-port 25GbE SFP28, based on Mellanox CX-6 LX, with 1 PCI-E 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS | |||
| Ultra Riser Card Kit(s) | AOC-URG4N4-B2XT** | 0 | 1U Ultra Riser 2-port 10GbE RJ45, Broadcom BCM57416, 1 PCI-E 4.0 x16 (internal), 4 NVMe ports (2x SlimSAS x8) | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8e & | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA | |||
| Storage Control Card and Cable(s) | 2x CBL-SAST-0531 | 0 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s | |||
| Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i & | 0 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s | |||
| Storage Control Card and Cable(s) | 2x CBL-SAST-0531 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR/16DD & | 0 | MegaRAID SAS 9361-16i | |||
| Storage Control Card and Cable(s) | 2x CBL-SAST-0531 | 0 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s | |||
| Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | 16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP | |||
| Storage Control Card and Cable(s) | AOC-SAS3-9361-16I & | 0 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s | |||
| Storage Control Card and Cable(s) | 3x CBL-SAST-0531 | 0 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS | |||
| Storage Control Card and Cable(s) | (support up to 12 SAS3 HDD) | 0 | Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS | |||
| Storage Control Card and Cable(s) | AOC-S3616L-L16IT & | 0 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS | |||
| Storage Control Card and Cable(s) | 3x CBL-SAST-0531 | 0 | Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS | |||
| Storage Control Card and Cable(s) | (support up to 12 SAS3 HDD) | 0 | 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS | |||
| Storage Control Card and Cable(s) | AOC-S3808L-L8iT & | 0 | Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS | |||
| Storage Control Card and Cable(s) | 1x CBL-SAST-1264-100 | 0 | 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS | |||
| Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS | |||
| Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD & | 0 | - | |||
| Storage Control Card and Cable(s) | 1x CBL-SAST-1264-100 | 0 | - | |||
| Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | - | |||
| Storage Control Card and Cable(s) | AOC-S3816L-L16iT & | 0 | - | |||
| Storage Control Card and Cable(s) | 2x CBL-SAST-1264-100 | 0 | - | |||
| Storage Control Card and Cable(s) | (support up to 12 SAS3 HDD) | 0 | - | |||
| Storage Control Card and Cable(s) | AOC-S3916L-H16iR-32DD & | 0 | - | |||
| Storage Control Card and Cable(s) | 2x CBL-SAST-1264-100 | 0 | - | |||
| Storage Control Card and Cable(s) | (support up to 12 SAS3 HDD) | 0 | - | |||
| M.2 by AOC | AOC-SLG3-2M2 | $ 54.00 | 1 | LP, PCIe3 x8, Dual port NVMe M.2 carrier | ||
| M.2 by AOC | AOC-SLG3-2H8M2 | $ 188.00 | 1 | 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS | ||
| HDD Tray for SAS/SATA | MCP-220-00187-0B | $ 23.50 | 1~12 | Tool-less black hot-swap 2.5" drive tray (red tab) | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | $ 279.00 | 0 | CacheVault for Broadcom 3108 | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | $ 279.00 | 0 | CacheVault for Broadcom 3108 | ||
| CacheVault(s) | BTR-CVPM05 | $ 264.00 | 0 | Cache Vault for 3908/3916 controller | ||
| CacheVault(s) | BTR-CVPM05 | $ 264.00 | 0 | Cache Vault for 3908/3916 controller | ||
| TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665H | $ 43.00 | 0 | Horizontal TPM using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| SATADOM | SSD-DM128-SMCMVN1 | $ 147.00 | 0 | SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH | ||
| SATADOM | SSD-DM480-SMCMVN1 | 0 | SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS | |||
| SATADOM | SSD-DM064-SMCMVN1 | $ 89.50 | 0 | SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
| SATADOM | SSD-DM032-SMCMVN1 | $ 75.50 | 0 | SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
| SATADOM | MEM-IDSAVS4-032G | 0 | SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725) | |||
| SATADOM | MEM-IDSAVM8A-128G | 0 | SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411) | |||
| SATADOM | MEM-IDSAVM8A-256G | 0 | SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411) | |||
| SATADOM | MEM-IDSAVE1-064G | 0 | SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i) | |||
| SATADOM | MEM-IDSAVS3-032G | 0 | SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710) | |||
| SATADOM | MEM-IDSAVT1-256G | 0 | IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
