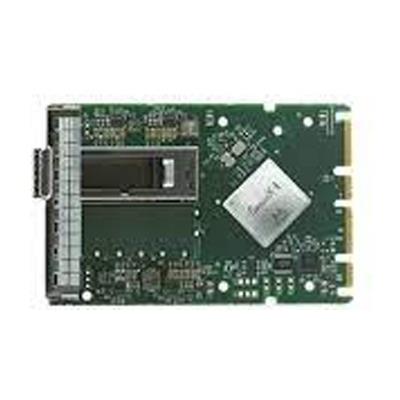

Supermicro AOC-653435A-HDAE Infiniband / VPI Adapter Card Open Core Protocol (OCP 3.0) Single QSFP56 Connector HDR IB and 200GbE Data Rate

Single QSFP56 InfiniBand and Ethernet
ConnectX-6 VPI Cards for OCP Spec 3.0
Tested and certified with PCIe 3.0 servers
Features Ejector Latch Retention Mechanism

200GbE Infiniband / VPI Adapter Card, ConnectX-6 VPI With Host Management, Open Core Protocol (OCP 3.0) Provides Single-port QSFP56, PCIe 4.0 x16 Host Interface, Data Transmission Rate: HDR IB and 200GbE, Ejector Latch, (AOC-653435A-HDAE)

ConnectX-6 VPI integrated circuit device for OCP Spec 3.0

This adapter connectivity provides the highest-performing low latency and most flexible interconnect solution for PCI Express Gen 3.0/4.0 servers used in Enterprise Data Centers and High-Performance Computing environments.

Extra Specifications for Supermicro AOC-653435A-HDAE Infiniband / VPI Adapter Card Open Core Protocol (OCP 3.0) Single QSFP56 Connector HDR IB and 200GbE Data Rate

Main Specifications
Device Type	Infiniband / VPI Adapter Card
Form Factor	Open Core Protocol (OCP 3.0)
Interface (Bus) Type	PCIe 4.0 x16
Dimensions (WxDxH)	2.99 in. x 4.52 in (76.00mm x 115.00mm)
InfiniBand	IBTA v1.3
Type	Ejector Latch
Networking
Port Type	200 Gigabit QSFP56 x 1
Connectivity Technology	Wired
Protocols	Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
Data Transfer Rate	Ethernet: 1/10/25/40/100/200 Gb/s
	InfiniBand: SDR/DDR/QDR/FDR/EDR/HDR100/HDR
Expansion / Connectivity
Interfaces & Connections	1 x 200Gb Ethernet - QSFP56 InfiniBand and Ethernet (copper and optical)
Miscellaneous
Environmental Compliance	RoHS Compliant

Warranty:	3 years, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Mellanox
Type of Support:	FULL
Phone No.:	408-916-0055
URL:	Click here for Manufacturer Website

Supermicro AOC-653435A-HDAE Infiniband / VPI Adapter Card Open Core Protocol (OCP 3.0) Single QSFP56 Connector HDR IB and 200GbE Data Rate

$ 1,367.00$ 1,367.001367.0USD

$ 1,367.00
