- Supermicro SYS-531A-I UP Workstation Mid-Tower Single Intel Xeon W-3400/W-2400 Processors

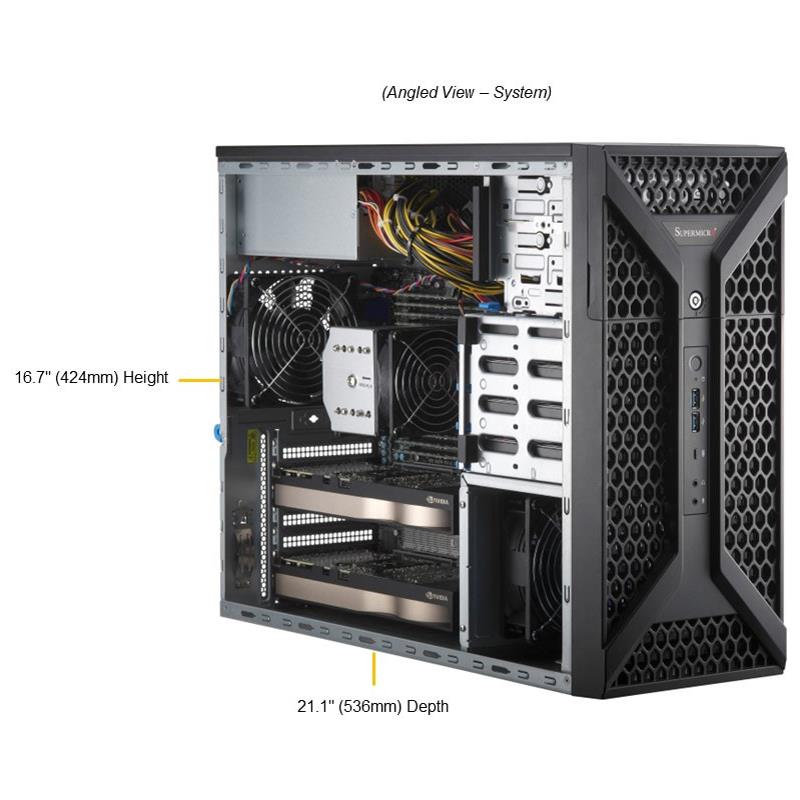

Supermicro SYS-531A-I UP Workstation Mid-Tower Single Intel Xeon W-3400/W-2400 Processors
• 2D/3D Content Creation
• VR Content Development
Barebone Mid-Tower SuperWorkstation, Supports Single Socket E (LGA-4677), Supporting Intel Xeon W-2400/W-2400 Processors, Supports up to 250W TDP CPUs (Air Cooled). System on Chip, Up to 1TB in 8 DIMM slots, R/LRDIMM, On-Board: Intel W790 Controller for 6 SATA3 (6 Gbps) Ports, RAID 0, 1, 5, 10, 4x 3.5in SATA Drive Bays, M.2 2x PCIe 5.0 x4, 2x 5.25in Drive Bays, Network Connectivity : 1x 1GbBaseT, 1x 10GbBaseT, 1200W Power Supply - (SYS-531A-I + X13SRA-TF)
1. Socket E (LGA4677) support Intel® Xeon® W-2400 processors
2. Intel® W790
3. 8 DIMMs
4. 1x 1GbBaseT, 1x 10GbBaseT
5. 4 3.5" SATA3 drive bays; ; 2 M.2 NVMe
6. 1 120 mm Fan(s) ; 1 120 mm Fan(s)
7. 1200W Power Supplies Platinum Level (92%+)
Extra Specifications for Supermicro SYS-531A-I UP Workstation Mid-Tower Single Intel Xeon W-3400/W-2400 Processors
| Product SKUs | ||
| Product SKUs | SYS-531A-I | |
| Motherboard | ||
| Motherboard | Super X13SRA-TF | |
| Processor | ||
| CPU | Intel® Xeon® W-2400 processors | |
| Single Socket E (LGA4677) | ||
| System Memory | ||
| Memory | Memory Capacity: 8 DIMM slots | |
| Up to 1TB: 8x 128 GB DRAM | ||
| Memory Type: 4800MHz ECC DDR5 RDIMM / LRDIMM | ||
| Memory Voltage | 1.1 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | 1x 1GbE BaseT with Intel® I210-AT | |
| 1x 10GbE BaseT with Marvell AQC113 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| USB | 1 USB 3.2 Gen 2x2 port(s) (1 rear) | |
| 2 USB 3.2 Gen 1 port(s) (2 front Type A) | ||
| 5 USB 3.2 Gen 2 port(s) (1 front Type C; 4 rear) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 COM) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| Management | ||
| Software | Watch Dog | |
| SuperDoctor 5 | ||
| IPMI 2.0 | ||
| SUM | ||
| SPM | ||
| Power Configurations | ACPI 6.0 | |
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT | |
| Chassis | ||
| Form Factor | Mid-Tower | |
| Model | CSE-735D4-1K26B | |
| Dimensions and Weight | ||
| Height | 16.7" (424mm) | |
| Width | 7.6" (193mm) | |
| Depth | 20.68" (525.3mm) | |
| Package | 21.38" (H) x 11.97" (W) x 25.28" (D) | |
| Weight | Net Weight: 27 lbs (12.25 kg) | |
| Gross Weight: 30 lbs (13.61 kg) | ||
| Available Color | black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | HDD activity LED | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x4 slot(s) | |
| 3 PCIe 5.0 x16 slot(s) | ||
| Drive Bays / Storage | ||
| Drive Bays | 4x 3.5" SATA drive bays | |
| M.2 | 2x PCIe 5.0 x4 | |
| Peripheral Bays | 2x 5.25" drive bays | |
| System Cooling | ||
| Fans | 1x 120mm Fan(s) | |
| 1x 120mm Fan(s) (optional) | ||
| Power Supply | ||
| Dimension (W x H x L) | 150 x 86 x 185 mm | |
| AC Input | 100-240Vac / 8A Max / 50-60Hz | |
| Output Type | Modular Cable Output | |
| Certification | Platinum Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13SRA-TF | 1 | Super X13SRA-TF Motherboard | |
| Motherboard / Chassis | CSE-735D4-1K26B | 1 | Mid-Tower Chassis | |
| Cable | CBL-0044L | 6 | 7pin SATA (STR to STR), 57.5cm, Flat, PBF | |
| Cable | CBL-0082L | 2 | Y SPLIT SATA POWER ADAPTER, PB FREE | |
| Cable | CBL-PWCD-0160-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-0453L | 1 | USB3.0 Internal Cable-60cm(19pin Female to 19pin Female) | |
| Cable | CBL-CDAT-0560 | 1 | Audio Cable HD / AC97 -80cm, 28AWG,HF,RoHS/REACH,PBF | |
| Cable | CBL-CDAT-0680-55 | 1 | NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS | |
| Cable | CBL-CUSB-0999-45 OR | 1 | USB3.2 Gen2X2 TypeC INT 20M to TypeC 24F,45CM,30u",RoHS | |
| Cable | CBL-CUSB-0999-45M | 0 | USB3.2 Gen2X2 TypeC INT 20M to TypeC 24F,45CM,30AWG,RoHS | |
| Parts | MCP-260-00183-0B | 1 | STD I/O Shield for X13SRA-TF with EMI Gasket & Black Mylar | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-C0156L | 2 | M.2 Passive Heat Sink for Both 2280 & 22110 M.2 Type | |
| *Power Supply | PWS-1K26P-PQ | 1 | 1000W/1200W PS2 Multi output power supply with modular cable | |
| *Fan | FAN-0077L4-3 | 2 | 120x120x38 mm, 4.1K RPM, Rear Exhaust Fan for SC732,RoHS | |
| *Front Panel | FPB-FP735 | 1 | Front control board for CSE735,RoHS | |
| *Front Bezel | MCP-210-73503-0B | 1 | CSE-735D4 front brezel assembly - Black | |
| *Front Bezel | MCP-210-73504-0B | 1 | 735 front control I/O bezel |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| DVD Kit | CBL-SAST-0624 • | 1 | 70cm SATA Cable S-S 30AWG | |||
| DVD Kit | CBL-0082L • | 1 | Y SPLIT SATA POWER ADAPTER | |||
| DVD Kit | DVM-TEAC-DVDRW24-HBT | $ 125.00 | 1 | 5.25" HH 24X DVD-RW SATA DRIVE | ||
| Heatsink | SNK-P0090AP4 • | 1 | 4U Active High-Performance CPU Heat Sink | |||
| Mobile Rack | CSE-M14TQC | $ 186.50 | 1 | SAS3/SATA mobile rack for 4x 2.5" drives |
