Supermicro SYS-2028TP-HC1R-SIOM Twin Barebone Dual CPU, 4-Node

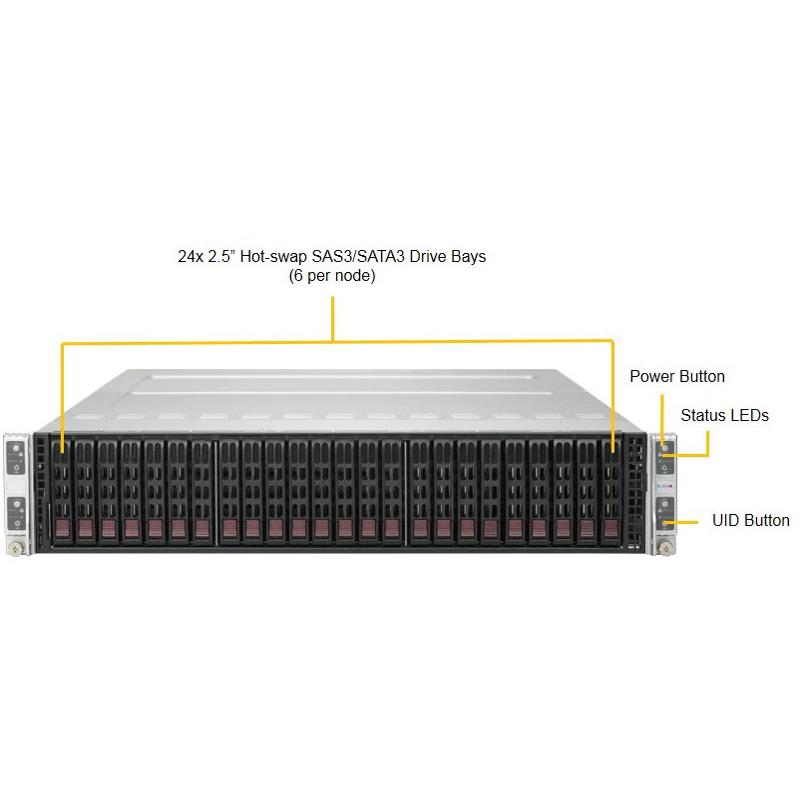

Server Rackmount 2U with Four Systems (Nodes) - Per Node : Socket 2011 R3 for Dual Intel Xeon E5-2600 v4/v3 family processors - Supports up to 2TB DDR4 ECC 3DS LRDIMM up to 2400MHz, in 16x 288-pin DIMM slots - On-Board (per Node) : Intel C612 chipset, LSI 3108 SAS3 12Gbps controller (RAID 0, 1, 5, 6, 10, 50, 60 support) / Optional SuperCap, IPMI 2.0, Must bundle with at least one SIOM network card, VGA - Includes (per Node) : 6x 2.5in Hot-swap SAS/SATA HDD Trays, 2x Riser Cards (RSC-P-6 and RSC-R1UTP-E16R), 2x Heatsinks (1x SNK-P0057PS and 1x SNK-P0047PSM) - System includes : 2000W Redundant 80 Plus Titanium or Platinum Power Supply (PWS-2K04A-1R or PWS-2K02P-1R), 4x MBD-X10DRT-PS Motherboards, and 1x SC217HQ+-R2K04B2 2U Chasssis (Black)
This product is no longer available.
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (LP), 1 SIOM card support
4. 1 Dedicated IPMI LAN port
5. 6 Hot-swap 2.5" SAS/SATA HDD Bays
6. Broadcom 3108 SAS3 controller (6 ports); RAID 0, 1, 5, 6, 10, 50, 60
7. 2000W Redundant Power Supplies Titanium Level (96%)
8. 1 SATA DOM
Extra Specifications for Supermicro SYS-2028TP-HC1R-SIOM Twin Barebone Dual CPU, 4-Node
| Motherboard (Four per System) | ||
| Motherboard (Four per System) | Super X10DRT-PS | |
| Processor/Cache (per Node) | ||
| CPU | Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | |
| Dual Socket R3 (LGA 2011) | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory (per Node) | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 512 ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices (per Node) | ||
| Chipset | Intel® C612 chipset | |
| SAS | Broadcom 3108 SAS3 (12Gbps) controller; RAID 0, 1, 5, 6, 10, 50, 60 support | |
| Optional SuperCap | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Barebones and Complete System must have at least one SIOM or network card installed per node | |
| Graphics | ASPEED AST2400 BMC | |
| Input / Output (per Node) | ||
| SAS | 6 SAS3 (12Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 ports total (2x rear) | |
| VGA | 1 VGA port | |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header (internal) | |
| Others | 1 SATADOM support on the motherboard | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-217HQ+-R2K04B2 | |
| Dimensions and Weight | ||
| Width | 17.25" (438mm) | |
| Height | 3.47" (88mm) | |
| Depth | 28.75" (730mm) | |
| Weight | Gross Weight: 90 lbs (40.9kg) | |
| Net Weight: 72 lbs (32.7 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| Expansion Slots (per Node) | ||
| PCI-Express | 1 PCI-E 3.0 (x16) Low-profile slot | |
| 1 PCI-E 3.0 (x8) Low-profile slot | ||
| 1 SIOM card support Note: Must bundle with Network Card | ||
| Drive Bays (per Node) | ||
| Hot-swap | 6 Hot-swap 2.5" SAS/SATA HDD trays | |
| System Cooling | ||
| Fans | 4x 8cm heavy duty PWM fans with optimal fan speed control | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 127Vac | |
| 1800W: 200 – 220Vac | ||
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 2000W: 200 – 240Vdc (UL/cUL only) | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz | |
| 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only) | ||
| 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz | ||
| +12V | Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only) | |
| Max: 83.3A / Min: 0A (100-127 Vac) | ||
| Max: 150A / Min: 0A (200-220 Vac) | ||
| Max: 165A / Min: 0A (220-230 Vac) | ||
| Max: 166.7A / Min: 0A (230-240 Vac) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 2028TP-HC1R-SIOM (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRT-PS | 4 | Super X10DRT-PS Motherboards | |
| Motherboard / Chassis | CSE-217HQ+-R2K04B2 | 1 | 2U Chassis | |
| Air Shroud | MCP-310-21703-0B | 4 | TwinPo 217HQ+/827HQ+ X10 plastic air shroud,RoHS/REACH | |
| Backplane | BPN-ADP-S3108L-H6IRP | 4 | LSI 3108, SAS 12Gbps (x6 internal) | |
| Backplane | BPN-SAS3-217HQ | 1 | 24-port 2U TwinPro^2 SAS3 CSE-217HQ (6 drives per node) backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-PWCD-0578 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Riser Card | RSC-P-6 | 4 | RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS | |
| Riser Card | RSC-R1UTP-E16R | 4 | 1U RHS TwinPro Riser card with one PCI-E x16 slot | |
| Heatsink / Retention | SNK-P0047PSM | 4 | 1U Passive Front CPU Heat Sink w/ a Middle Air Channel for X9, X10 2U Twin^2+ and Twin Pro^2 Series Servers | |
| Heatsink / Retention | SNK-P0057PS | 4 | 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-2K04A-1R | 2 | AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH | |
| Air Shroud | MCP-310-21703-0BorMCP-310-21702-0B | 4 | TwinPro 217HQ+/827HQ+ X10 plastic air shroudorTwinPro 217HQ+/827HQ+ X10 mylay air shroud | |
| Power Supply | PWS-2K04A-1R | 2 | 2000W Redundant Titanium Level Power Supplies |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| SuperCap Kit | BTR-CV3108-TP2 | $ 323.00 | 0 | Broadcom 3108 CacheVault kit for TwinPro | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 4 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 4 | DataCenter Management Package (per node license) |
