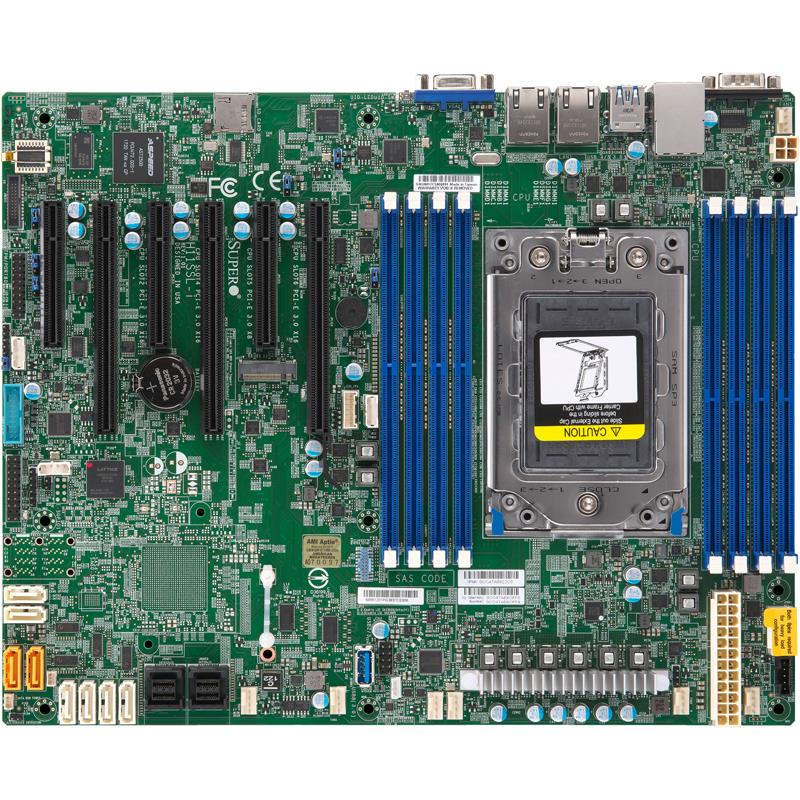

  2. Supermicro H11SSL-I Motherboard ATX Socket SP3 Single AMD EPYC 7001/7002 Series Processors
Supermicro H11SSL-I Motherboard ATX Socket SP3 Single AMD EPYC 7001/7002 Series Processors
Supermicro H11SSL-I Motherboard ATX Socket SP3 Single AMD EPYC 7000, up to 1TB DDR4 Reg ECC 2666MHz memory in 8 DIMM slots, 16 SATA3, 1 M.2, Dual Gigabit LAN ports, IPMI 2.0 + KVM, TPM 1.2
Supermicro H11SSL-I Motherboard ATX Socket SP3 Single AMD EPYC 7000, up to 1TB DDR4 Reg ECC 2666MHz memory in 8 DIMM slots, 16 SATA3, 1 M.2, Dual Gigabit LAN ports, IPMI 2.0 + KVM, TPM 1.2

Supermicro H11SSL-I Motherboard ATX Socket SP3 Single AMD EPYC 7001/7002 Series Processors

  • Compatible with single AMD EPYC 7001/7002 Series CPUs

  • Supports up to 1TB DDR4-2666 or 2TB DDR4-3200 ECC RAM

  • Offers 16 SATA3 ports, 1 M.2 (PCIe 3.0 x4), and dual Gigabit LAN ports

  • Includes 3 PCIe 3.0 x16 and 3 PCIe 3.0 x8 slots for high-performance add-ons

Motherboard ATX, Supports Single Socket SP3, Supporting AMD EPYC 7001/7002 Series Processors (Board revision 2x required), Up to 32-Core/Up to 64-Core (Board revision 2x required). Up to 2TB DDR4 Reg ECC 3200MHz memory in 8 DIMM slots, 16 SATA3, 1 M.2, Dual Gigabit LAN ports, IPMI 2.0 + KVM, TPM 1.2

$ 465.00$ 465.00465.0USD

$ 465.00

Option not available

PreOrder
3 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Extra Specifications for Supermicro H11SSL-I Motherboard ATX Socket SP3 Single AMD EPYC 7001/7002 Series Processors

    Main Specifications
    Device TypeMotherboard
    Form FactorATX
    Dimensions (WxDxH)12" x 9.6" (30.5cm x 24.4cm)
    Processor
    Compatible ProcessorsSingle AMD EPYC 7001/7002 series Processor (Board revision 2.x required)
    Compatible SocketSocket SP3
    Number of CoresUp to 32 Cores, Up to 64 Cores (Board revision 2.x required)
    On-Board Devices
    ChipsetSystem on Chip
    SATA/SASSATA3 (6 Gbps)
    IPMISupport for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, ASPEED AST2500 BMC
    Network Controllers2 1GbE LAN via Intel I210, 1 Realtek RTL8211E PHY (dedicated IPMI)
    VGA1 VGA port
    Others1 COM port (rear), 2 SATA DOM power connector, 1 TPM 2.0 header
    System Memory
    Memory Capacity8 DIMM slots, Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs, Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required), 8-channel memory bus
    Memory TypeDDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
    DIMM Sizes8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required)
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors, Detects double-bit errors (using ECC memory)
    Input / Output
    Video OutputASPEED AST2500 BMC
    SATA16 SATA3 (6 Gbps) ports
    LAN2 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port
    USB(s)5 USB 3.0 ports (2 rear + 2 via header + 1 Type A), 4 USB 2.0 ports (2 rear + 2 via header)
    Expansion / Connectivity
    Expansion Slots Total (Free)3 PCI-E 3.0 x8, 3 PCI-E 3.0 x16
    M.2Form Factor: 2280, 22110
    Interface: PCI-E 3.0 x4
    Key: M-key
    NamePart NumberPriceAdd to CartQty.Description
    I/O CableCBL-SAST-0699$ 29.000MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
    TPM security moduleAOM-TPM-9655V$ 43.000TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
    TPM security moduleAOM-TPM-9665V$ 43.000TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
